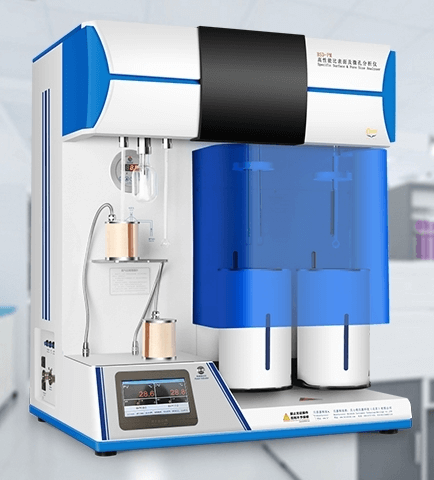

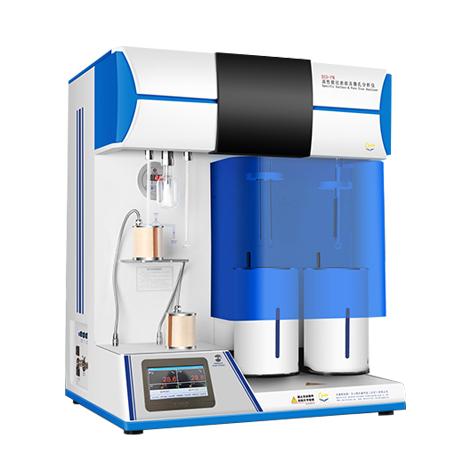

Lab Corrosive Gas Adsorption Analyzer with One Sample

Analysis Station

Product description:

a. Static method (off) attachment and other temperature lines;

b. NH3, SO2 and other strong corrosive gas adsorption;

c. CH4, C2H4, C2H2 and other alkane gas adsorption;

d. N2, CO2, AR and other conventional gas adsorption;

e. BET than the surface area and hole structure;

f. Suction (off) fever test;

g. iast competitive adsorption simulation;

Features

a. 2 sample pre -processed air -proofing stations, 1 sample analysis station, 1 P0 testing, 2 independent cold trap;

(Patent name: Calling pre -processing device of the static method ratio and aperture analyzer. Patent number: zl201120136943. 9)

b. The air offing system and the analysis system are fully operated independently and do not interfere with each other;

c. Automatization and intelligent operation throughout the process, no need to be manual, affinity live voice operation prompts;

d. BEST multi -road manifold module, Yingfukang leakage instrument is detected to ensure the vacuum and stability of the instrument;

e. Independent high -precision saturated steam pressure (P0) real -time test station;

(Patent name: Saturated steam pressure testing device of the staticmethod ratio and aperture analyzer. Patent number: zl201120136959.x)

f. Saturated vapor pressure pressure spiral P0 tube: uses a spiral P0 tube as a saturated steam pipe, connected to the instrument host, which can achieve liquid nitrogen temperature faster, so that the test saturated steam pressure is closer to the real value (with the imported thermal clip of the import of imports The effect is the same, solving the problem of 2%of the test results of the straight stainless steel P0 tube) and improve the test accuracy.

(Patent name: saturated vapor pressure spiral P0 tube and static method ratio surface and aperture analyzer. Patent number: ZL201620716311.2)

g. Double -cold trap protective vacuum system and molecular pump;

(Patent name: Static capacity method with dust removal and pollution devices ratio surface and pore diameter analyzer. Patent number: 201320045881.x)

h. Beast's exclusive air off -air outfilled filter bag to completely eliminate pollution to the internal structure of the instrument

i. The hardware anti -flying device that combines the original vortex dust reduction principle of Beast, which can achieve the dust filtration function without reducing the existing gas flow guidance, completely eliminating the pollution of the pink sample to the internal structure of the instrument, shorten the vacuum vacancy time shortening time shortening The effect is improved.

(Patent Name: Static method with a static method with the dust bag device of the air -off position. Patent number: ZL201620714986.3)

j. Qi -off treatment: 2.4.8 interview treatment stations can be selected, full -automatic program control, regular start, vacuum pump automatic start and stop, program heating, timing end, can achieve unmanned test and sample outfire treatment.

k. Intelligent self -inspection process, intelligently judge whether the sample tube is installed, whether the test tube jacket is tightened or not,

l. Automatically stamped: The instrument must have a liquid nitrogen cup automatic cover function, which can effectively reduce the volatilization of liquid nitrogen. At the same time, water vapor can avoid condensing and freezing on the Duva Cup mouth and sample tube.

(Patent name: Covering device and static method ratio surface and aperture analyzer. Patent number: ZL201420148358.40)

m. The detailed instrument runs log display and record, which can be accurate to seconds. The full experimental record can be traced;

n. Super stability, even if accidental power is disconnected or disconnected, the current data will not be lost, and the experiment can be resumed to continue;

o. The intelligent control mechanism of the "safe decline" of liquid nitrogen cup prevention, which completely avoids the risk of accidental decline of liquid nitrogen cups to explode the sample tube;

p. Intelligent dual -mode cheering volume control, improve experimental efficiency on the premise of ensuring the accuracy of the experiment;

q. 4th route independent air intake, which can support other gas adsorption of CO2, AR;

r. Large -capacity and small caliber Duwa bottle grows more than 140 hours. Continuous testing for 96 hours does not need to add liquid nitrogen;

s. The stability and accuracy of a number of patented technology guarantee instruments;

t. Double -station microphole test function can be selected;

u. Multi -component competition adsorbing IAST theoretical model: This theoretical model can be calculated based on the adsorption of the pure component's adsorption equivalent to obtain the theoretical prediction of the mixed component competition adsorption, which is used for multi -component competition adsorption;

Major function

a. Static method (off) attachment and other temperature lines;

b. NH3, SO2 and other strong corrosive gas adsorption;

c. CH4, C2H4, C2H2 and other alkane gas adsorption;

d. N2, CO2, AR and other conventional gas adsorption;

e. BET than the surface area and hole structure;

f. Suction (off) fever test;

g. iast competitive adsorption simulation;

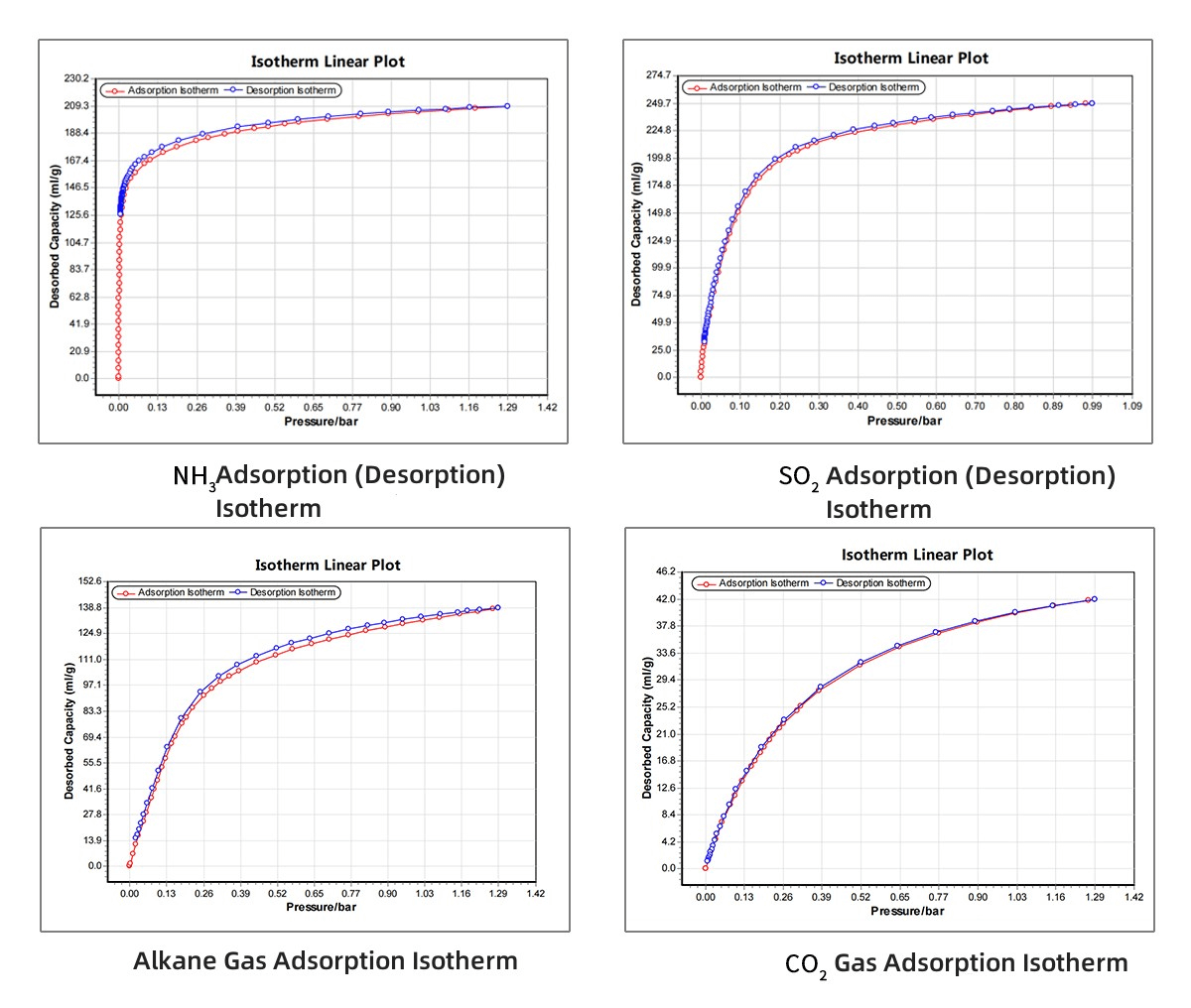

Testing report
