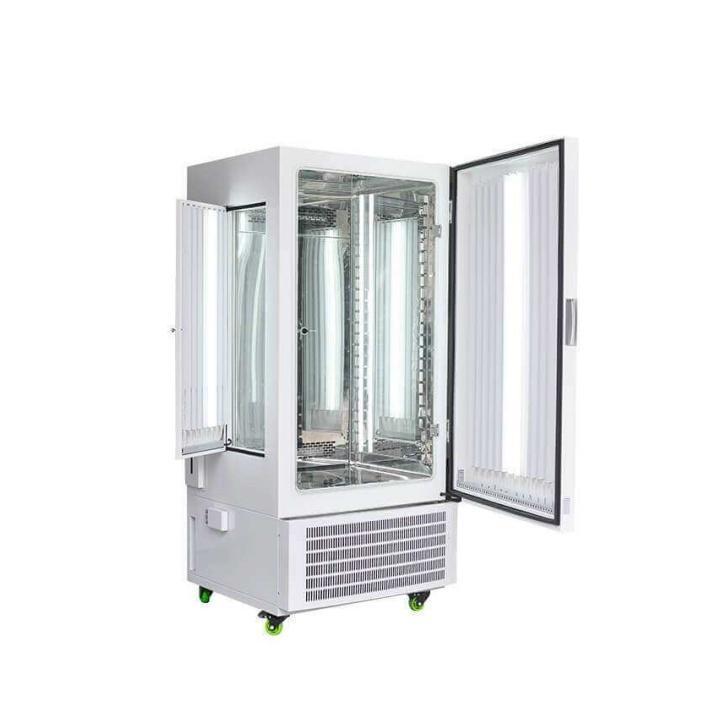

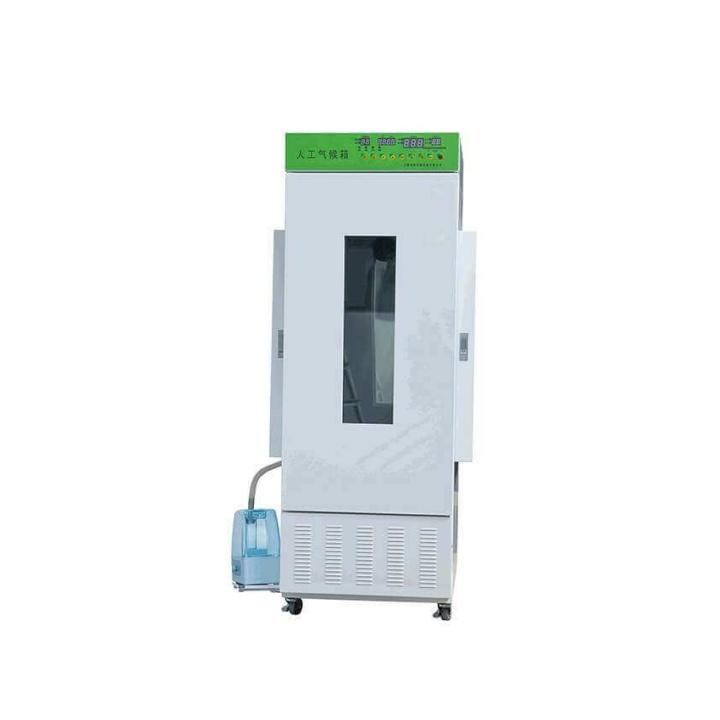

Lab Cnstant Temperature And Humidity Artificial Climate Chamber Optional CO2 Inlet And Remote Control System
This product is suitable for plant growth and tissue culture, seed germination, seedling raising, microbial cultivation test; feeding of small insects; BOD measurement of water quality monitoring, aging and life test of medicinal materials, wood, building materials, etc. Special test equipment for light, constant temperature and humidity.
Features
1. The box structure adopts curved surface arc design, with novel and beautiful appearance.
2. Adopt imported compressor without fluorine.
3. Mirror stainless steel liner with four semi-circular arc transitions, no need to use tools to remove the partition or partition in the cabinet, which is convenient for studio disinfection and cleaning
4. It can simulate the temperature change of day and night in nature, and it can also simulate the multi-directional light source of nature.
5. The parameters set by the user can be automatically stored in the event of a power failure, and the original setting program will be run after the power is turned on.
6. The program controls temperature, humidity, light intensity, time and heating rate, and can be controlled by 30-step ladder program, which simplifies the complicated test process and truly realizes automatic control and operation.
7. When the light incubator \ artificial climate box fails, the LCD screen displays a fault message, and the operation failure is clear at a glance.
8. Independent temperature limit alarm system, and audible and visual alarms remind the operator to ensure safe operation without accidents.
9. High or low temperature alarm.
10. Equipped with leakage protector
11. Equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) when the main temperature control is out of control.
SPECIFICATIONS
|
Model |
LAC-175-N |
LAC-275-N |
LAC-375-N |
LAC-475-N |
LAC-1075-N |
|
Volume (L) |
175 |
275 |
375 |
475 |
1075 |
|
Temperature control range (℃) |
With light 10 ～ 55 ℃ Without light 0 ～ 55 ℃ |
||||
|
Temperature fluctuation/resolution (℃) |
±1℃/0.1℃ |
||||
|
Temperature uniformity(℃) |
±1℃ |
||||
|
Humidity control range(% RH) |
30~95 |
||||
|
Humidity deviation (% RH) |
±5~7 |
||||
|
Light intensity(LX) |
0～12000 |
0～20000 |
0～25000 |
0～30000 |
0～30000 |
|
Program control function |
Separate setting of temperature and light intensity, 30 segments of program can be set. The setting time range of each segment is 1 to 99 hours. |
||||
|
Input power(W) |
860 |
170 |
2100 |
4000 |
8000 |
|
power supply |
AC220V 50HZ |
AC380 50HZ |
|||
|
Working temperature |
+5～35℃ |
||||
|
Continuous running time |
Can run continuously for a long time |
||||
|
Chamber dimensions (cm)
W×D×H |
45*42*93 |
58*51*93.5 |
59*55*116 |
70*55*125 |
95*70*160 |
|
Machine dimensions(cm)
W×D×H |
61*62*150 |
74*71*157 |
75*75*173 |
86*75*182 |
101*90*224 |
|
Shelves(standard/maximum) |
3/16 |
3/16 |
3/21 |
3/22 |
3/22 |
|
Optional parts |
1.CO2 inlet (to promote plant growth)
2.CO2 controller (imported infrared CO2 sensor) 3.Remote control system |
||||
IPv6 network supported
