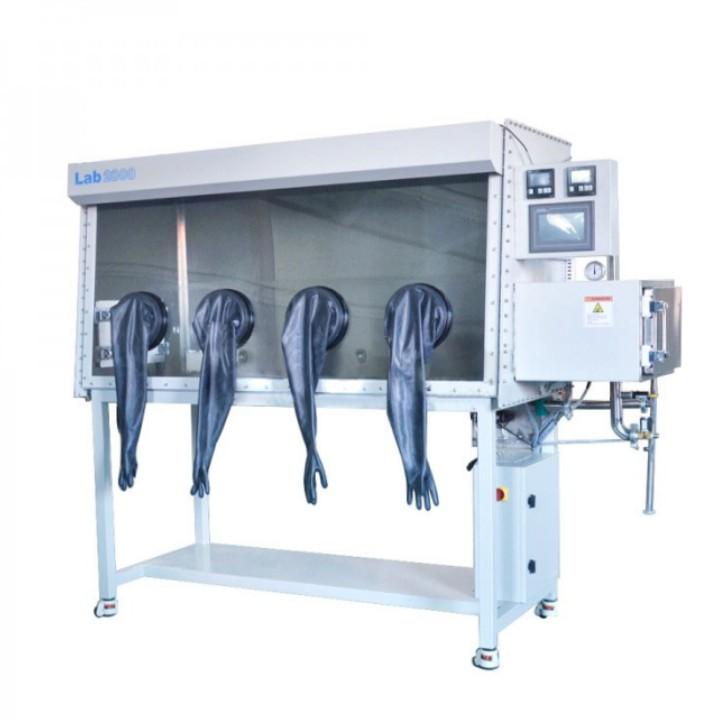

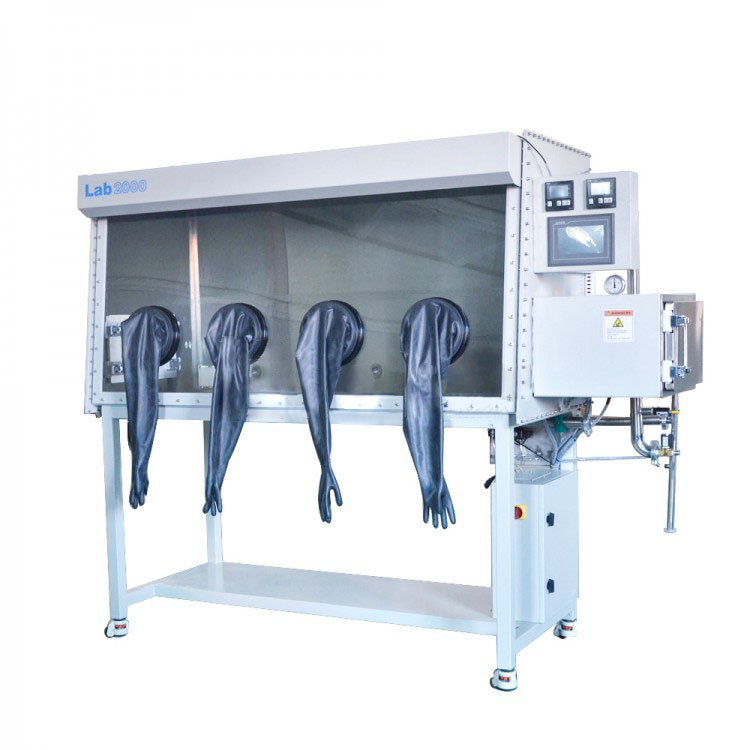

Lab Big Single Sided Duplex 1800mm Super Clean Glove Box
Product Overview：
The Lab2000 single sided duplex 1800mm super clean glove box with large transition chamber heating can be used for flat seam welding glove box with dust removal system, designed for research in materials science, chemistry, semiconductor and related industries. Adopting German BASF oxygen removal material and American UOP high efficiency water absorption material, the water and oxygen content in the glove box can be continuously maintained for a long time with gas purity below 1ppm in a high clean and high purity ultra-low water and oxygen environment, hand/automatic control system air pressure; hand/automatic control system purification status; automatic control of the gas purification system reduction process; automatic prompting and alarm function; system control parameter setting; system Parameter recording; system actuator working condition monitoring; transparent front panel makes operation more convenient and easy, widely used in the preparation of nanomaterials and battery electrode materials.
Product features：
Water content ＜0.1ppm
Oxygen content <0.1ppm
Leakage rate <0.001 vol%/h
Modular design of the solenoid valve
SIMENS microprocessor controller
HEPA high efficiency filter
Variable frequency energy saving control system
Multiple warning function prompts
Soot removal system
Vacuum heated oven with large transition chamber
Uses of the product：
1. MOCVD technology in the semiconductor industry
2. Special lamps (HID) development and production
3. Microelectronics, laser and plasma welding
4. OLED/PLED development and production
5. Lithium-ion battery development and production
6. Inorganic/Organic Chemistry Research
7. Metal halide/metal powder/ceramic powder research
8. Nanomaterials research
9. Catalyst research
10. YAG laser welding
11. Food microbiological testing
12. Healthcare clinical specimen testing
Technical parameters：
|
Boxes |
||
|
Description |
Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Net dimensions: 1800mm(L) x 750mm(W) x 900mm(H) |
|
|
Volume |
1.20 m³ |
|
|
Front window |
Panel: 8 mm thick safety toughened glass Dimensions: 1735mm(L) x 839mm(H) |
|
|
Glove opening |
Hard aluminium or paraformaldehyde (optional) Calibre 220 mm, O-ring seal |
|
|
Gloves |
Material: butyl rubber Thickness: 0.4 mm |
|
|
Filters |
Outlet and inlet filters, filtration <0.3μm |
|
|
Lighting |
LED lighting in the upper part of the front window roof |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
Control system |
||
|
Operator interface |
Kunlun Tongzhou 7" touch screen, Siemens PLC control. |
|
|
Voltage used |
AC 230 V / 50-60 Hz, 10 A |
|
|
Working gases |
nitrogen, argon, helium |
|
|
Vacuum pumps |
Size: Eduard rotary vane vacuum pump, with oil mist filter, with gas ballast control Flow rate: 12 m³/h (7 cfm), double base vane, vacuum < 2 x 10-3 mbar or dry pump (optional) |
|
|
Valves |
Germany import Bauder solenoid valve |
|
|
Leakage rate |
Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test. |
|
|
Control cabinet dimensions |
400mm (L) x 200mm (D) x 500mm (H) |
|
|
Square heated transition chamber |
||
|
Square transition cabin |
Temperature range |
50℃——200℃ |
|
Constant temperature fluctuation range |
±1% |
|
|
Instrumentation |
Japan Omron dual meter temperature controller to monitor temperature |
|
|
Sensor |
Double Probe K-Type Thermocouple |
|
|
Material |
Stainless steel type 304 (1.4301), thickness 3 mm |
|
|
Size |
400mm(L) x 350mm(W) x 350mm(H) available for customization |
|
|
Vacuum level |
< 1 x 10-2 mbar |
|
|
Cleaning systems |
||
|
Description |
By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber. |
|
|
Analyzers |
||
|
Moisture analyser |
Size |
205 mm (L) x 80 mm (W) x 60 mm (H) |
|
Measurement range |
0-500 ppm |
|
|
Other water analysers |
GE VeriDri™ Dew Point Transmitter |
|
IPv6 network supported
