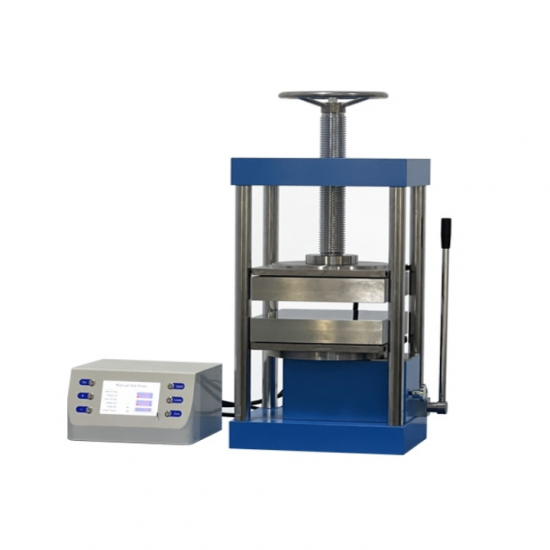

Lab 300C 40T High Temperature Manual Double Plate Hot Press

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PCH-600F
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab 300C 40T High Temperature Manual Double Plate Hot Press











Mold operation diagram






Operation interface (Manual mode)



Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Return to zero button:Calibrate the pressure to zero.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.





Operation interface (Automatic mode)



Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button:Press the stop button to stop the heating process.

List/Curve: The current display state can be switched between list and curve





Setting interface



Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"





Setting interface



Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen





Operation procedure










Technical parameter

Instrument type

PCH-600F

Pressure range

0-40.0 tons

Piston diameter

Chrome plated cylinder Φ130mm(d)

Overall structure of subject

The equipment has no sealed connection to reduce oil leakage points

Mold heating temperature

Room temperature -300.0℃

Constant temperature time

1 s to ∞ s

Temperature control accuracy

0.1 ℃

Heat insulation method

Imported heat shield

Cooling method

Water cooling rapid cooling [Water cooler selection]

Mold size

400x400mm(MXN)

Main engine size

500X480X650(KxPXH)

Overall size

850X480X650(LxWXH)

Power source

5000 W(220V/110V can be customized)

Main engine weight

460Kg

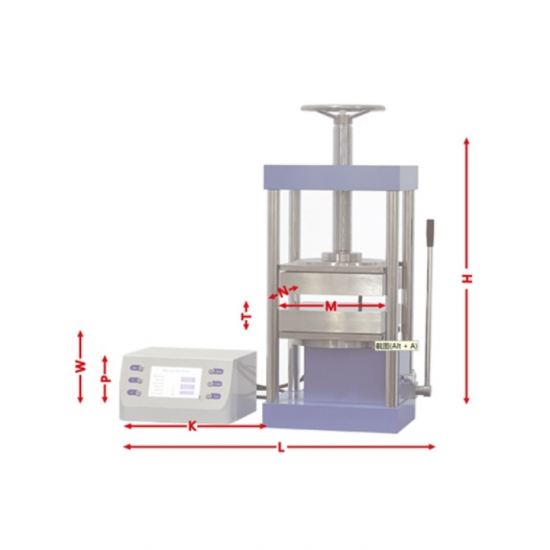

Powder tablet press size diagram
