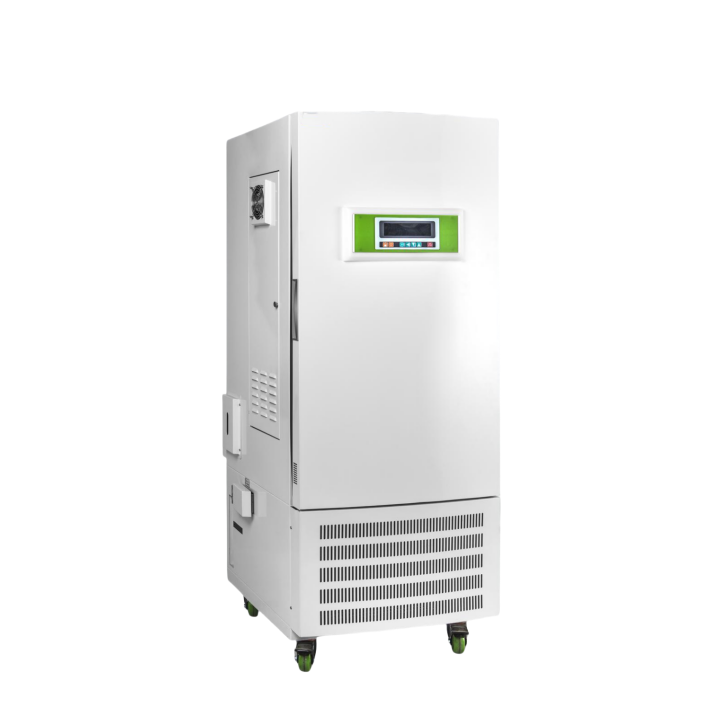

Lab 2900W Intelligent Multi-segment Programmable Illumination Incubator
Scope of application
The illuminated incubator is suitable for plant growth and tissue culture, seed germination, seedling cultivation, microbial culture test; The raising of insects and small animals; BOD measurement of water quality monitoring; Wood, building materials aging and service life test, as well as other uses of light, constant temperature of the more ideal test equipment.
Structural characteristics
● Humanized design
● The box structure adopts curved arc design, novel and beautiful shape.
● Adopt fluoride-free imported Danfoss compressor and double refrigeration system.

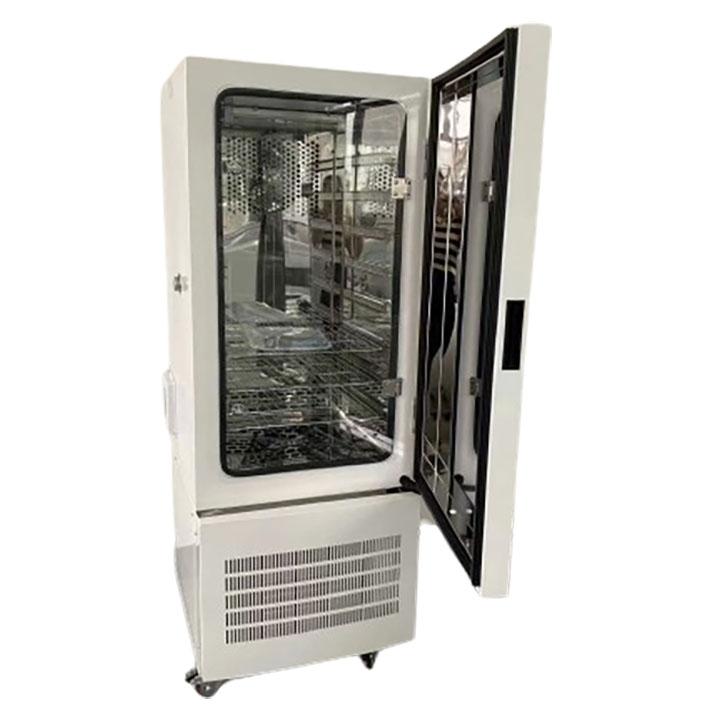

● Mirror stainless steel inner liner, four corners semi-arc transition, no tools can be removed the box inner partition or partition strip, easy to disinfect and clean the studio.
● Intelligent control technology
● It can simulate the temperature changes of nature during the day and night, and can also simulate the multi-directional light source of nature.
● User-set parameters can be automatically stored in the case of power failure, and run the original set program after power.
● Intelligent multi-segment programmable control
● Program control temperature, illuminance, time and heating rate, and can be controlled by 30 steps, simplifying the complex test process and truly realizing automatic control and operation.
● Self-diagnosis function
● When the light incubator fails, the LCD display has fault information, and the operation fault is clear at a glance.
● Safety features
● Independent temperature limit alarm system, and sound and light alarm prompts the operator to ensure safe operation without accidents.
● High or low temperature alarm.
● Equipped with leakage protector
● Equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) when the main temperature control is out of control.
● With USB interface, can be connected to a printer or computer, can record the change of parameters.
Technical parameter
Model number |
LB-475-N |
Volume (L) |
475 |
Temperature control range (℃) |
There is light 10 ~ 55℃; No light 0 ~ 55℃ |
Temperature fluctuation/resolution (℃) |
±1℃/0.1℃ |
Temperature uniformity (℃) |
±1℃ |
Light Intensity (LX) |
0~30000 |
Programmed function |
Temperature and illuminance can be set separately, and 30 programs can be set for each set time range of 1 to 99 hours |
Input power (W) |
2900 |
Power source |
AC220V,50HZ |
Operating ambient temperature |
+5~35℃ |
Continuous running time |
It can run continuously for a long time |
Liner size (cm) (W)×(D)×(H) |
70*55*125 |
Overall dimensions (cm) (W)×(D)×(H) |
88*87*199.5 |
Shelf (block) standard/Max |
3/22 |
Note: LAC series has humidity control, LB series does not have humidity control
