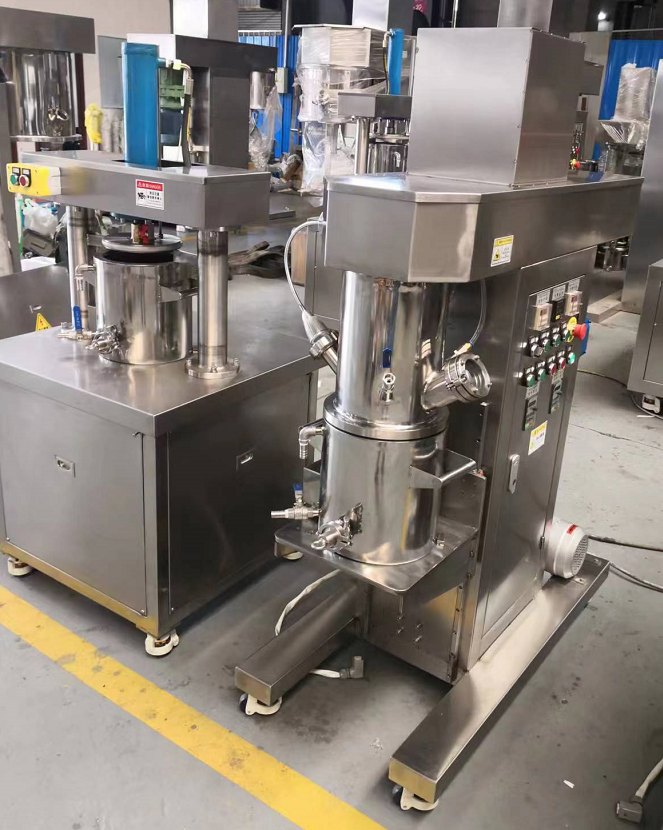

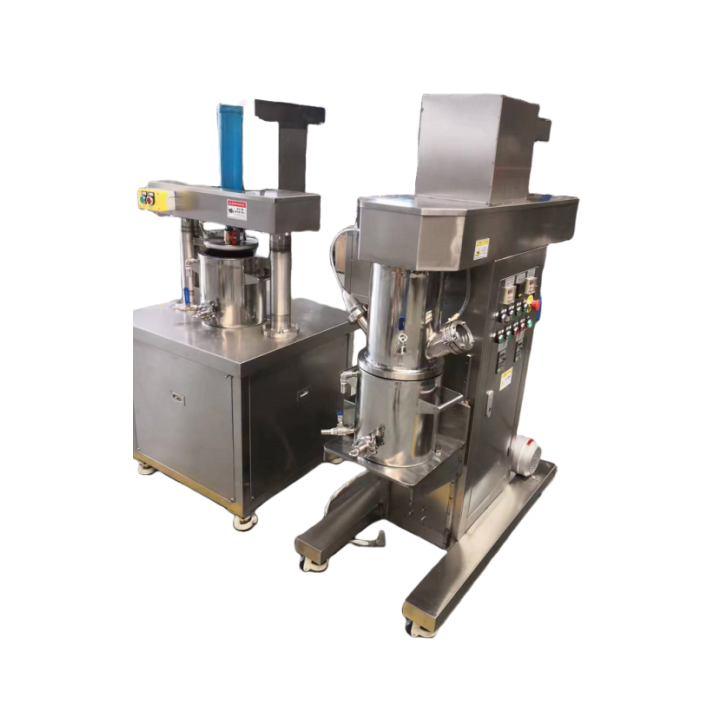

1-1 Product name and specification model

A. Planetary mixer;

B. Specification model: JT-XXJ-10L

1-2 Basic structure

A. Electric pot body lifting type;

B. Single direct measurement of material temperature mode;

C. Double mixing shaft (code: SJ-WS)

1-3 Tank (mixing tank)

A. Design volume :10L;

B. Effective volume :5L.

A. Inner liner, outer material are: SUS304

B. Mirror polishing after inner liner processing to ensure good roundness;

C. The surface of the upper flange of the mixing tank is matched with the flange of the upper tank body;

D. The tank can be out

Pure jacketed direct cooling/heating type

A. The inlet and outlet water interface is G1/2", the jacket can be cold water (oil) or hot water (oil) to cool or heat the processing material.

1-4 Upper tank body (Kettle cover)

A. Material: SUS304.

B. A powder/liquid hopper, can be quickly switched on and off; 1 spotlight; with 2 small windows (a spot light port and an observation hole), reserve a vacuum pressure gauge port, and other necessary nozzle (vacuum/vent/spare).

1-5 Mixing principle

Double mixing slurry low clearance design, no dead angle, low speed mixing paddle strong kneading interference movement and up and down/left and right circulation movement, to ensure that the material is fully mixed.

1-6-1 Revolution/mixing motor and frequency converter, reducer

A. Quantity: one;

B. Motor power: 1.5Kw/4P;

C. with the motor matching frequency conversion governor.

D. Matching reducer, reduction ratio of about I=40.26, coefficient fa=1.55.

1-6-2 Planetary rotation speed

Speed: 0~48rpm, adjustable.

1-6-2 Wall doctor blade (optional)

Quantity: 1 set;

Wall scraping material: SUS304 and Teflon;

Consistent with the speed of the planet. ----- Based on design

1-6-3 Gap reference value (optional)

A. Mixing slurry and mixing slurry tolerance: 10± 2.5mm;

B. Mixing slurry and bottom tolerance: 2 ~ 6mm;

C. Mixing slurry and tank wall tolerance: 5± 1.5mm;

1-7-1 Mixing shaft/mixing slurry speed

Speed: 0~86rpm, adjustable.

1-7-2 Mixing slurry

A. Material: SUS304; B. Quantity: two (groups).

1-7-3 Mixing slurry form selection

A. Optional: twist slurry

1-8-1 Distributed motor

1.5KW

1-8-2 Dispersion speed (rotation)

High speed dispersion (dispersion speed 1450 RPM)

1-8-3 Dispersion axis and dispersion disc

Diameter 60mm

1-9 lifting (pot body)

A. Electric lifting: with linear guide, positioning device; Secure and reliable positioning.

B. Lifting motor power: 0.18KW

1-10 Vacuum system

A. Stirring and dispersing process can be carried out under vacuum; Vacuum degree: ≤-0.95Mpa.

B. The vacuum pump is selected according to the actual working conditions

C. Dynamic seal: mechanical seal; D-2, static seal: using O-shaped sealing ring.

D. Sealing material: dynamic seal for PTFE and fluorine rubber combination; Static seal is fluororubber.

E. Hold the pressure for 12 hours, and do not leak oil into the slurry bucket under the condition of slurry or pressure.

1-11 Positioning system

A. with positioning adjustment device and locking device, can accurately position the mixing tank and the upper tank body, and prevent rotation.

B. The positioning stop of the lower flange of the upper tank body is precisely matched with the mixing tank to ensure the reasonable position of the mixing tank and accurate positioning.

1-12 Power Distribution Cabinet

The vacuum device, frequency conversion speed regulation, temperature display (control), spotlight, lifting, running emergency stop and other functions are displayed and operated on the power distribution cabinet.

Note: Dispersion has timing function (optional, recommended for users, conventional design does not include this).

Control system

Touch screen control system, can carry out multi-speed operation, can set the mixing speed and time of each section (optional)

1-13 Security Operations

A. Relying on the frequency converter and limit stroke switch, through the specially designed control route, to ensure that the upper tank body to the specified position automatically stop.

B. During the rise of the upper tank, the mixing and dispersing part of the equipment cannot be started; Similarly, when the machine is running the mixture, the upper tank cannot be raised and the mixing tank cannot be opened.

C. The use of proximity switches and other circuit design to ensure that the vacuum state, planetary working parts can not rise.

D. Special vacuum buffer tank design, can effectively prevent the vacuum pump oil back into the mixing tank phenomenon.

1-14 Temperature measurement methods

0-300℃, the temperature probe is located on the wall of the tank near the bottom of the tank and is directly in contact with the material.

1-15 Total power: 4.2KW

Working voltage/frequency: 380V/50Hz/3Phase; Control voltage: 220V.

1-16 Dimensions: L× W× H: drawing

Weight: About 400KG

2-1 Sealing material

A. Static seal: silicone rubber/fluorine rubber/butadiene rubber "O" or "trapezoidal" sealing ring, depending on the working condition.

B. Dynamic seal: SiC-S+ fluorine rubber.

2-2 High speed bearings

Dispersion/emulsification shaft and one high speed intermediate drive shaft are made of FAG or NSK.

2-3 Dispersion effect

Dispersion/emulsification shaft drive adopts high-quality synchronous belt, so that the dispersion/emulsification shaft does not lose rotation, dispersion shear and emulsification homogenization effect is good.

2-4 Technical documents

The supplier shall provide a full set of technical documents and technical specifications of the machine parts.
