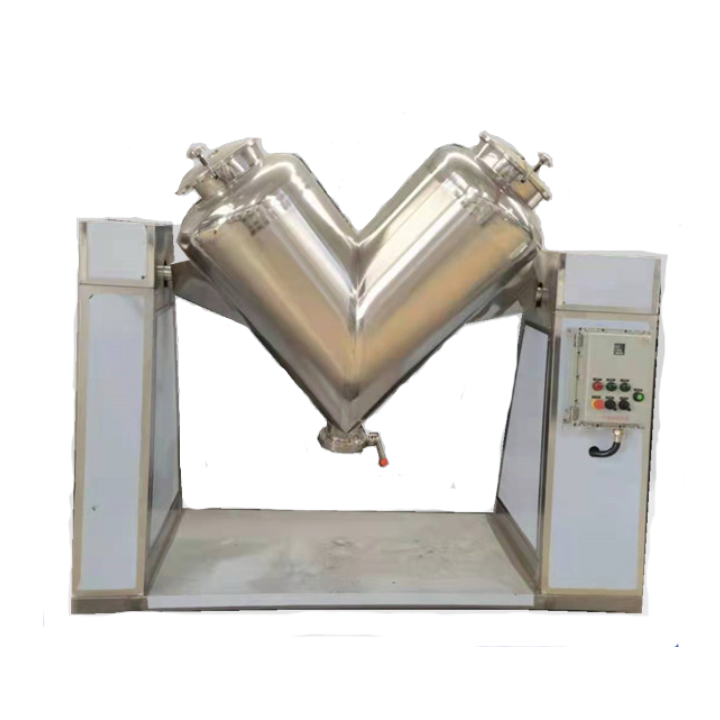

V Type Stainless Steel Explosion Proof Powder Mixer Machine

Introduction

V-type explosion-proof mixer mixing cylinder structure is unique, through the mechanical drive to make the V-shaped cylinder of the material to do reciprocal flip, to achieve uniform mixing purposes. V-type mixer mixing cylinder is generally made of stainless steel, polished inside and outside walls, structural design to ensure that there is no accumulation of material dead corners, with no dead corners, no accumulation of material, fast, short mixing time characteristics, easy and thorough cleaning.

The V-mixer is composed of two cylinders formed and welded together, the shape of the container is asymmetrical with respect to the shaft. Due to the rotary motion, the powder particles in the inclined cylinder, continuous repeated alternation, division, merging; materials randomly passed from one area to another, while the powder particles produce slip between the particles, space for multiple superposition, the particles are constantly distributed on the newly generated surface, so repeatedly shear, diffusion mixing, and no mixing dead space. The motor and electric control are made by genuine manufacturers with 3C and explosion-proof certification.

Application

The V-mixer is used for the uniform mixing of powders. It is suitable for mixing more than two kinds of dry powder and granular materials in the pharmaceutical, food, chemical, metallurgical and electronic industries.

Features

1. For the particle size and density of materials close to the mixing efficiency is high.

2. It is not easy to cause broken when mixing particles.

3. No mechanical extrusion and strong abrasion, can maintain the integrity of the material particles.

4. Polished inside and outside of the barrel, are designed to be rounded and smooth transition, no dead angle, can avoid cross-contamination of materials.

5. Barrel material can be selected from carbon steel, stainless steel, nylon, etc.

6. It comes with a timing function.

Technical parameters
