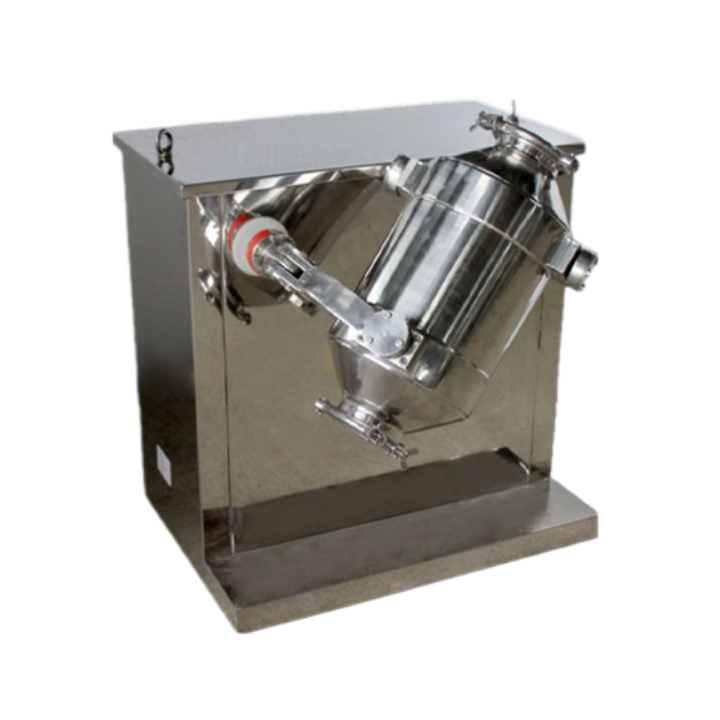

Industrial Fully Automatic Mixer Mixing Grinding Machine
Introduction
The mixing barrel is inclined at 30 degrees to the horizontal, with smooth operation and no pollution of the material. At the same time as mixing, the balls can be added for grinding, which gives excellent grinding and mixing results. According to the user's requirements, the mixing barrel can be made of stainless steel polished inside and out or lined with corundum, polyurethane, etc.
The three-dimensional mixing machine adopts a structure in which the centre of the barrel is at an angle to the horizontal surface, resulting in irregular movement of the material when working, thus achieving uniform mixing without dead corners.
Application
This machine is suitable for the mixing of a variety of materials, widely used in electronics (lithium cobaltate), ceramics
ceramics, chemical, pharmaceutical, daily chemical, organic and inorganic and other fields.
It is widely used for mixing two or more materials in various fields such as electronics (lithium cobaltate), ceramics, chemical, pharmaceutical, daily chemical, organic and inorganic.
Technical parameters
|
Model |
SWH-50 |
SWH-100 |
SWH-200 |
SWH-300 |
|
Volume of mixing drum (L) |
50 |
100 |
200 |
300 |
|
Max. filling volume (L) |
40 |
75 |
160 |
240 |
|
Max. loading weight(kg) |
40 |
75 |
160 |
240 |
|
Spindle speed(rpm) |
0-15 |
0-15 |
0-15 |
0-15 |
|
Motor power(kw) |
1.1 |
1.5 |
2.2 |
4 |
|
Dimension(mm) |
1000x1400x1200 |
1200x1700x1500 |
1400x1800x1600 |
1400x1800x1600 |
|
Weight(kg) |
300 |
500 |
800 |
1200 |
|
Model |
SWH-400 |
SWH-500 |
SWH-600 |
SWH-800 |
SWH-1000 |
|
Volume of mixing drum (L) |
400 |
500 |
600 |
800 |
1000 |
|
Max. filling volume (L) |
320 |
420 |
480 |
640 |
800 |
|
Max. loading weight(kg) |
320 |
420 |
480 |
640 |
800 |
|
Spindle speed(rpm) |
0-15 |
0-15 |
0-15 |
0-15 |
0-15 |
|
Motor power(kw) |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Dimension(mm) |
1800x2100x1950 |
1900x2100x2100 |
1900x2100x2250 |
|
2250x2600x2600 |
|
Weight(kg) |
1200 |
1380 |
1500 |
2000 |
2500 |
