IPX12 Rainy Environment Drip Tester Machine Waterproof Performance Testing Chamber
Application
This test is used to assess whether electronic and electrical products, shells and seals can ensure good performance of equipment and components in a rainy environment. This product simulates various environments such as dripping and splashing water. It is mainly suitable for the waterproof performance test and IP waterproof level test of communication products, auto parts, outdoor lighting and signal devices; At the same time, it can detect that the product may be affected by water intrusion during transportation or use, and provide a reliable basis for product technical standards ; The whole test process is completed in the box, the water will not splash outside, and the water can be recycled.
Key Specifications
Model
|
IPX12-225
|
IPX12-500
|
IPX12-1000
|
|
Inner box size
(W*D*H, mm)
|
600*600*600
|
800*800*800
|
1000*1000*1000
|
|
Outer box size
(W*D*H, mm)
|
900*1080*1750
|
900*1280*1750
|
1200*1480*1800
|
|
Drip box size
(W*D*H, mm)
|
400*400
|
600*600
|
800*800
|
|
Diameter of turntable (mm)
|
300
|
300
|
500
|
|
Turntable load (kg)
|
20
|
|||
Technical index
|
Distance between drip box and sample
|
200mm
|
||
Diameter of drip hole
|
φ0 .4mm
|
|||
Drip hole aperture spacing
|
20mm
|
|||
Rainfall
|
1+0.5mm/Min、3+0.5mm/Min
|
|||
Test duration
|
10min or more time (can be set)
|
|||
Preset test time
|
1s~9999h59m59s, adjustable
|
|||
Test bench speed
|
1 ~ 3r/min adjustable (IPX1.2 standard turntable can be tilted 15°)
|
|||
Inner box material
|
SUS304
|
|||
Outer box material
|
SUS201
|
|||
Control system
|
Teelong's self-developed control system
|
|||
Power
|
Power: 220V; Frequency: 50HZ; Power: 3KW
|
|||
Environment
|
Temperature 5℃~40℃
Relative temperature ≤85%RH |
|||
Safety protective system
|
Power overload/short circuit protection
Ground protection Water shortage protection Alarm sound prompt |

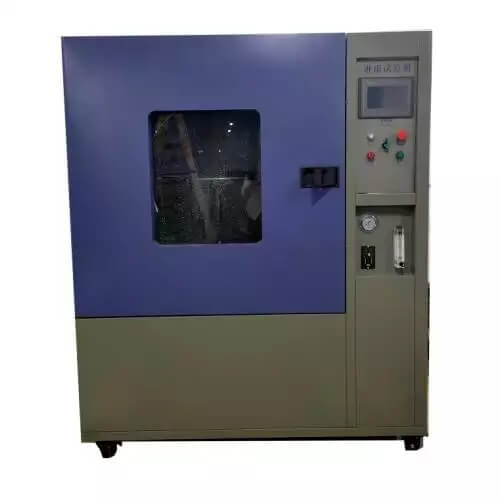

Picture for Reference
