108-800L Lab Battery Salt Spray Tester Chamber Testing Machine
Application
The salt spray test chamber (salt spray test chamber, salt spray test machine) mainly tests the surface treatment of various materials, including paint, electroplating, organic and inorganic coatings, anode treatment, anti-rust oil and other anti-corrosion treatments to test their corrosion resistance. Establish the quality of the product.
Key Specifications
|
Model
|
60
|
90
|
120
|
160
|
|
Lab capacity
|
108L
|
270L
|
480L
|
800L
|
|
Inner box size(mm)
|
600*450*400
|
900*600*500
|
1200*800*500
|
1600*1000*500
|
|
Outer box size(mm)
|
1100*600*1100
|
1410*880*1280
|
2000*1300*1400
|
2000*1400*1400
|
|
Lab temperature
|
Salt spray test(NSS ACSS) 35℃±1℃,
Corrosion resistance test(CASS) 50℃±1℃
|
|||
|
Saturated air barrel temperature
|
Salt spray test(NSS ACSS) 47℃±1℃,
Corrosion resistance test(CASS)63℃±1℃
|
|||
|
Spray method
|
Continuous spray
|
|||
|
Equipment material
|
Imported gray-white impact resistant PVC board, thickness 5mm
|
|||
|
Spray volume
|
1.0ml-2.0ml /80cm²/h (At least 16h, take the average value)
|
|||
|
Spray pressure
|
1.00±0.01kgf/cm2
|
|||
|
Standard configuration
|
1 machine, 2 bottles of 500g sodium chloride reagent, 1 5L measuring cup
|
|||

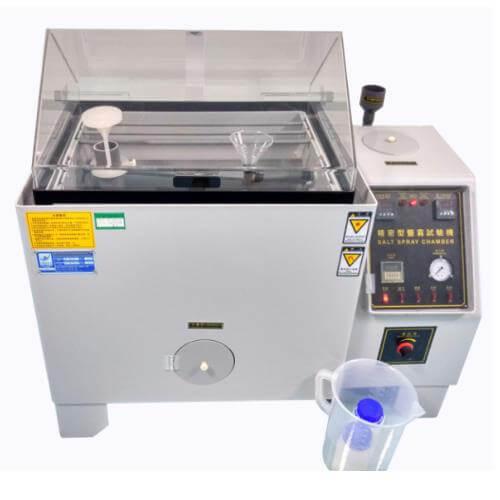

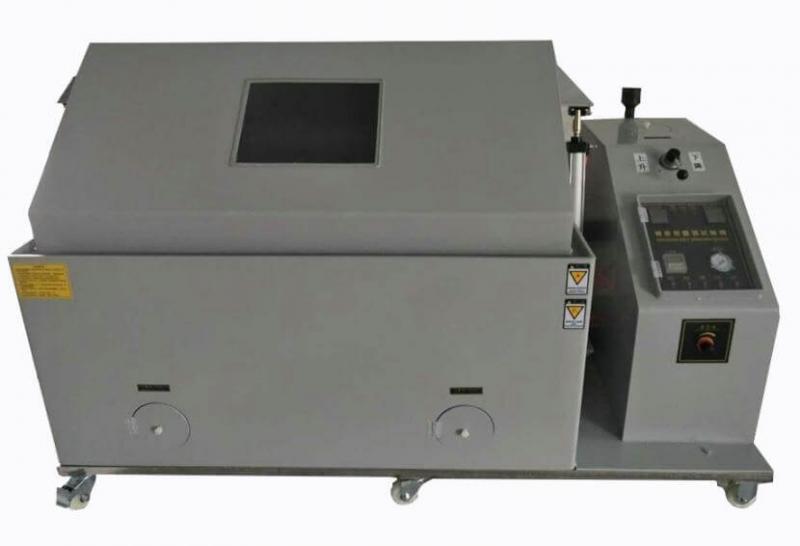

Picture for Reference
