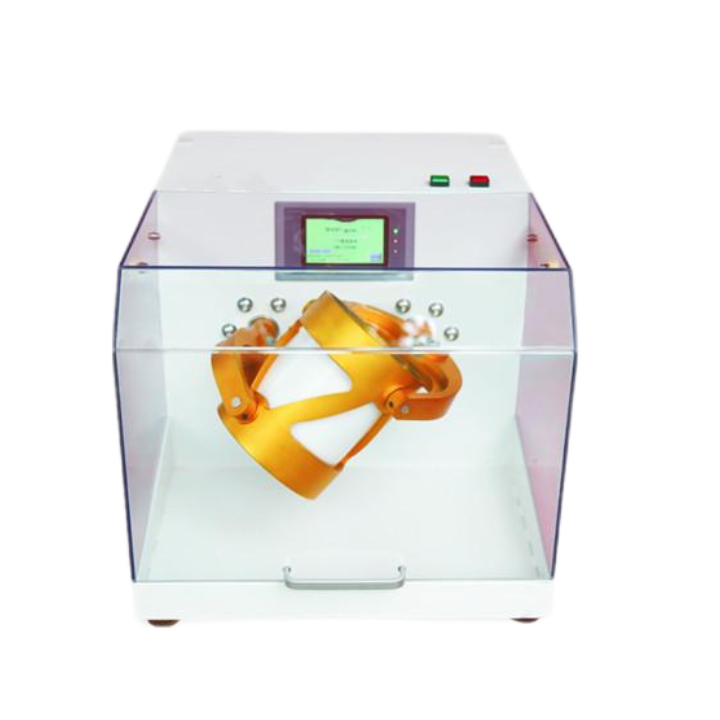

Industrial 2L High Speed 3D Mixer Machine
Introduction
The mixing barrel is inclined at 30 degrees to the horizontal, with smooth operation and no pollution of the material. At the same time as mixing, the balls can be added for grinding, which gives excellent grinding and mixing results. According to the user's requirements, the mixing barrel can be made of stainless steel polished inside and outside or lined with corundum or polyurethane, etc.
Application
This machine is suitable for mixing a variety of materials, widely used in electronics (lithium cobaltate), ceramics, chemical, pharmaceutical, daily chemical, organic and inorganic and other fields of mixing two or more materials.
Technical parameters
|
Name |
Powder Mixer (Mixer) |
|
Equipment model |
SWH-2000ML |
|
Container capacity |
2L standard jar*1 cup |
|
Mixing material with optional capacity cup |
Tanks and test tubes of different capacities up to 2L diameter less than 130MM length less than 180MM |
|
Operating mode |
Human-machine interface |
|
Rotation speed |
0-100RPM |
|
Protection |
Door cover, fault, overload |
|
Dimensions (mm) |
486L*600W*420H |
|
Power, voltage |
0.5-200W,220V |
|
Weight |
56kg |
|
Power supply |
Single phase,AC220V.50-60Hz |
|
Clamps |
Optional |
