Film Coater Solvent Treatment System with Dust Removal and

Exhaust Gas Purification Function

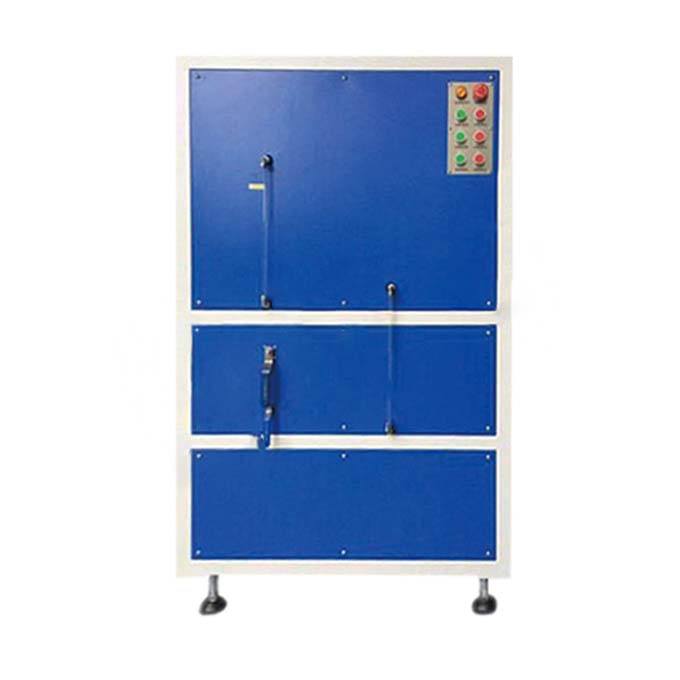

Product Name: Solvent Treatment System

It is mainly used to filter the solvent in the exhaust gas generated during the drying process of the coating machine, so as to realize the functions of dust removal and exhaust gas purification.

Features:

a. Water bath principle, recycling NMP waste gas during coating process;

b. Two-stage water bath treatment unit, good for NMP and dust recovery;

c. Active self-priming air intake, can be directly added to tap water for use;

d. The stainless steel fully welded liner has good corrosion resistance, and the powder-coated shell is beautiful and generous;

e. The recovery solution is pumped out electrically, and the design of the explosion-proof operation box is safe and easy to use;

Technical parameter:

a. Working method: continuous work

b. Processing capacity: 600m³/h

c. Intake temperature: ≤150℃

d. Recovery rate: ≥80%

e. Recycling object: water-soluble solvent gas

f. Processing object: gas

g. Treatment range: water-based solvent

h. Contact material: SUS304 stainless steel

i. Gas discharge: external pipe

j. Access air volume: 600m³/h

k. Temperature: 0-40℃

l. Vibration and shock: there is no obvious source of vibration around

m. Explosion-proof: the equipment itself has explosion-proof treatment

n. Three-phase 380V, 50Hz

o. Power: 1.5KW
