Battery Safety Tester Cabinet Gravity Impact Testing Box
Introduction
The test sample battery shall be placed on a flat surface, and a 15.8mm (5 / 8 inch) diameter rod shall be placed in the center of the sample in a cross way. A 9.1kg weight dropped from a certain height of 610±25mm onto the sample.
The test sample battery shall be placed on a flat surface, and a 15.8mm (5 / 8 inch) diameter rod shall be placed in the center of the sample in a cross way. A 9.1kg weight dropped from a certain height of 610±25mm onto the sample.
Standards
IEC62133, UN38.3, UL1642: 1995, UL2054: 1997, GB/T18287-2000, GB 8897.4-2002 and other standards.
Key Specifications
|
Drop weight
|
9.1kg or 10kg
|
|
Impact height
|
610 mm or 1000 mm
|
|
Impact mode
|
Lift the ball to a certain height and release it. The ball will fall freely in the vertical direction without tilting or shaking
|
|
Inner box material
|
stainless steel plate
|
|
Outer box material
|
cold rolled steel plate baking treatment
|
|
Pressing
|
1 piece of silica gel foaming pressing
|
|
Exhaust fan
|
It is located at the back of the box, and the exhaust duct is reserved, which is convenient for users to connect to the laboratory high-power exhaust fan
|
|
Box door
|
Single door, double door, observation window (toughened glass), cold handle door lock
|
|
Upper and lower impact surface
|
Stainless steel plate
|

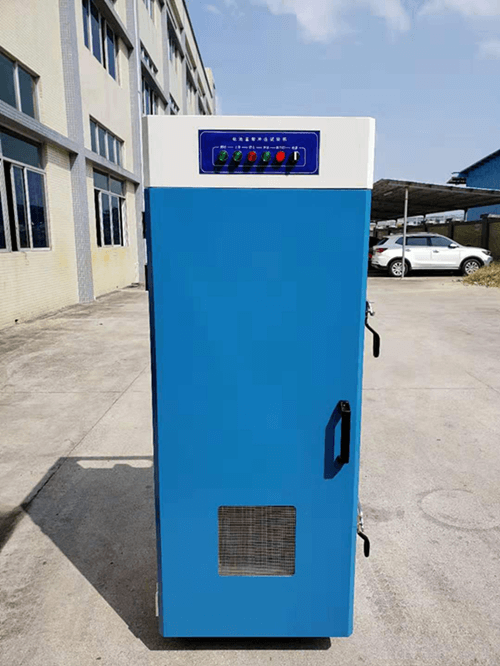

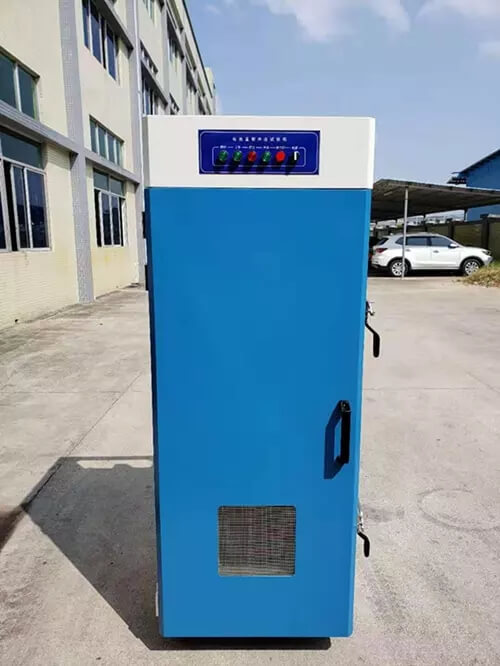

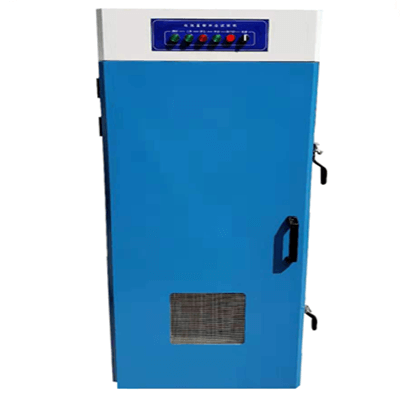

Picture for Reference
