Battery Fast Thermal Shock Tester Temperature Testing Chamber
Introduction
This series of equipment is one of the commonly used equipment in various Battery Thermal Shock Testing Machine baking and aging experiments. It is suitable for electronic instrumentation, materials, electrical engineering, vehicles, metals, electronic products, and various electronic vitality parts to test their performance in a temperature environment. The use of indicators and quality management, etc.
Features
◆Using a touch screen controller, high-end atmosphere, powerful function, single-point temperature control or program temperature control mode selection
◆Affordable price, saving user budget◆The casters are installed at the bottom, which can be moved according to the placement position
◆PT100 thermal resistance temperature sensor, high precision, fast temperature sensing, high temperature resistance, low maintenance
◆Users can meet the special requirements of the laboratory according to the processing type of the inner and outer chamber walls
◆The outer box is made of cold-rolled steel plate, sprayed and painted, corrosion-resistant and high-temperature resistant, and has a perfect structure
◆The inner box uses 304# mirror panel, with smooth surface, corrosion resistance and high temperature resistance, easy to clean, and easier to maintain
◆It can be customized in any size, no waste of space in use
Standard
GB31241-2014 7.8 Thermal Abuse Test Standard in Safety Requirements for Lithium-ion Batteries and Battery Packs for Portable Electronic Products
|
Structure
|
|
|
Inner size
|
W500*D500*H500 mm
|
|
Outer size
|
W870*D720*H1370 mm, based on the actual product
|
|
Control panel
|
The control panel is installed on the top of the machine (as shown in the figure)
|
|
Opening method
|
Single door opens from right to left
|
|
Visual window
|
The door is equipped with a window, specification W300*H400mm
|
|
Inner material
|
304# stainless steel mirror panel, 1.2mm thick
|
|
Outer material
|
Cold-rolled steel plate, 1.5mm thick.
Powder paint treatment (wrinkle grayish white)
|
|
Interlayer
|
The inner part is divided into two layers, adjustable, the first layer is 100mm from the bottom, and the above is divided equally, with two mesh panels
|
|
Heat preservation material
|
High temperature resistant rock wool, with good heat preservation effect
|
|
Sealing material
|
High temperature resistant foamed silicone strip
|
|
Test hole
|
There is one test hole on the right side of the machine, with a diameter of 50mm.
|
|
Wheel
|
The machine is equipped with movable casters and adjustable fixed foot cups, which are convenient to move and fix the position.
|
|
Temperature Control System
|
|
|
Temperature controller
|
The temperature controller is a 580 touch screen, fixed value or program operation control temperature can be selected for use, can be automatically calculated, PV/SV are displayed at the same time, touch to set
|
|
Timing function
|
Built-in timing function, timing when the temperature is up, and the heating is stopped when the time is up, and an alarm will be given at the same time.
|
|
Data port
|
Computer connection port RS232 interface
|
|
Curve
|
The temperature curve during operation can be viewed on the touch screen meter.
|
|
Temperature sensor
|
PT100 high temperature type
|
|
Control output signal
|
3-32V
|
|
Heating controller
|
Solid state relay SSR without contact
|
|
Heating material
|
High temperature adder
|
|
Temperature range
|
Normal temperature +20～200℃ temperature adjustable
|
|
Heating rate
|
5℃±2.0/min, using program time to control heating rate
|
|
Control accuracy
|
±0.5℃
|
|
Display accuracy
|
0.1℃
|
|
Test temperature
|
130℃±2.0℃; (no-load test)
|
|
Temperature deviation
|
±2.0°C (130°C/150°C)(no-load test)
|
|
Air Supply System
|
|
|
Air supply method
|
Internal hot air circulation, air out of the inner box on the left side, return air on the right side
|
|
Motor
|
The motor is a special type with long shaft and high temperature resistance, 370W/220V
|
|
Fan
|
The fan is a 9-inch multi-wing turbine type
|
|
Air inlet and outlet
|
There is one air inlet on the right side and one air outlet on the left side.
|
|
Power supply device
|
|
|
Voltage
|
AC220V/50Hz single phase
|
|
Current
|
20A
|
|
Total power
|
4.5KW
|
|
Temperature Circuit Protection System
|
|
|
Over-temperature protection system
|
When the temperature is out of control and exceeds the set temperature of the over-temperature protector, the heating and power supply will be automatically stopped to protect the safety of products and machines
|
|
Circuit protection
|
Grounding protection, fast insurance, overload protection, circuit breaker, etc.
|
|
Safety Device Protection System
|
|
|
Pressure relief device
|
An explosion-proof pressure relief port is opened at the rear of the inner box, and when the battery explodes, the shock wave generated is discharged instantly, which effectively protects the safety of the machine, the specification is W300*H300mm
|
|
Protective device on the door
|
Explosion-proof chains are installed on the four corners of the door to prevent the door from falling off and flying out in the event of an explosion, damaging property and personnel safety.
|

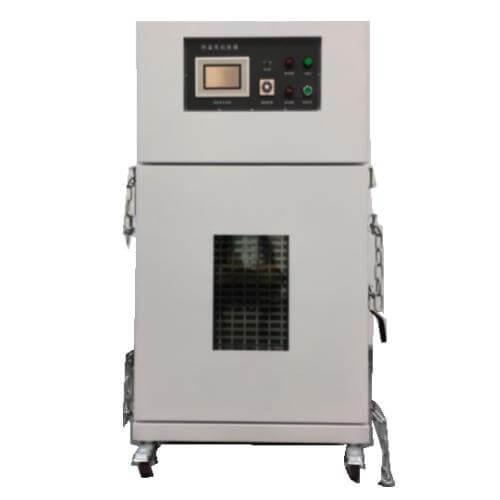

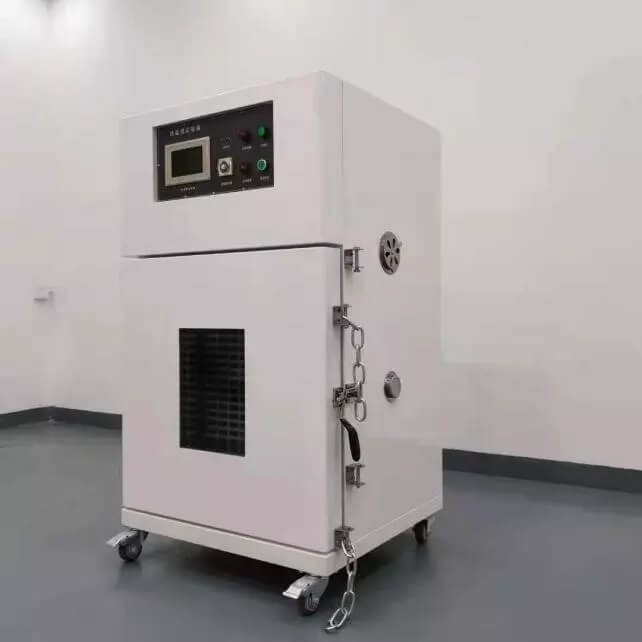

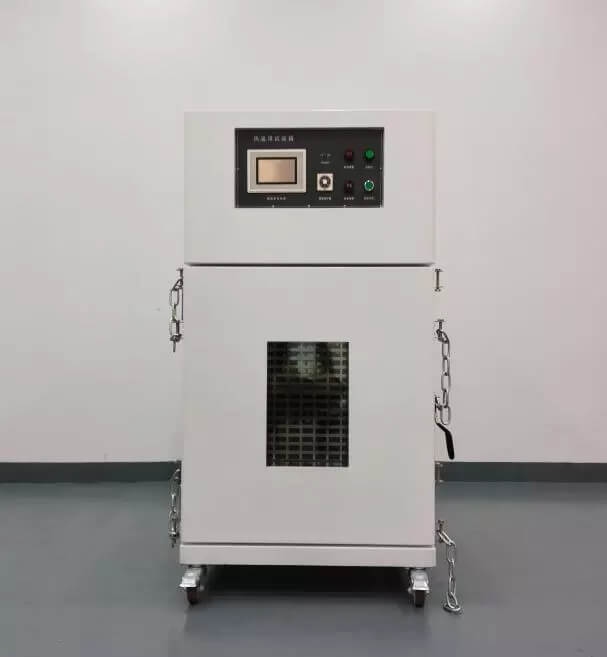

Picture for Reference
