Battery Crushing Safety Tester Hydraulic Nail Penetration Testing Box
Introduction
The battery crushing and acupuncture test machine is suitable for simulating the extrusion of batteries when they are used, transported, stored or disposed of household waste. The battery shall be qualified without explosion or fire.
The battery crushing and acupuncture test machine is suitable for simulating the extrusion of batteries when they are used, transported, stored or disposed of household waste. The battery shall be qualified without explosion or fire.
Key Specifications
|
Nail Penetration Part
|
|
|
Transmission mode
|
hydraulic drive
|
|
Battery extrusion head (plate)
|
standard round extrusion plate, easy to handle and replace (size is 150 mm in diameter)
|
|
Extrusion degree
|
the extrusion continues until the actual pressure reaches 13kn ± 0.2kn, holding pressure for 1min. Once the pressure is reached, the equipment will automatically release pressure and complete the extrusion
|
|
Pressure range
|
1 kn ~ 20KN (usually 13 KN)
|
|
Pressure display accuracy
|
0.1N, sensor resolution: 1 / 10000
|
|
Unit conversion
|
kg, N, LB
|
|
Data sampling frequency
|
80 times / S
|
|
Compression space
|
520 * 500 * 445mm (w * h * d)
|
|
Extrusion stroke
|
320mm
|
|
Crushing Part
|
|
|
Needle
|
φ2mm-φ8mm high temperature resistant steel , with a length of 100mm.
|
|
Distance between the needle tip and the lower part
|
200mm from the battery discharge plane
|
|
Clamping distance
|
10 mm
|
|
Acupuncture speed
|
At the speed of 10-40mm / s, it penetrates from the direction perpendicular to the battery plate (the steel needle stays in the battery)
|
|
Penetration force
|
500 ~ 150kg
|
|
Force display
|
pressure sensing LCD display
|
|
Effective stroke of oil cylinder
|
320mm
|
|
Driving mode
|
hydraulic driving
|
|
Box type
|
explosion-proof, fire-proof, corrosion-resistant and easy to clean.
|
|
Material of explosion-proof inner chamber
|
stainless steel, 1 / 3 of the box is pasted with iron fluorine soluble tape, which is resistant to high temperature, corrosion, insulation and easy to clean
|
|
Delay function
|
0-99 (H / M / S can set and adjust the test time)
|
|
Power supply
|
AC220V, 50Hz, 13A
|

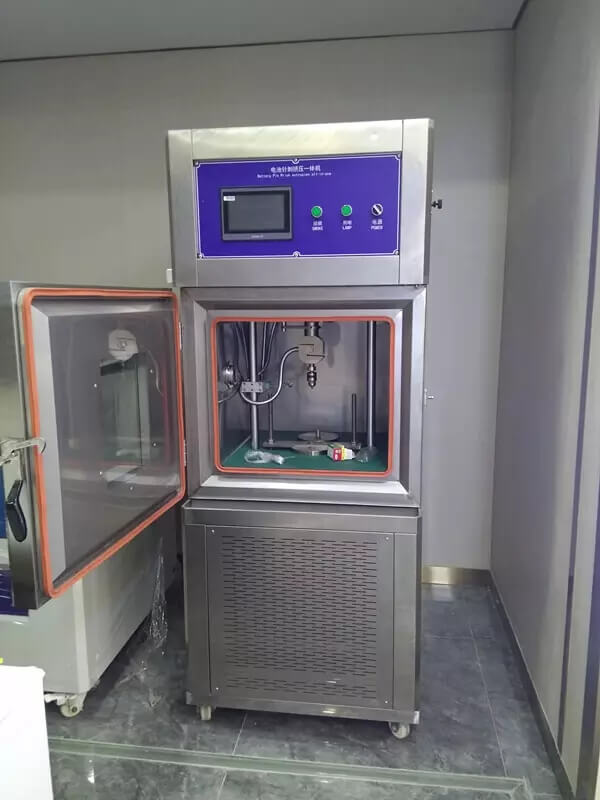

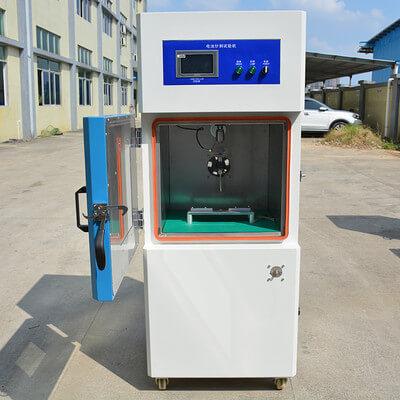

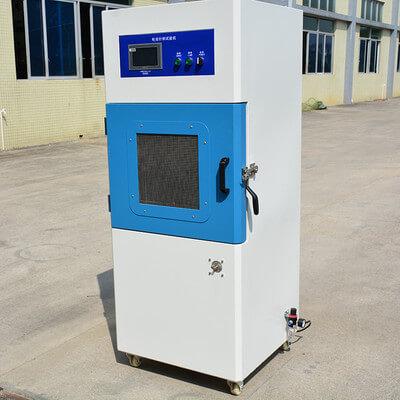

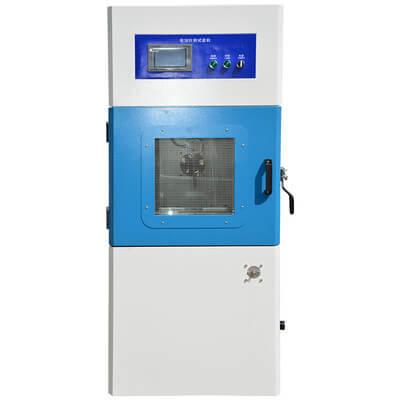

Picture for Reference
