Model

LITH-CD841-PZ-ZK

Pressure range

0-25T

Pressurization process

Program pressurization - program hold pressure - program pressure relief

Compress time

0-999.59 points

Heating temperature

up to 500°C

Heating plate

180*180mm, 200*200mm

Vacuum box material

SUS 304 (stainless steel)

Studio size

400*400*400

Door size

300*350mm

Degree of vacuum

-0.1MPa

Overall size

450*550*850(L*W*H)

Power supply

220V 50Hz

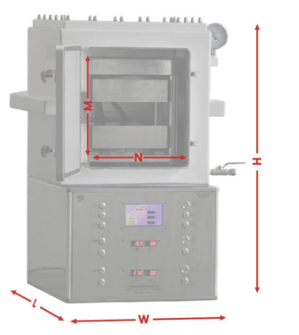

Tablet Press Size Diagram
