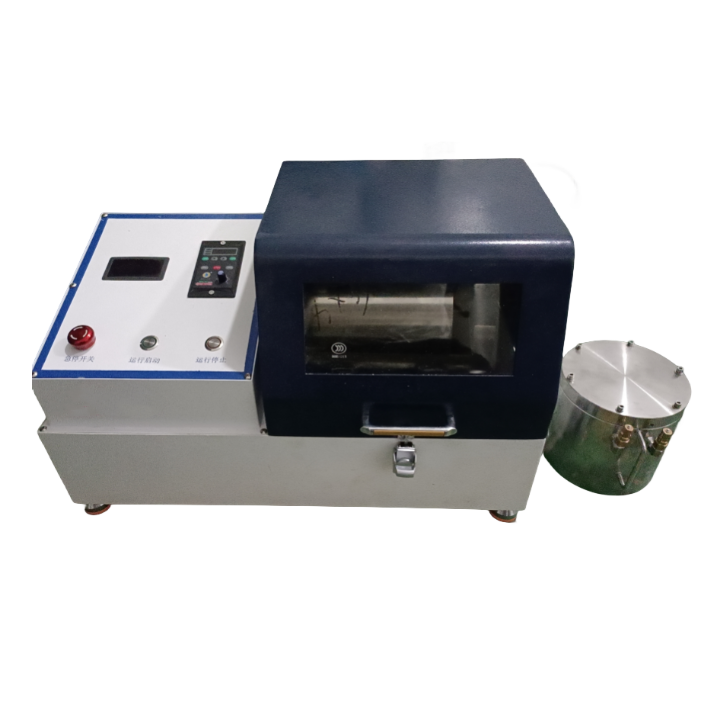

1L Vibrating Vibratory Ball Mill Grinder Used in Mineral Processing

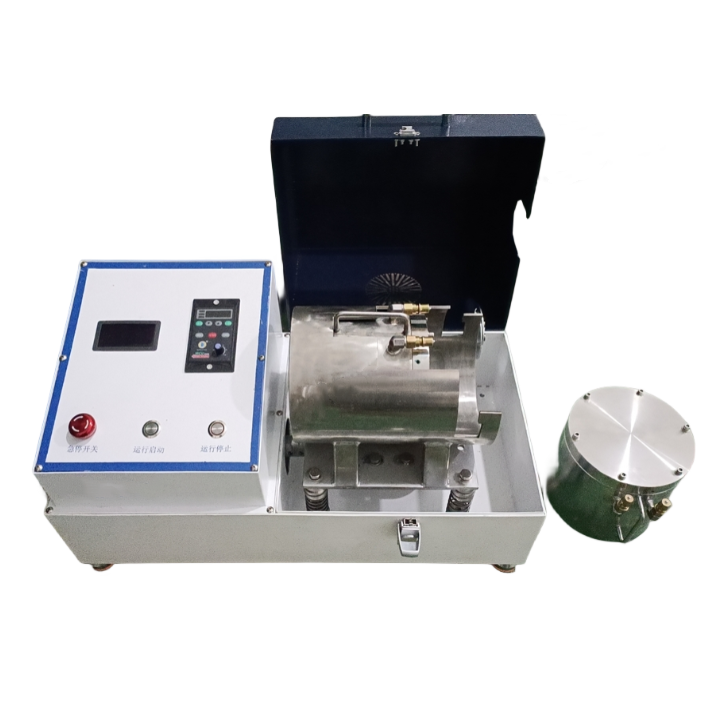

The vibrating ball mill is driven by the motor through the winding coupling to produce vibration of the shaft equipped with eccentric block, which is transmitted to the stand. The stand is equipped with a ball mill cylinder, so the powder follows the vibration. Both sides and the bottom of the stand are equipped with springs connected to the machine base. Observed from the end surface of the ball mill cylinder, the trajectory of any powder body is a flat and curved. The height of the powder jumping is equal to 2 times the amplitude, the movement is mainly vibration, but due to inertia there is also a small amount of rotation.



Applications

Vibrating ball mill is the crushing equipment used in mineral processing and powder metallurgy, which is widely used in ceramics, non-metallic minerals, pigments, electronics, chemical industry, metallurgy, building materials, new materials, food and pharmaceuticals. It is used for fine crushing, the efficiency is 2 times higher than the general ball mill, has the advantages of simple structure, low cost and so on.



Parameters

Model	JT-ZM-1L
Reference external size (mm)	600X320X420
Weight (KG)	35KG
Vibration motor power	150W
Amplitude (mm)	5-8
Frequency (r/min)	3000（Variable frequency adjustable）
Ball milling jar volume	50ML-1000ML
Feeding particle size (mm)	＜5
Discharge particle size(mesh)	200-2000(Related to material properties）
Material of ball milling jar	Stainless steel, agate, zirconia, tungsten carbide
