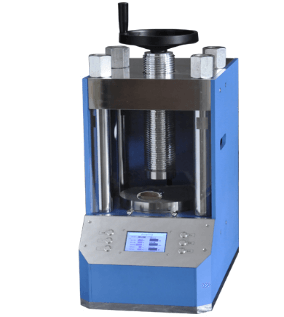

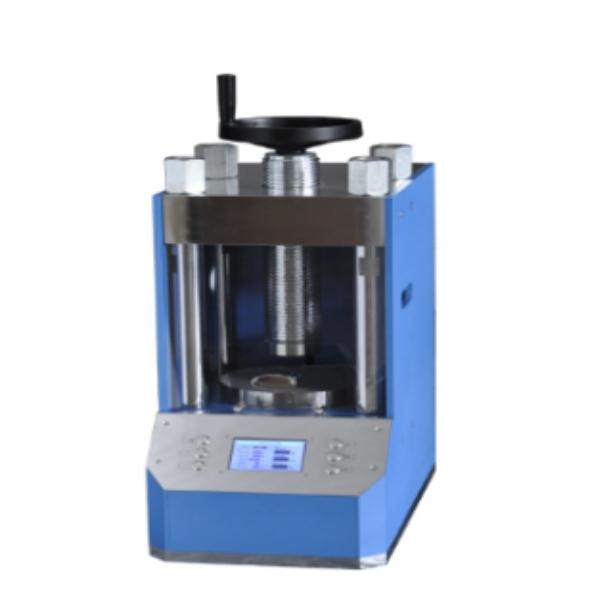

Model

LITH-ZYP-100TZ

Pressure range

1-100T

Pressurization process

Program pressurization - program pressure maintaining - timed pressure relief

Compress time

0-999 seconds

Pressure conversion

Automatic conversion of die pressure by program

LCD

4.3 inch LCD screen

Equipment protection

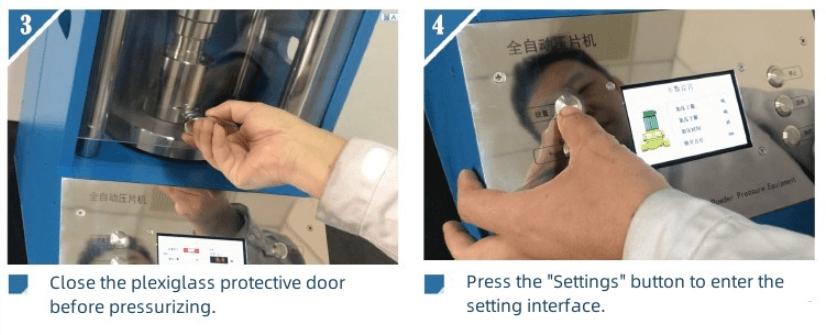

Steel plate protection with plexiglass door

Limit switch

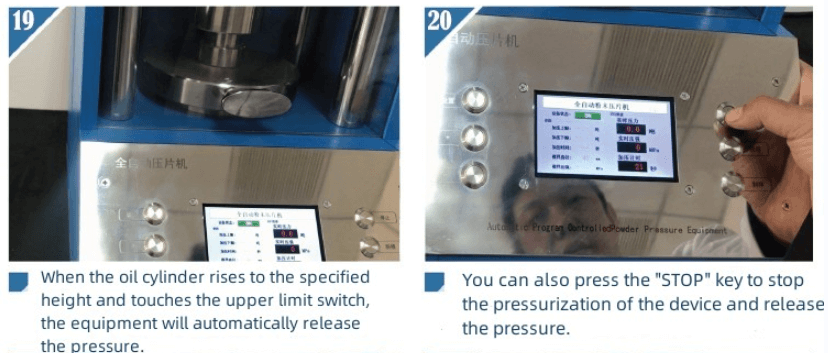

Automatic pressure relief when the oil cylinder rises to the limit height

Cylinder stroke

50mm(T)

Space size

185*250mm(M*N)

Dimensions

330*580*620mm(L*W*H)

Device power

220V(50Hz/60Hz)

Equipment weight

240Kg

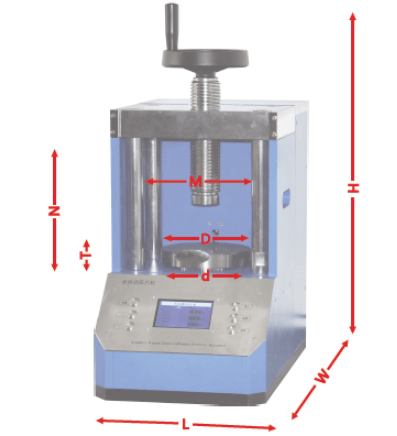

Tablet press size diagram
