 Lab Square Two-way Pressure Open-flap Punch Press Die

Two-way Pressure Open-flap Press
Two-way Pressure Open-flap Press

Lab Square Two-way Pressure Open-flap Punch Press Die

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PMS

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
  • Product Detail

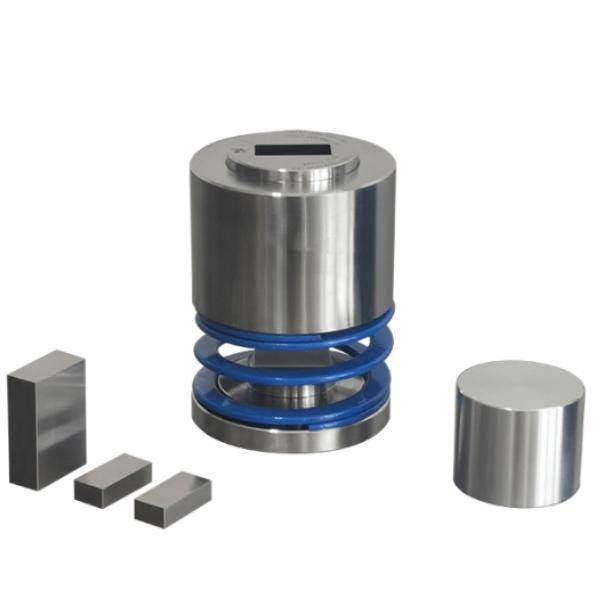

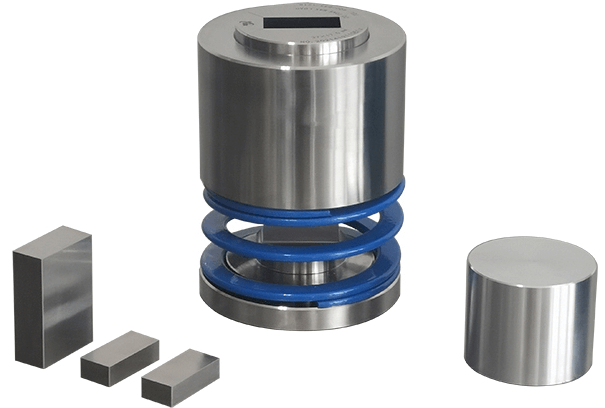

Lab Square Two-way Pressure Open-flap Punch Press Die



Two-way Pressure Open-flap Press


Parameter

Model

LITH-PMS

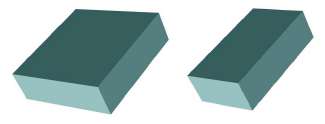

Compressed sample shape




Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

12*12、15*15、18*18、20*20mm(M)

Cavity depth

40mm(N)

Dimensions

Φ88*175mm(L*H)

Mold weight

3.0kg







Dimension diagram

Punch Press Die

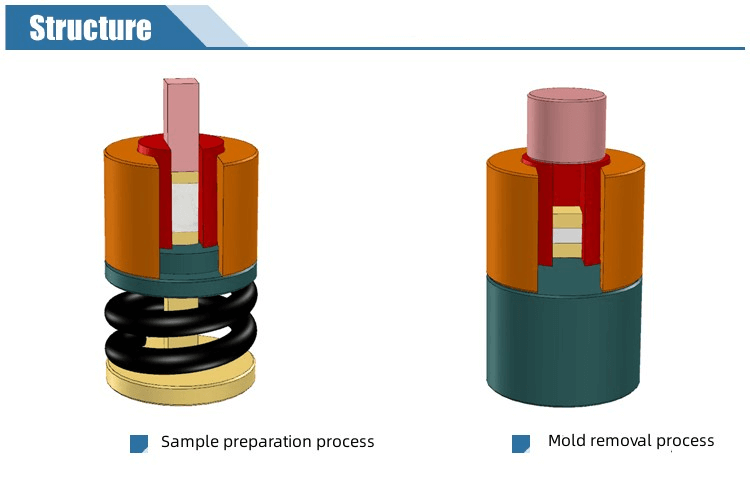

Schematic Diagram of Mold Operation

Punch Press Die





Mold sample preparation operation steps

Square Open-flap Press Die

Square Open-flap Press Die







Mold use and maintenance
