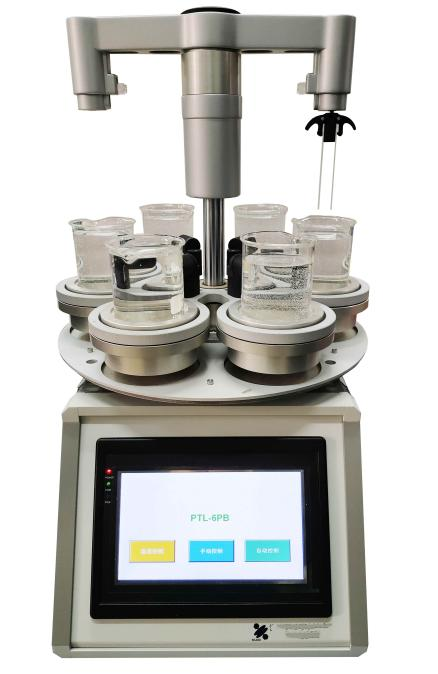

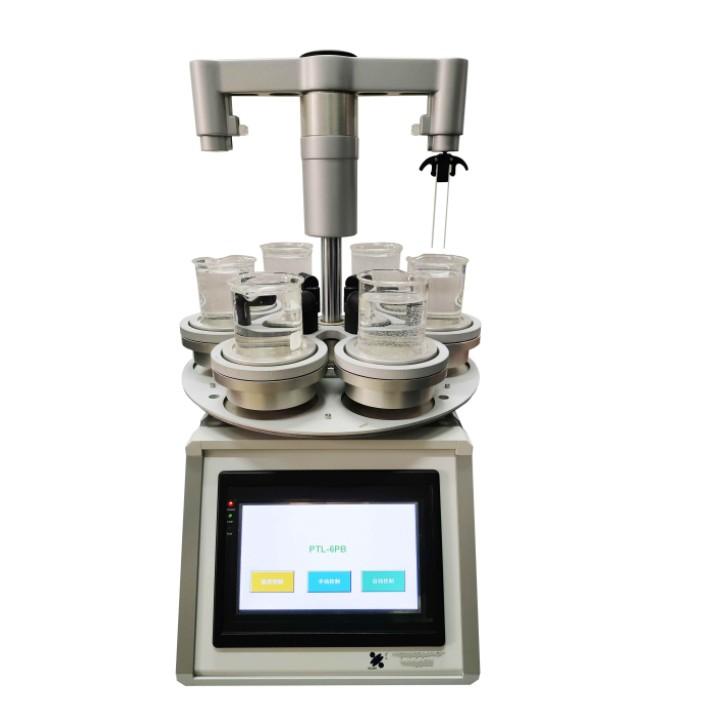

Lab Six Stations Small Lifting Coating Machine with Programmable Control Units
Description：
The PTL-6PB six-station lifting machine can lift one sample at one time, and the sample is rotated counterclockwise through the program control, it would be submerged in the charging beaker for a certain time and then lifted out for drying, the submerging time and drying time can be set through the program. The six charging beakers of PTL-6PB six-station lifting machine can be filled with the same film material or different film materials. The machine is equipped with six temperature control meters, which can heat the charging beakers during the film coating process. The same temperature can be set for heating or different temperatures can be set for heating, depending on the film material contained in the beakers. This machine is suitable for the use of liquid film materials or solid film materials that can be melted into a flowing liquid after heating. PTL-6PB six-station lifting machine is widely used in the laboratories of various universities, research institutes and enterprises because of its compact size, saving laboratory space; simple operation, suitable for beginners; easy cleaning, etc.
Main Features:
1. With 6 work stations, the sample can be rotated counterclockwise.
2. Adopt program-controlled lifting speed, impregnation time, drying time, etc.
3. Adopt high precision stepping motor.
4. It has passed CE certification.
Technical Parameters:
|
Product Name |
Six-station lifting machine |
|
Model Number |
PTL-6PB |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 2. Electricity: AC220V 50Hz, must be well grounded 3. Gas: without 4. Working station: size 500mm × 800mm × 700mm, load-bearing weight of 50kg or more 5. Ventilation device: without |
|
Main Parameters |
1. Power supply: 220V 1200W 2. Stirring speed: 1-5 rpm / s (whether each station stirring, can be set individually) 3. Pulling speed: automatic rise and fall speed: 1-400 mm/min, manual rise and fall speed: 1-150 mm/min 4. Pulling times: 1-45 times 5. Dipping and drying time setting：1-999s 6. Stroke setting：1-80mm 7. Load cup：150ml 8. Sample size: 75mm×25mm×2mm 9. Effective impregnation length: 60mm 10. Heating temperature: RT-100℃, each station can set the heating temperature individually. |
|
Product Specification |

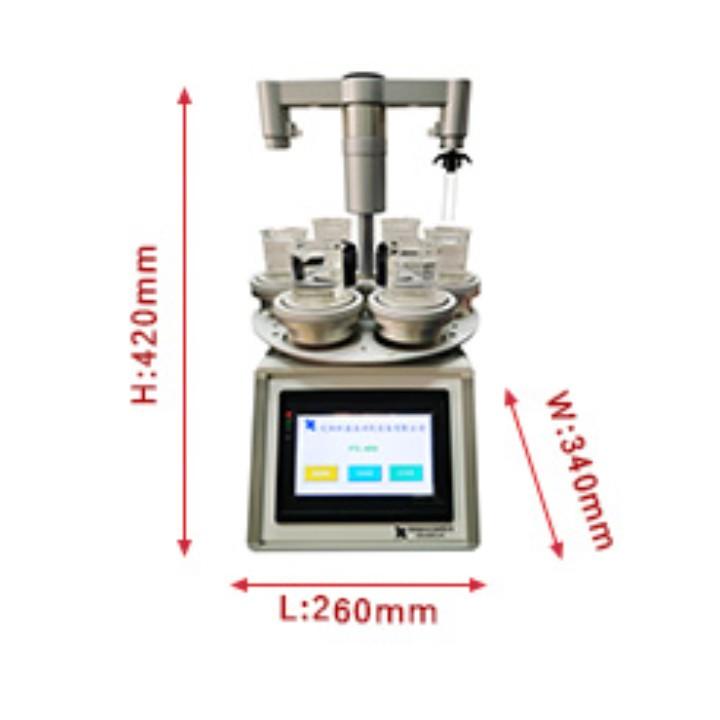

Size: 260mm×340mm×420mm; Weight: 15kg
|
|
Standard Accessories |
1. Sample clamp (single piece) 1 piece 2. 6 loading cups |
|
Optional Accessories |
Sample clamps (double piece) Other clamps |
