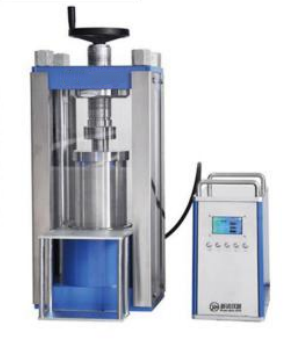

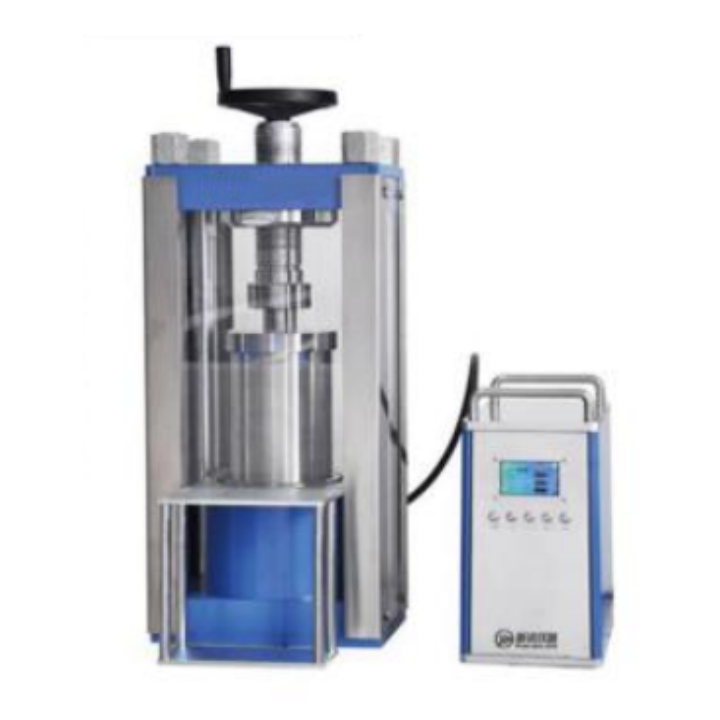

Lab Intelligent Electric Large Tonnage Isostatic Press 100t or 150t
New DJYP-TZ series
The DYJP-TZ series electric isostatic press adopts a split structure, which has the characteristics of large tonnage and large working space, which can meet the needs of users who need large-scale sample testing. Program pressure/slow pressure-pressure holding-pressure-replenishing-timed pressure relief, etc., steel plate protection and equipped with plexiglass protection door, the operation and production are safer and more assured, the pressure is stable, and the operation is convenient. It is another innovative product developed on the basis of ordinary static presses. At present, The company can undertake non-standard customized products, please call for details.
Parameters
|
Device model |
DJYP-100TZ |
DJYP-150TZ |
|
Pressure range |
1-1000.T/0.1t |
1-150.0T/0.1t |
|
Piston diameter |
Dia200mm chrome plated cylinder |
Dia250mm chrome plated cylinder |
|
Maximum cylinder stroke |
50mm |
|
|
Pressurized method |
Electric pressurization |
|
|
Pressurization process |
Intelligent automatic, program pressurization/slow pressurization - program pressure maintaining/replenishing pressure - timing pressure relief |
|
|
Display |
XNNETS 4.3 inch LCD screen |
|
|
Compress time |
0-999.59 (minutes.seconds) |
|
|
Pressure conversion |
The program is automatically converted, and the digital display of the pressure of the mold sample (Mpa) |
|
|
Equipment protection |
Steel plate protection with plexiglass protection door |
|
|
Equipment structure |
Split structure |
|
|
Device power |
220V(50Hz/60Hz) |
|
|
Isostatic chamber size |
Dia60×150mm |
Dia80×150mm |
|
Isostatic chamber pressure |
0-300Mpa |
0-300Mpa |
|
Workspace |
Width 260×400mm |
Width 280×400mm |
|
Dimensions |
850×500×1100mm |
950×550×1150mm |
|
Equipment weight |
580kg |
680kg |
