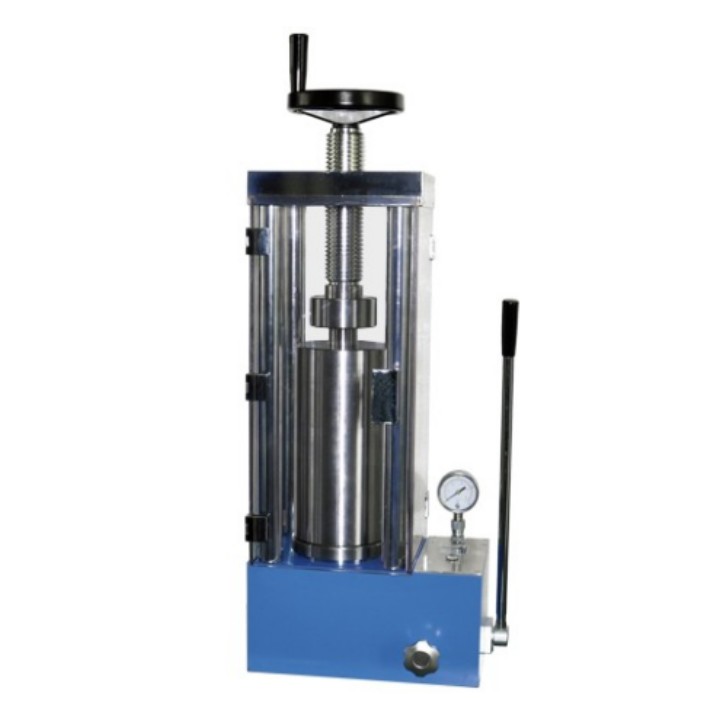

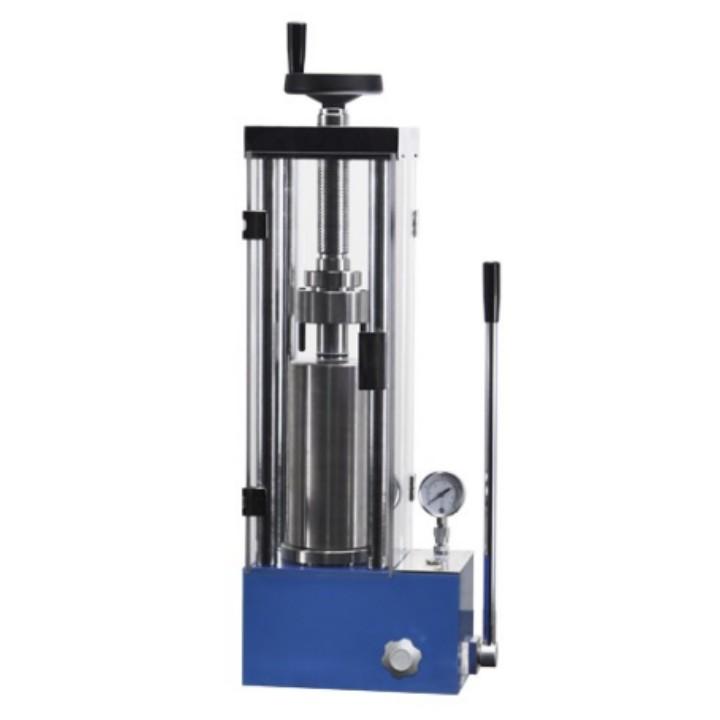

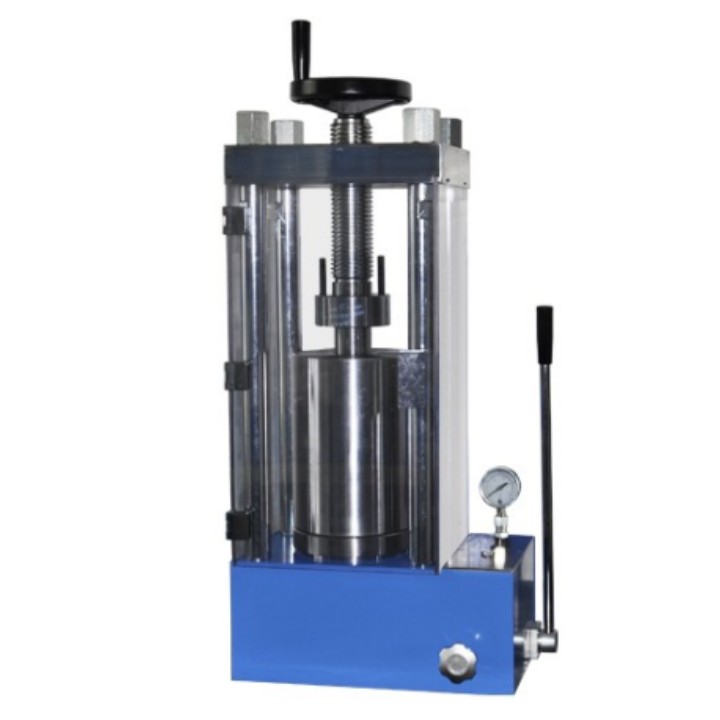

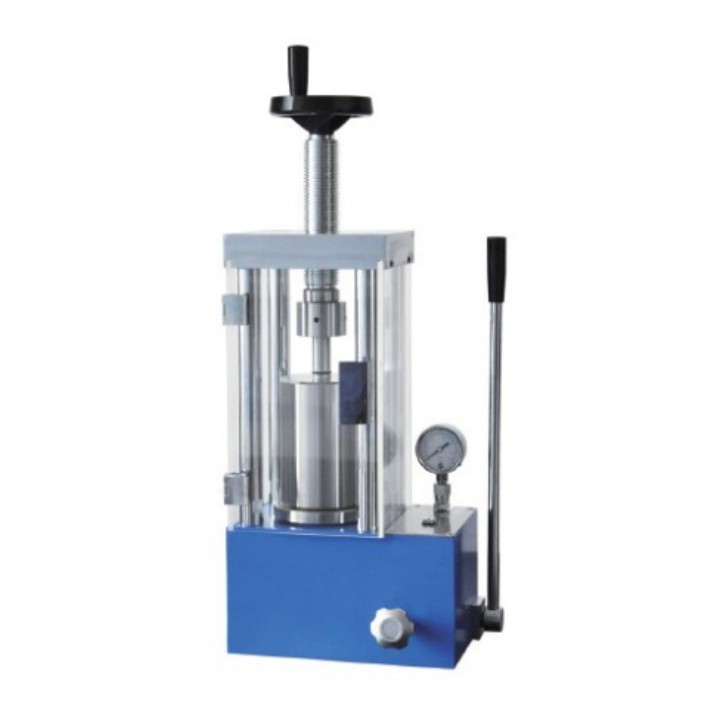

12T 20T 40T 60T Manual CIP Cold Isostatic Press Machine with Optional Digital Pressure Gauge
New SJYP-T Pointer Series
The machine adopts our company's utility model patented technology, one-piece structure, and has two modes of manual pressure compensation and electric pressure, flexible operation, and manual pressure control is more accurate. It is recommended to use electric pressure and manual supplementary pressure, which can accurately control the pressure of the tablet press. The machine is extremely widely used and can be used as a press.
Using numerical pressure controller, digital display pressure (MPa), more accurate than pointer pressure gauge. When the equipment pressure is lower than the lower limit of the set value, the motor will automatically start to supplement the pressure, which can realize the function of automatic pressure maintenance and supplementary pressure for a long time.
The main technical parameters
|
Device model |
SJYP-12T |
SJYP-20T |
SJYP-40T |
SJYP-60T |
|
Pressure range |
0-12T(0-17Mpa) |
0-20T(0-21Mpa) |
0-40T(0-30Mpa) |
0-60T(0-34Mpa) |
|
Pressure conversion |
1T=1.41Mpa |
1T=1.05Mpa |
1T=0.75Mpa |
1T=0.56Mpa |
|
Piston diameter |
Φ95mm chrome plated cylinders |
Φ110mm chrome plated cylinders |
Φ130mm chrome plated cylinders |
Φ150mm chrome plated cylinders |
|
Maximum piston stroke |
40mm |
40mm |
50mm |
50mm |
|
Pressure gauge type |
Pointer type, pressure, pressure double-scale display, range 0-40Mpa, accuracy 1Mpa |
|||
|
Pressurized method |
Manual pressurization/compensation |
|||
|
Safety guard |
Plexiglass protective cover |
|||
|
The whole frame |
One-piece structure, the equipment has no seal link, reducing oil leakage points |
|||
|
Isostatic chamber size |
Φ22*70mm |
Φ30*120mm |
Φ40*150mm |
Φ50*150mm |
|
Cavity maximum pressure |
300Mpa |
300Mpa |
300Mpa |
300Mpa |
|
Dimensions |
305*195*530mm |
305*195*600mm |
355*215*710mm |
405*240*720mm |
|
Equipment weight |
90kg |
100kg |
130kg |
180kg |
|
Model Description |
Four columns, optional "S" digital pressure gauge, precision 0.01Mpa, more accurate pressure control |
|||
