Lab Infrared Quantitative Heatable Pressing Die

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PMH-600B
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

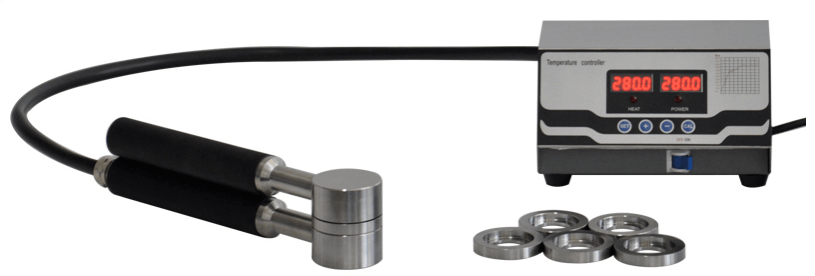

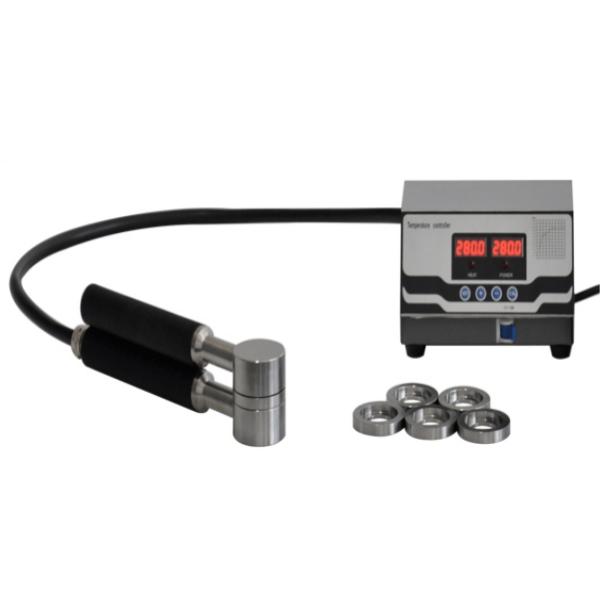

Lab Infrared Quantitative Heatable Pressing Die



Infrared Heatable Press Die


Parameter

Model

LITH-PMH-600B


Compressed sample shape



Heating temperature

Room temperature -300℃

Mold material

Alloy tool steel

Sample size

Φ25mm(d)

Sample thickness

15, 25, 50, 100, 250, 500um (6 quantitative loops)

Dimensions

200*60mm(D*H)

Power supply

200V/300W

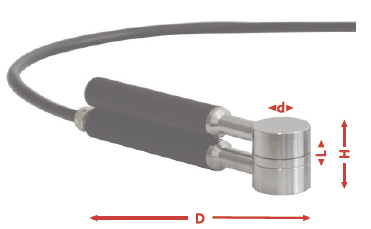

Dimension diagram

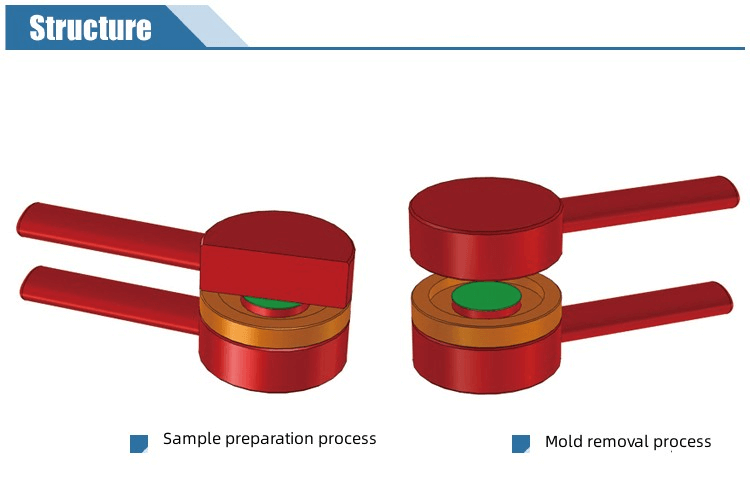

Schematic Diagram of Mold Operation

Infrared Heatable Press Die

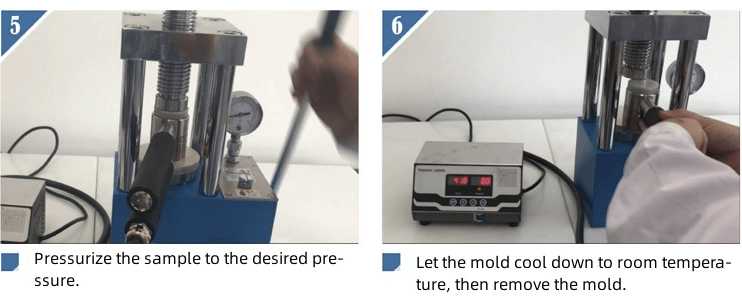

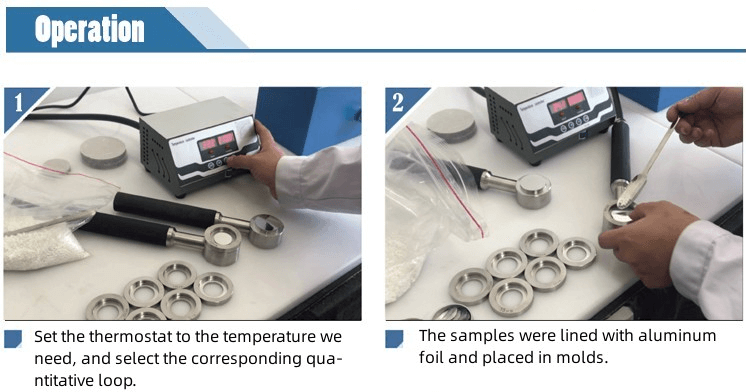

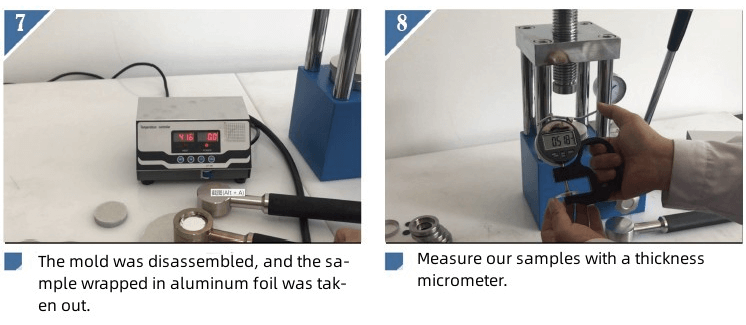

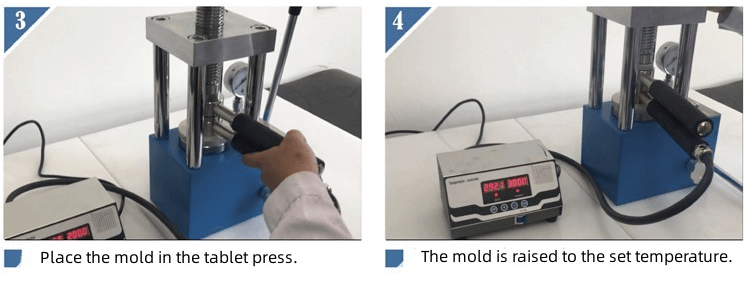

Mold sample preparation operation steps

Quantitative Heatable Press Die

Heatable Pressing Die

Heatable Pressing Die

Lab Heatable Press Die





Mold use and maintenance
