Lab High-heat 1400C Muffle Furnace Equipped with Sic Heating Element

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-SX2-70-14TPD
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

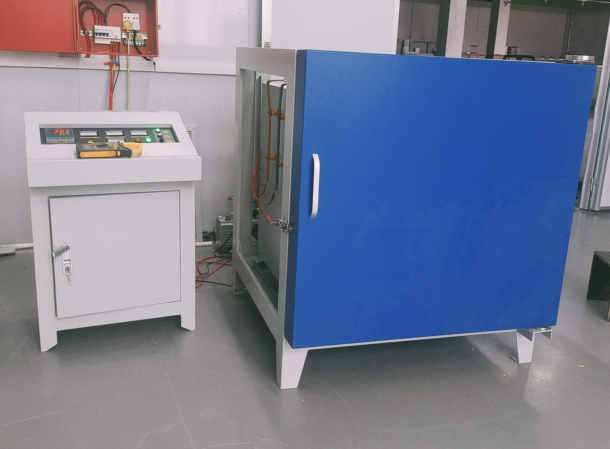

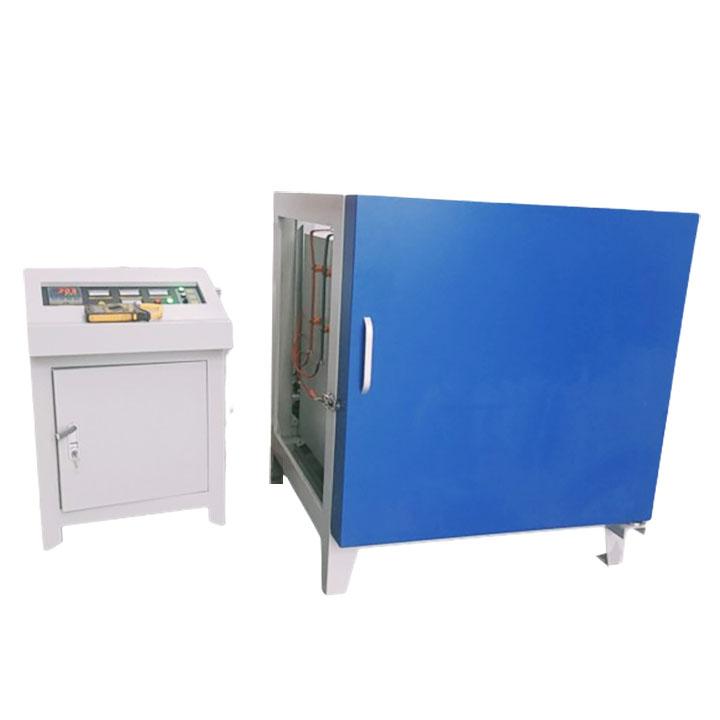

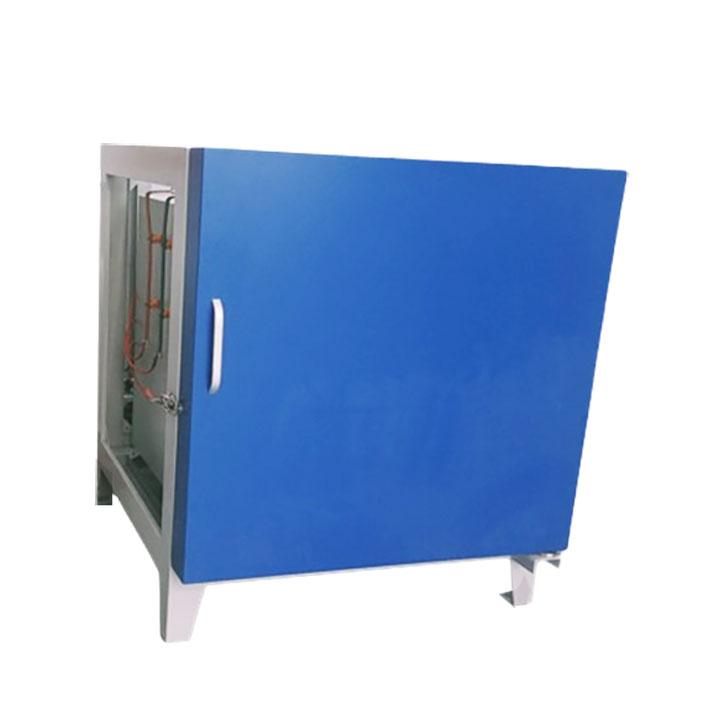

Lab High-heat 1400C Muffle Furnace Equipped with Sic Heating Element




The picture is just for reference



Main parameter

PN: SX2-70-14TPD

Max.Temp: 1400℃

Working temperature:0-1300℃

Chamber size:D800*W800*H600mm

Rated power:70kw(Subject to design)

Customized voltage:220v 3phase 50HZ/60HZ

Suggested heating rate:15℃/min

Heating element:Sic heater

Thermocouple:S type(overheating and couple breaking protection)

Temperature accuracy: ±1℃

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

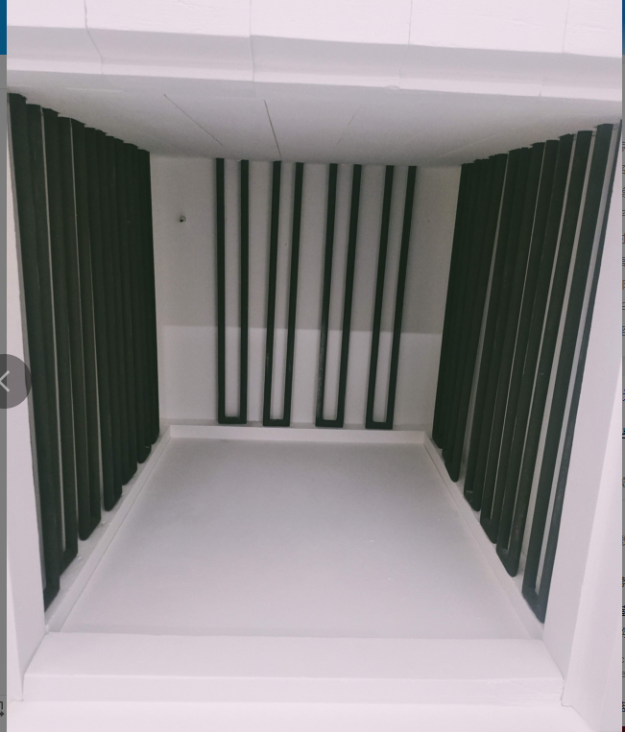

Furnace Chamber material

Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Temperature controlling

Separate control cabinet,Adopt international advanced Yudian temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.



Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,furnace chamber,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set



Heating element

2pcs



High temperature gloves

1 pair



Crucible clip

1 pc



User manual

1 book



Control cabinet

set
