Main parameter

Max.Temp: 1400（0-1300℃ Continuous working temperature)

Suggested heating rate:10℃/min

Heating element:Sic heater(Silicon Carbide)

Thermocouple：S type(overheating and couple breaking protection)

Temperature accuracy: ±1℃

Chamber size:D500*W400*H400MM(25KW)

Voltage:380v 2 phase  50hz/60hz

Furnace structure

1. Double layers forced air cooling structure,the temperature is less than 60℃.

2. Integrated compact design,stepped split joint structure,personalized furnace door and touch screen operation more convenient and practical.

3.Over-temperature protection,over-current overload protection,bias-temperature protection,burnout thermocouple warning,temperature setting ultra-high protection,temperature program ultrafast protection.

Temperature controlling

PID automatic control via SCR(silicon controlled rectifier)power control with phase angle fired,current limiting resistor.

30 segments “time-temperature curve”can be set arbitrarily.

Pre-stored 8 temperature curve(can increase more curve)

Warm Tips

      1.For improve the service life of the heating assembly , we suggest  that the           heating rate should not exceed 10 ℃ / min.

2.The cooling rate should not exceed 5 ℃ / min.

3.The furnace has no vacuum sealing and is prohibited from entering toxic or explosive gases.

4.Small cracks may occur on the surface of the furnace. This is a normal phenomenon, does not affect the normal use, cracks can be repaired with alumina coating.

5.Heating furnace can be replaced

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

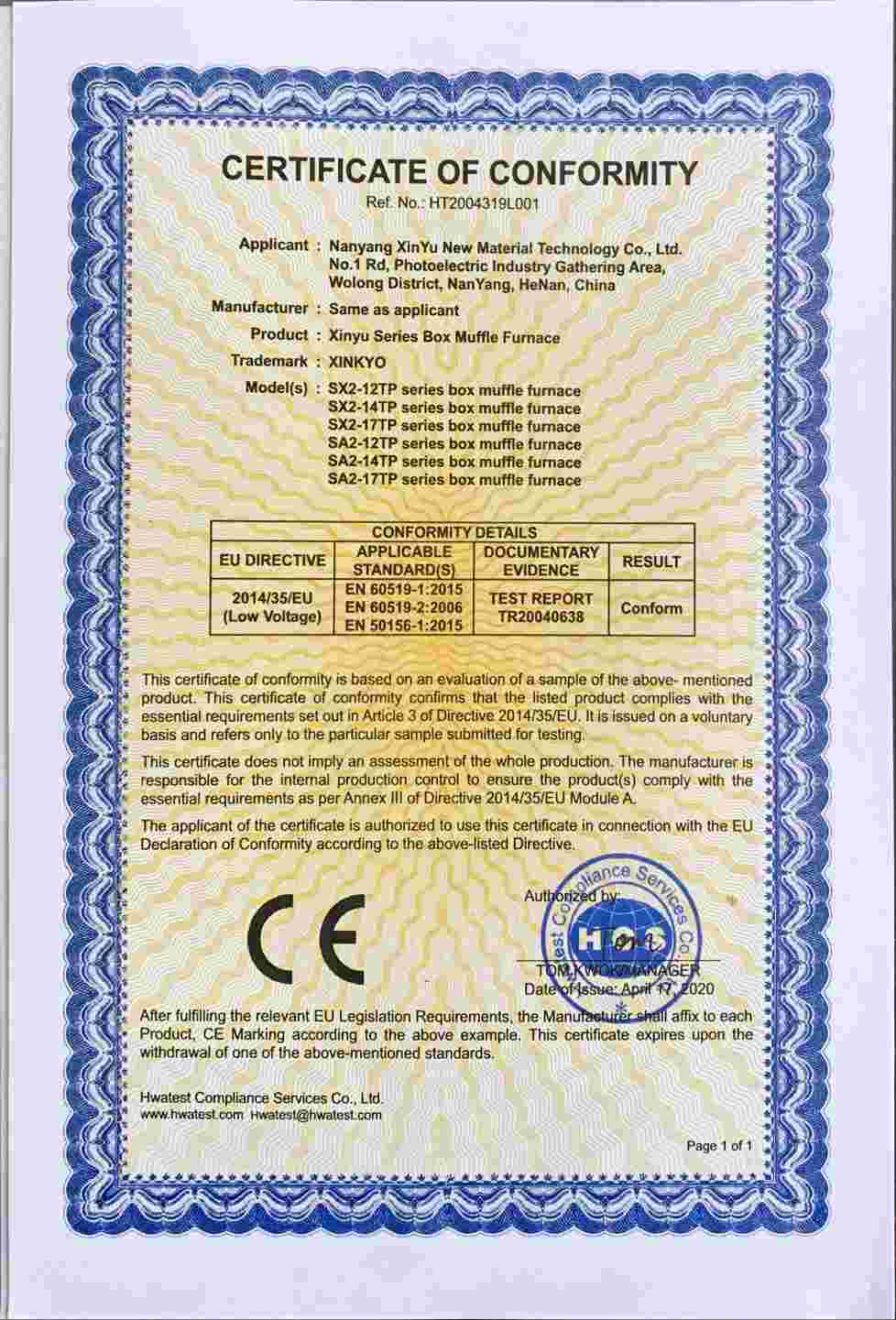

Certificates: CE,ISO&UL

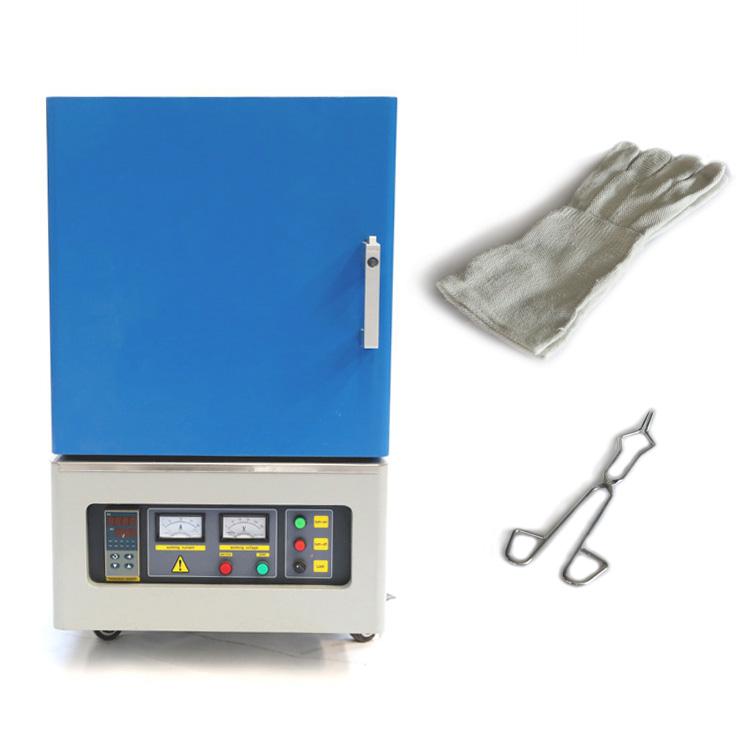

Standard Package Accessories

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible clip

1 pc

User manual

1 book

Door block

1 pc
