Lab 1200C 1100C Well Type High Vacuum Electric Furnace with Intelligent Touch Screen Temperature Controller

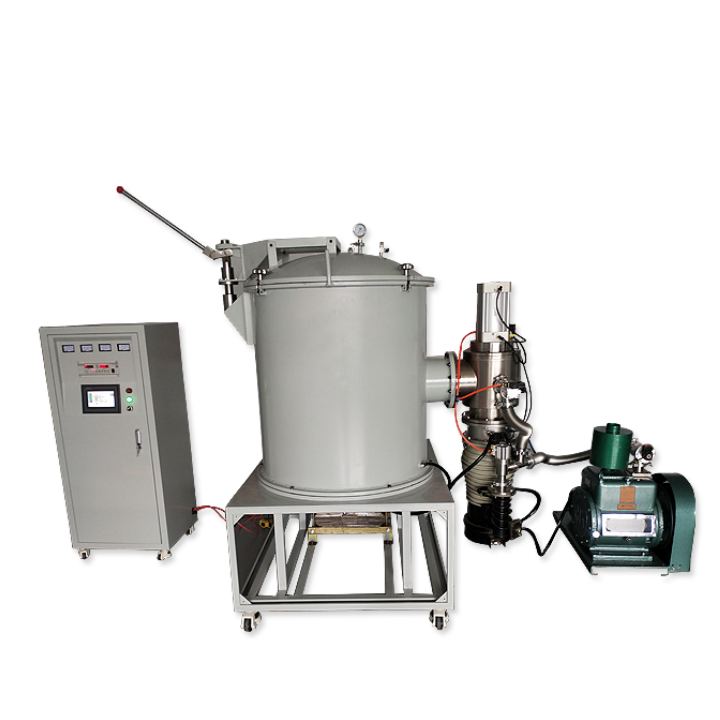

The picture is just for reference
The equipment introduction: The high vacuum furnace is widely used for heating treatment of metal materials in low vacuum,recursive,protective atmosphere,also can used for heating treatment of special materials,such as carbonization process of carbon products.The furnace chamber is ceramic fiber with excellent thermal insulation;Vacuum reservoir with water cooling system.
|
Technical Parameters |
||||
|
|
Max.design temperature： |
1200C |
||
|
Working temperature： |
≤1100C |
|||
|
Inner chamber size： |
D200*W200*H760 |
|||
|
Power |
14kw（subject to design） |
|||
|
Thermocouple |
K type |
|||
|
Max.vacuum |
6.65*10-3 Pa |
|||
|
Furnace chamber material： |
Chamber material is light alumina ceramic fiber,module, reasonable design, good heat preservation performance, saving energy. (Fireproof layer adopts vacuum forming ceramic fiber insulation layer adopts ceramic fiber ) |
|||
|
Furnace shell |
Internal stainless steel, external high strength carbon steel, external electrostatic spray, beautiful and generous |
|||
|
Surface temperature |
ouble layer water cooling structure, surface temperature ≤50℃. |
|||
|
Voltage： |
380V 3 phase 50HZ |
|||
|
Heating element： |
Resistance wire |
|||
|
Temperature accuracy： |
±1℃ |
|||
|
Heating rate： |
≤20℃/min |
|||
|
Door type |
Top loading |
|||
|
Heating medium |
In vacuum, direct thermal radiation heating |
|||
|
Advantage |
Low heat absorption, fast heating, energy saving |
|||
|
|
Temperature control |
Adopt Intelligent touch screen temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe. |
||
|
Vacuum system |
Double layer water-cooled inner stainless steel outer carbon steel vacuum tank, front and rear semicircle head. Built-in silicone ring seal, hand wheel lock. |
|||
|
Max.vacuum: 6.65*10-3 Pa(cold state) |
||||
|
The vacuum system consists of front-stage rotary vane pump and diffusion pump. |
||||
|
The vacuum display uses a Compound vacuum gauge, which is accurately measured by a resistance gauge and Ionization gauge . |
||||
|
Vacuum tank and vacuum pump connected with bellows, manual flapper valve control ect. |
||||
|
Water chiller (Specific specifications subject to design) |
Cooling capacity:8.5KW Water temperature control range 5~35℃ adjustable Temperature control mode constant temperature/start and stop adjustable Temperature control accuracy ±0.5℃/±3℃ adjustable Water tank capacity 50L Inlet and outlet size DN25 Power supply 380V 50Hz Total power 3KW |
|||
|
Warranty |
One-year warranty period, lifetime maintenance, (excluding related consumables, such as furnace heater, seals, etc.) |
|||
|
Standard Package Accessories: |
||||
|
Vacuum furnace |
1 set |
|
||
|
High temperature gloves |
1 pair |
|
||
|
Crucible clip |
1 pc |
|
||
|
User manual |
1 book |
|
||
|
Control cabinet |
1 set |
|
||
|
Cooling system |
1 set |
|
||
|
Vacuum system |
1 set |
|
||
|
Small tools |
1 set |
|||
Reference picture:
