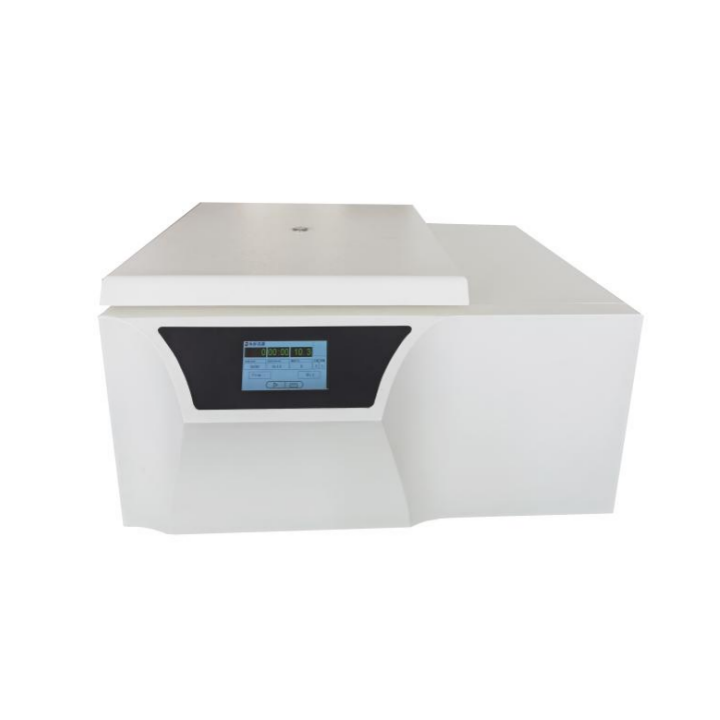

Desktop High Speed Large Capacity Refrigerated Centrifuge with 26500r/min Maximum Speed
This series of centrifuges is an advanced intelligent instrument, which is mostly used for collecting microorganisms, cell fragments, cells, large organelles, sulfuric acid precipitates and immune precipitates.
Drive: AC variable frequency motor drive. with soft brake function to prevent sample resuspension.
Display: Intelligent control, 7-inch HD touch screen, operating parameters can be automatically memorized, RCF can be set directly.
Refrigeration: Using imported fluorine-free compressor units and control valves, small vibration, fast refrigeration, low noise, to meet the requirements of environmental protection.
Rotor: Rotor standby cooling function. Autoclave rotor (121℃·20 min)
Fuselage: Fuselage adopts high quality steel structure; Stainless steel centrifugal chamber, durable.
Security: rotor number identification function, with door cover, overspeed, imbalance and other multiple protection functions, equipped with electronic security door lock to ensure safe operation.
Control: 10 kinds of lifting rate, can store 15 groups of programs, point function, short centrifugation, easy to diversify centrifugation.
Technical parameter
|
Model number |
TG26KR |
|
Maximum speed |
26500r/min |
|
Maximum relative centrifugal force |
50000×g |
|
Maximum capacity |
4×100mL |
|
Motor |
Ac variable frequency motor |
|
Speed accuracy |
±30r/min |
|
Timing Range |
Timing centrifuge:1min～99 min59sec Continuous centrifuge:Hold |
|
Temperature setting range |
-20℃～+40℃ |
|
Temperature control precision |
±1.0℃ |
|
Power source |
AC220±22V 50/60Hz 16A |
|
Machine noise |
≤60dB(A) |
|
Overall dimensions (L×D×H) |
720×743×410(mm) |
|
Net weight |
110kg |
Rotor parameter
|
No. |
Max speed |
Max RCF |
Rotor name |
Capacity |
|
NO.1 |
26500rmp/m |
50000×g |
Angle rotor |
12×1.5/2.2ml |
|
NO.2 |
26500r/min |
50000×g |
Angle rotor |
18×0.5ml |
|
NO.3 |
16000rmp/m |
24890×g |
Angle rotor |
24×1.5/2ml |
|
NO.4 |
16500r/min |
19170×g |
Angle rotor |
12×5ml |
|
NO.5 |
15000r/min |
23120×g |
Angle rotor |
12×10ml |
|
NO.6 |
15000r/min |
23640×g |
Angle rotor |
6×50ml |
|
NO.7 |
13000r/min |
18138×g |
Angle rotor |
4×100ml |
|
NO.8 |
13000r/min |
14740×g |
Angle rotor |
48×0.5ml |
|
NO.9 |
4000r/min |
2810×g |
Horizontal rotor |
4x8x15ml/4×100ml |
|
NO.10 |
14000r/min |
220220×g |
Angle rotor |
12×15ml |
|
NO.11 |
4000r/min |
2300×g |
Elisa plate |
2x2x96 hole |
