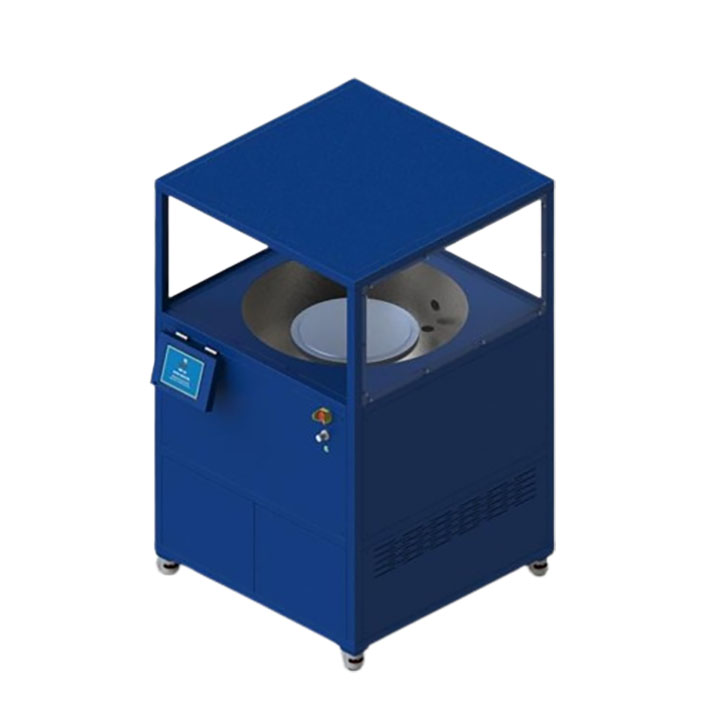

Cabinet Type Vacuum Spin Coating Machine with 600mm Optional Substrate Size
Key Features：
1. Standing cabinet type glue leveling machine
2. Can support spin coating on substrates up to 450mm.
3. Speed: 50-3000RPM.
4. 8-inch true color touch
Spin Coater Specifications
|
Substrate size |
200-450mm （standard）/200-600mm（ optional） |
|
Speed range |
50-3000RPM |
|
Acceleration range |
10- 1000RPM/S |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Human machine interface |
8-inch touch screen |
|
Communication interface |
USB (standard)/RS485 (standard)/Bluetooth (standard) |
|
Turn around |
Support forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Vacuum Pump |
SC-550V |
|
Set data |
Unlimited groups of data, each group has 15 speeds (standard) or unlimited speeds (optional) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Data protection |
default with power-down protection |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
5KW |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
1000mm(W)X1000mm(D)X1650mm(H) |
|
Weight(Spin Coater) |
200KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
