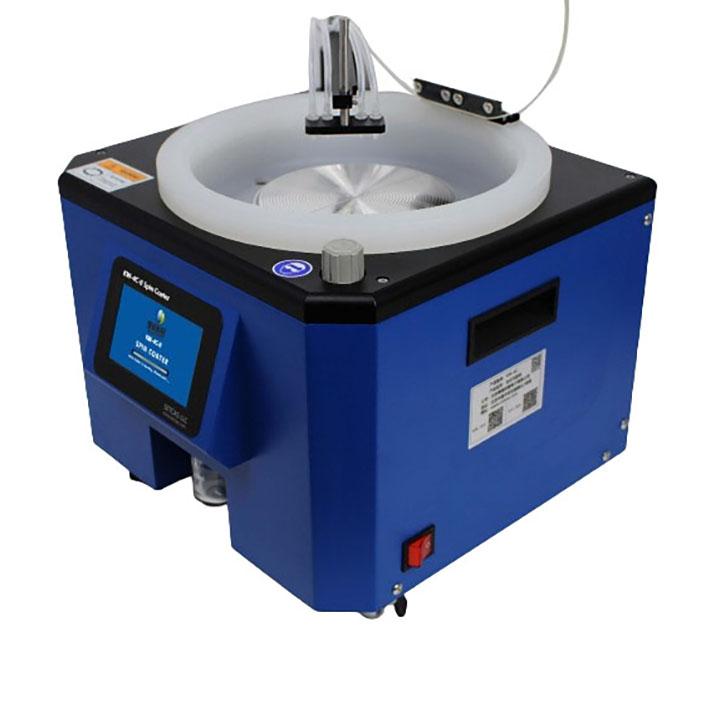

Hot Selling Desktop Vacuum Spin Coating Machine with Automatic Swing Arm
Key Features：
1. Anti-flying chip protection and alarm, formula with power-offprotection function
2. Anti-glue protection and alarm, integrated anti-glue system, supporting development system, and supporting anti-glue plate holder
3. The adsorption force is adjustable, can be displayed, and can be monitored in real time. If the adsorption force is insufficient, it will alarm, prohibit starting and stop immediately.
4. The motor can rotate forward and reversely
5. Adjustable acceleration (acceleration: 10- 10000RPM/S, speed range: 50- 12000RPM)
6. With communication interface: USB, external mouse and keyboard, transfer recipes through U disk
7. With cover opening protection function
8. Integrated 4-way glue application and development pipeline, with automatic swing arm, 2-way glue dispensing, and 2-way development
Spin Coater Specifications
|
Substrate size |
5mm to 150mm（ 6 inches） |
|
Speed range |
50- 12000RPM |
|
Acceleration range |
10- 10000RPM/S， Adjustable |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Glue coating and developing system |
Integrated 4-channel glue application and development management, standard 2-channel automatic glue application and development module |
|
Human machine interface |
4.3 inch touch screen |
|
Communication interface |
USB interface, can be connected to the wireless mouse and keyboard: the machine can be placed in the glove |
|
Turn around |
Can rotate forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Vacuum Pump |
SC-550V |
|
Set data |
Unlimited group data, each group of 10 speeds (standard) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Data protection |
With power-down protection function by default |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Adjustable vacuum adsorption force |
Yes |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
200W |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
210mm(W)X220mm(D)X160mm(H) |
|
Weight(Spin Coater) |
10KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
