Model

LITH-ZJYP-20T

Pressure range

0-20T

Piston diameter

Chrome-plated cylinder Φ110mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

LCD

4.3 inch LCD screen

Equipment protection

Steel protection with plexiglass door

Isostatic pressure

300MPa

Isostatic chamber

Φ30*150mm(M*N)

Cylinder stroke

50mm(T)

Sample preparation characteristics

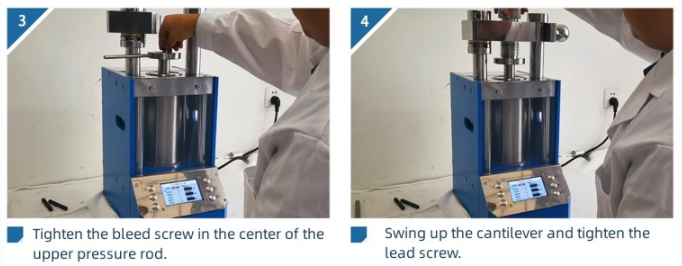

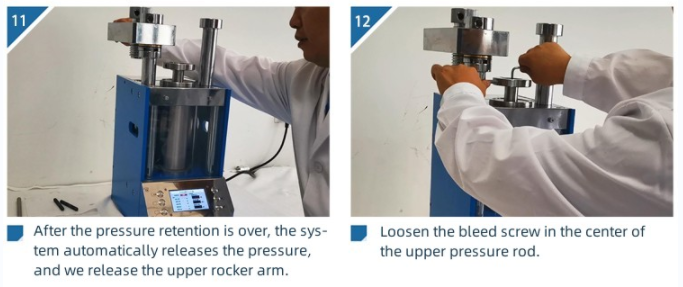

The upper plate rocker structure makes the operation more convenient

Dimensions

240*390*560(L*W*H)

Device power

220V/1500W

Equipment weight

120kg

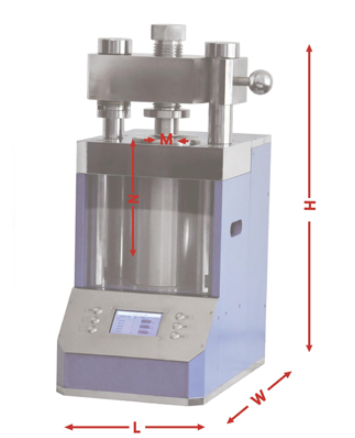

Tablet press size diagram
