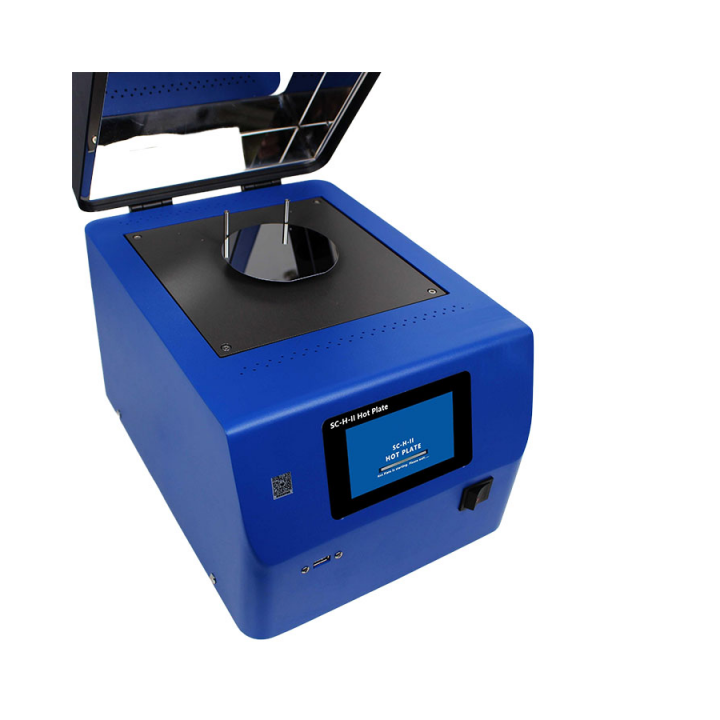

200X200mm Hot Plate Dimension Glue Baking Machine or Dryer Machine with Vacuum Function
Key Features：
1. Include pass nitrogen function, vacuum function and set the jacking range function.
2. Jacking range 0-30mm, automatic positioning.
3. 10 segments of N groups of formulas can be set, the formulas can be exported, and the mouse and keyboard can be connected externally.
4. Global service network, simple and practical, solving practical problems, San Diego, USA, Hong Kong, China service center.
5. Designed by the American Setcas team and assembled in China, it is cost-effective.
Hot Plate Specifications （SC-H-II）
|
Brand |
TMAXCN |
|
Origin |
R&D by American team, production and assembly in Beijing |
|
Product Features |
Can pass nitrogen, can be evacuated, and can set jacking range |
|
Jacking range |
0-30mm Can be positioned arbitrarily |
|
Indoor temperature |
450 degrees, temperature can be continuelly adjust |
|
Formula |
10 segments, N groups of formula |
|
Peripherals |
The formula can be exported, and the mouse and keyboard can be connected externally |
|
Constant temperature fluctuation |
±0.5 ℃ |
|
Temperature uniformity |
±0.5 ℃（ Temperature uniformity everywhere on the worktable at the highest temperature） |
|
Nitrogen pressure |
0.2-0.8MPA |
|
Hot plate dimension |
200X200mm(8 inch) |
|
Product dimension |
270(W)×379(D)×271(H)mm |
|
Weight |
6.5KG |
|
Voltage |
AC100-240V, single phase, 1KW |
|
Package Size |
48x 39 x 38cm |
|
Shipping Weight |
＜10KG |
|
Ambient temperature |
0-40℃ |
|
Relative humidity |
＜85% |
|
Installation method |
Place on a horizontal desktop |
|
Warranty |
1 year |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
