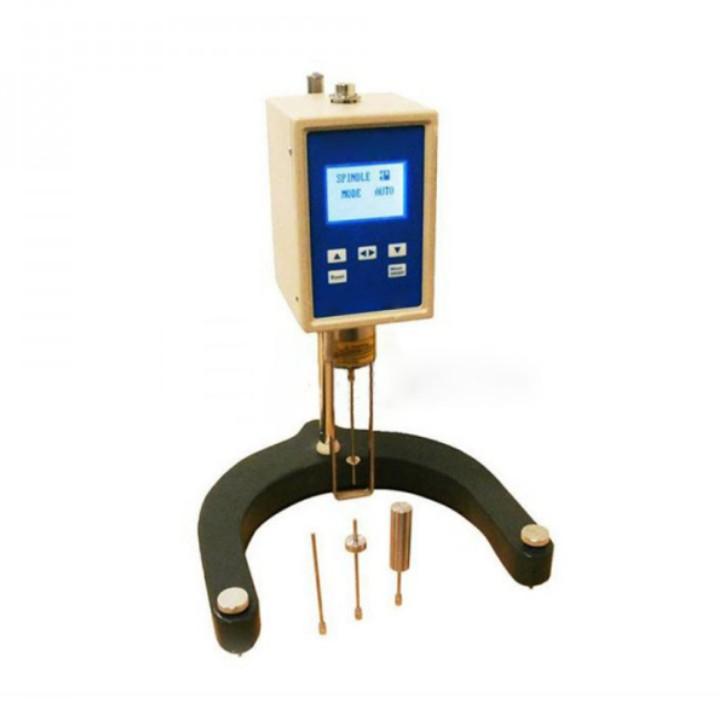

SNB-2 Digital Rotary Viscometer
Product overview:
SNB-2 digital rotary viscometer is a new digital product which is developed by using monolithic microprocessor technology to measure the viscous resistance and absolute viscosity of liquid.Compared with similar products, it has the advantages of high measuring accuracy, stable viscosity value display, easy to read, simple operation and good anti-interference performance.Widely used for measuring the viscosity of battery electrode coating slurry, so as to facilitate the adjustment of electrode slurry to achieve the best mixing effect; Can also be used for paint, food, medicine, adhesives and cosmetics and other fluid viscosity measurement.
Product features:
The use of programmed motor, mains frequency change does not affect the measurement accuracy;
The measurement accuracy is high, the viscosity value is stable;
Easy operation, good anti-interference performance;
Equipped with RS232 interface, can communicate with computer;
Technical parameters:
|
Power supply |
Voltage single-phase AC 220V±10%, frequency 50Hz±10% |
|
Power |
50W |
|
Environment for use |
Ambient temperature: 5℃~35℃, relative humidity is not more than 80%, no strong electromagnetic interference, no violent vibration, no corrosive gas near the product |
|
Measuring range |
10 mpa, s ~ 100000 mpa, s |
|
Rotor specification |
Four types of rotors, size 1, 2, 3 and 4 |
|
Rotor speed |
6 RPM, 12 RPM, 30 RPM, 60 RPM |
|
Method of measurement |
Manual, automatic |
|
Measurement error |
±2% (F.S) (Newton's liquid) |
|
Overall dimensions |
105mm x 120mm x 160mm (not including base) |
|
Net weight |
2.5kg (not including base) |
