No.

Accessory Name

Quantity

Unit

Accessory pictures

1

KF40 Clamp

4

sets

2

KF25 Clamp

3

sets

3

KF40 Bellow

2

pcs

4

KF25 Bellow

1

pc

5

Gloves

8

pcs

6

Glove seals

16

pc

7

Eduard vacuum pump

1

pc

8

Oil mist filter

1

pc

9

Water Analyser

1

pc

10

Oxygen analyser

1

pc

11

Instruction manual

1

pc

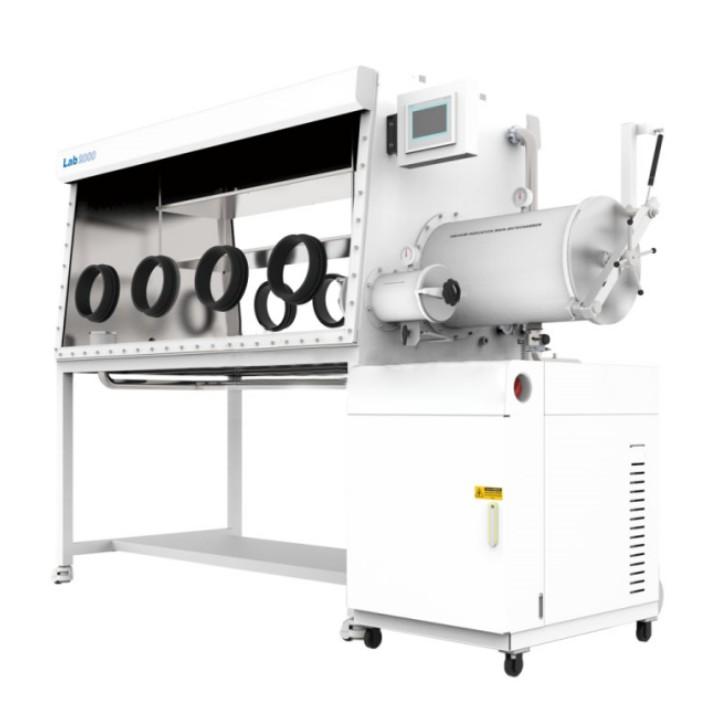

Boxes

Description

Material: Stainless steel 1.4301, thickness 3 mm

Net dimensions: 1800mm(L) x 1000mm(W) x 900mm(H)

Volume

1.6m³

Front window

Panel: 8 mm thick safety toughened glass or 10 mm thick polycarbonate (optional)

Dimensions: 1735mm(L) x 839mm(H)

Glove opening

Hard aluminium or paraformaldehyde (optional)

Calibre 220 mm, O-ring seal

Gloves

Material: butyl rubber

Thickness: 0.4 mm or 0.8 mm (optional)

Filters

Outlet and inlet filters, filtration <0.3μm

Lighting

LED lighting in the upper part of the front window roof

Leakage rate

Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test.

GP20 gas purification system

Description

Automatic removal of H2O and O2

Single clean-up column system with automatic regeneration (optional GP200 double clean-up column)

Sealed gas circulation lines

Voltage used

AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)

Working gases

Working gases: N2, Ar, He (purity ≥ 99.999%)

Regenerative gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%)

Vacuum pumps

Specifications: Rotary vane vacuum pump with oil mist filter, with gas ballast control

Flow rate: 12 m³/h (7 cfm), double baseplate, vacuum < 2 x 10-3 mbar or dry pump (optional)

Circulation units

Oil-free high-speed fans

Air volume: 80 m³/h

Valves

KF40 High vacuum valve

Leakage rate

Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test.

Control cabinet dimensions

600mm (L) x 800mm (D) x 870mm (H)

Transition cabin

Large Transitional Cabin

Materials

Stainless steel type 304(1.4301), thickness 3 mm

Size

φ360mmx600mm(L) or φ390mmx600mm(L) (optional)

Vacuum level

< 1 x 10-2 mbar

Small Transitional Cabin

Materials

Stainless steel type 304, thickness 2 mm

Size

φ150mm x 330mm(L)

Vacuum level

< 1 x 10-2 mbar

Cleaning systems

Description

By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber.

Analyzers

Oxygen analyser

Size

205 mm (L) x 80 mm (W) x 60 mm (H)

Measurement range

0-1000 ppm

Other Oxygen Analysers

GE oxy.IQ™ Oxygen Transmitter

Moisture analyser

Size

205 mm (L) x 80 mm (W) x 60 mm (H)

Measurement range

0-500 ppm

Other water analysers

GE VeriDri™ Dew Point Transmitter

Solvent purification systems

Description

Material: Stainless steel (SUS type 304), thickness 3 mm

Internal dimensions: 220mm(Φ) x 450mm(H)

High quality activated carbon

Optional equipment

Refrigerator

Independent control system, integrated in the side panels of the chamber, temperature -35°C, volume 18L or 32L

Main body 304 stainless steel tubes, 5 variable compartments

R404 environmentally friendly refrigerant, originally imported

Heated cabin

Large transition configuration heating system at 200°C with ±1°C temperature control
