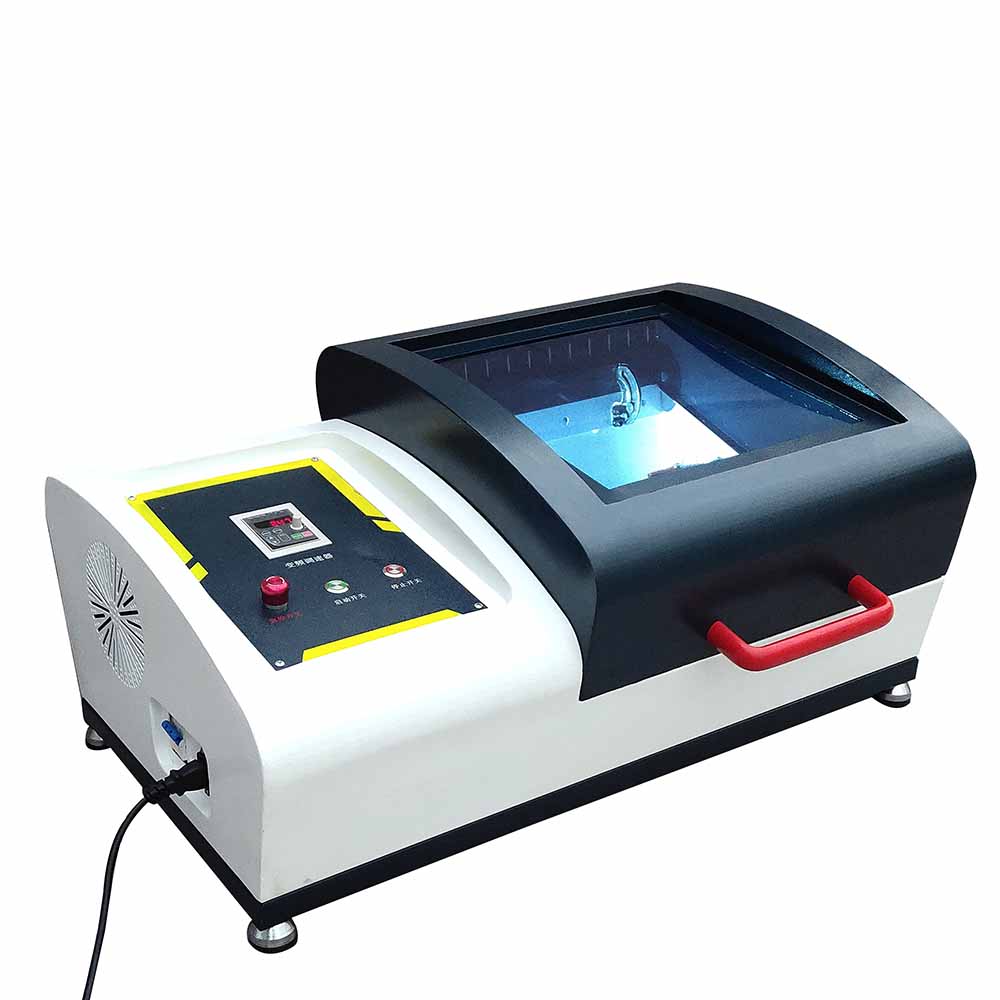

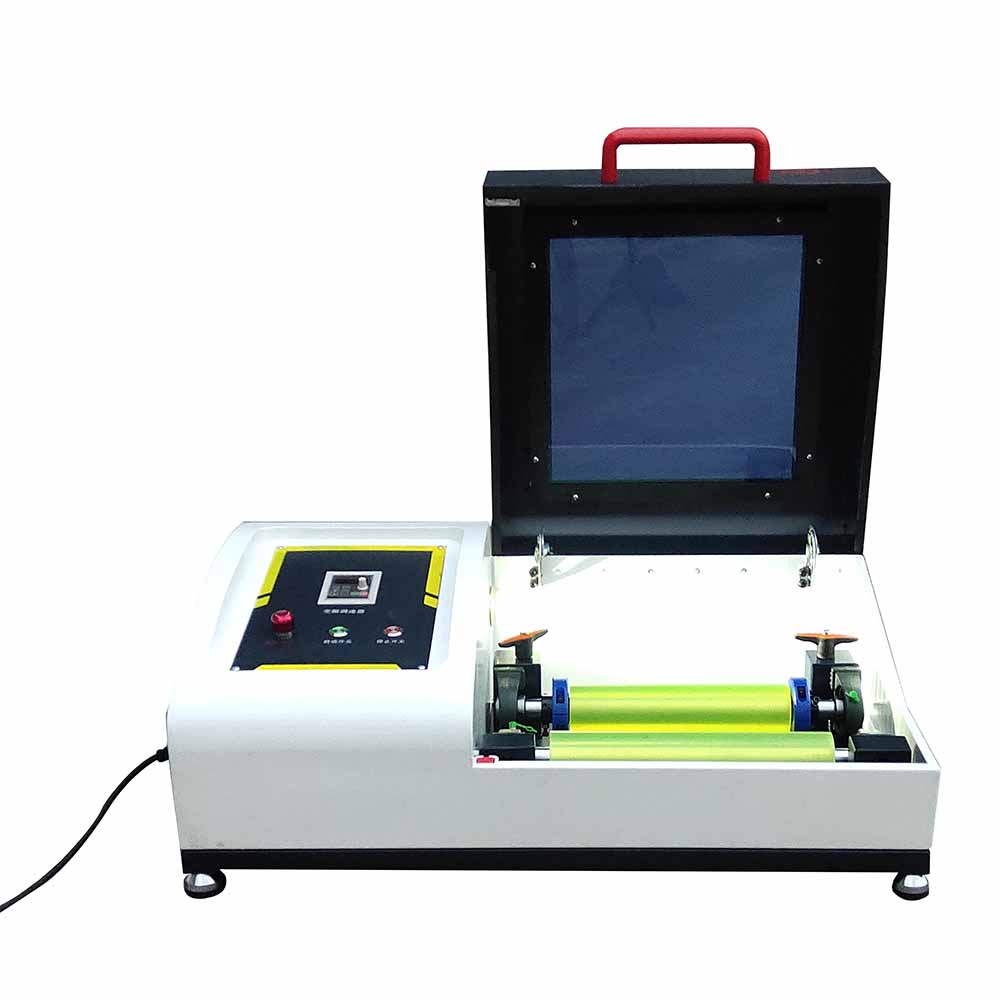

Lab Small Roller Ball Mill Device for Grinding

Introduction

The principle of laboratory roll ball mill is the same as that of tank mill. It is suitable for fine grinding, grinding, dispersing, mixing, material precipitation prevention and other process requirements of single tank material

The machine is compact, convenient to put the laboratory table and handling, is the scientific research, teaching, testing, production of preferred equipment.



Application

Laboratory roll ball mill is a laboratory, small batch production with ultra-fine grinding, mixing equipment.

This machine is beautiful and novel, compact structure, easy to operate, high efficiency, uniform grinding particle size, is the scientific research, teaching, test, production of preferred equipment.

Can be widely used in electronic materials, magnetic materials, biological medicine, ceramic glaze slurry, non-metallic ore, metal ore, new materials and other industries.



Characteristics

1. The equipment is compact in structure, compact in volume, convenient in handling and simple in operation;

2. High working efficiency, uniform grinding of fine granularity;

3. Can be compatible with different sizes of different materials of the ball grinding tank;

4. Easy and quick to take and change cans;

5. Timing, intermittent shutdown or continuous cycle operation;



Parameter

Pruduct Name	LBM-5	LBM-15
boundary dimension(mm)	800*420*380	900*440*400
Weight(kg)	40kg	55kg
Roating of machine	Y0.37-483	Y0.75-483
Inverter specifications	0.4KW/single phase220V	0.75KW/single phase220V
Main roller speed(r/min)	60-630	60-630
Maximum load per tank	35KG	80KG
Adjustable spacing between rollers	150	170
Station length	260	340
