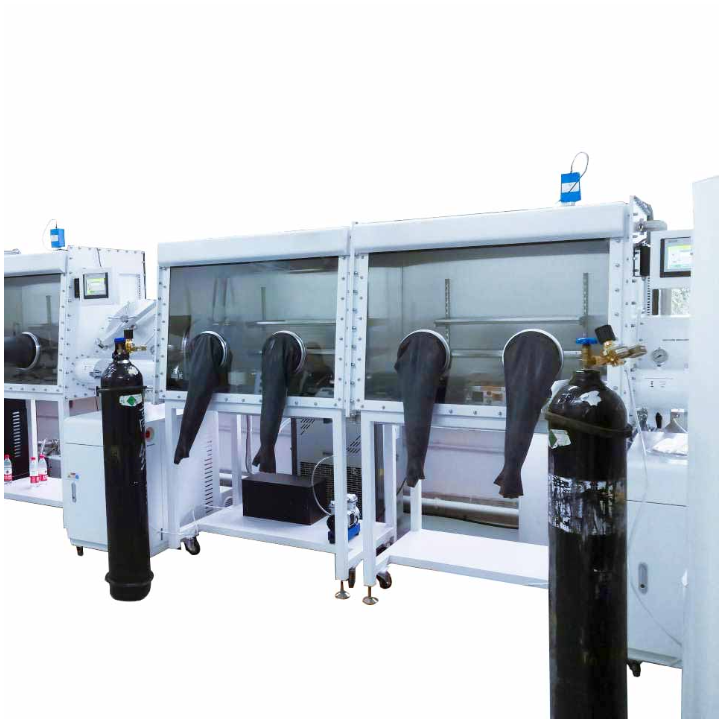

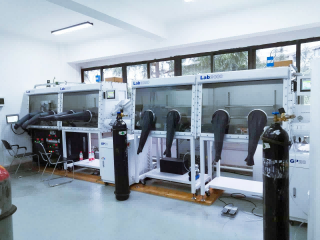

Lab Single Side Four Station Glove Box with Circulation System

I. Acceptance criteria:

Under the standard condition, i.e. 20-25 oC constant temperature, 65% relative humidity, 99.999% inert gas source, the empty chamber circulating water oxygen index are reached less than 1ppm.

English panel, English operating screen.

II. The main technical indicators and configuration

1. Box

1.1 Dimensions: 4800mm (L) × 900mm (H) × 750mm (W) single-sided. 4 sections of 1200 single-sided glove box through the flange link and become.

1.2 Material: full stainless steel structure (Type 304), thickness 3mm.

1.3. Filter: pore size 0.3 micron

1.4 Butyl rubber glove: U.S. original import thickness 0.4mm, glove mouth 8 inches, hard aluminum alloy glove mouth (after anti-corrosion treatment, anodized aluminum), diameter 220mm.

1.5 Window: tilt design operating surface, removable 8mm safety tempered glass front window, wear-resistant, corrosion-resistant, good light transmission, sealing ring using 3/8 inch thick OMEGA seal.

1.6 The use of a certain positive and negative pressure can be maintained (-10mbar-10mbar)

1.7 The box is equipped with anti-reflective lighting energy-saving lamps, soft light.

1.8 The box is equipped with display board 2 shelves

1.9. The box is equipped with a multi-hole power supply terminal block (power supply: 220V ± 10% 50Hz ± 10%)

1.10. The box can be set up with 12 standard KF-40 interface.

1.11. Leakage rate: ≤0.001vol%/h

1.12. Steel structure support, including casters 950 mm high, installed with universal casters.

2. Transition compartment

2.1 Shape: cylindrical (304 stainless steel), connected with the glove box, with shaft lock type large transition compartment door, easy to operate.

2.2 Dimensions: 360mm diameter, 600mm long, piston door with reflective screen, transition chamber with sliding tray, polishing, the box set another small transition chamber, specifications: 150mm diameter, 300mm long, manual valve control pumping and gas replenishment.

2.3 Tray: stainless steel 260mm × 580mm, can be freely moved and extended (large over-compartment configuration)

2.4 The vacuum degree ≤ 1 bar (large and small right over-compartment are required to pump vacuum with display)

3. Control system

3.1. Mode: including self-diagnosis, power failure self-starting characteristics, with pressure control and self-adaptive function. Automatic control, cycle control, password protection, vacuum chamber control adopts LCD display. Unit control adopts Siemens PLC touch screen.

3.2. Pressure control: control the pressure of the box and transition chamber at a certain setting value.

a) User can set any working pressure range between +12.5 to -12.5 mbar, PLC will automatically regulate the chamber pressure within the set range. The default value of the working pressure range is -1 to +3 mbar.

b) When the box pressure is greater than 12 mbar, the PLC automatically opens a safety valve to relieve pressure to protect the gloves, equipment and materials inside the box.

c) Use the foot switch to fine-tune the box pressure.

3.3. Foot pedal: It can control the pressure of the glove box and facilitate the operation.

4. Circulation system (including purification and regeneration system)

4.1. Germany BASF, the United States UOP purification materials, Germany Bauder valve. Host system integrated modular design, fully automatic electronically controlled gas solenoid valve set, PLC control, circuit, circulation pump, purification live, display integrated into an independent purifier, constitute a compact, simple system.

4.2. Control: water, oxygen control in less than 1PPm

4.3. Adjustment device: Adjusted by PLC touch (heating, evacuation, purification, regeneration) the whole process except 2.5 hours ventilation without human monitoring.

4.4. Working gas: He.N2/ or Ar gas (gas circulation)

4.5. Circulating fan: 0-100m³ high-speed frequency conversion fan, microprocessor control, pressure-tested stainless steel device.

4.6. Purification column: single purification column, imported purification material German BASF oxygen removal material 5kg, the United States UOP high efficiency water absorption material 5kg, very high life degree, to ensure that the user in the use of the product's purification ability long lasting. Water removal capacity 2㎏ oxygen absorption capacity 60L.

4.7. Purification valve: fully automatic electro-pneumatic valve.

4.8. Filter: High efficiency filter with 0.3 micron aperture filter that meets HEPA standard.

4.9. Regeneration: used for reuse of purification system to activate it; regeneration requires a mixture of helium/H2, nitrogen/H2 or argon/H2, of which H2 accounts for 10%. The regenerated gas is first flow meter and then into the purification column.

5. Display system.

Germany SIEMENS, unit control using Siemens PLC touch screen. Bilingual in Chinese and English can be switched.

6. Vacuum system

Add vacuum pump start/stop time control. The vacuum pump is British Edwards vacuum pump, model RV12, flow rate 12m3/h, ultimate vacuum 2x10-3 mbar. The vacuum can be pumped to the transition chamber separately, and can be controlled separately at any time. (Imported from abroad)

7. Automatic cleaning of chamber

Automatic chamber cleaning function. Different nature of the gas environment replacement and misoperation into the water, oxygen fast box body automatic cleaning. Box automatic cleaning valve to the box body pipeline integration at the use of KF25 containing steel wire solenoid tube firmly connected to the external interface KF25 pagoda joint.

III. The main technical indicators and configuration

1. Water analyzer, (imported from abroad) Brand material: Britain MICHELL / (according to customer use environment decision)

Non-domestic or domestic assembly, third-party data to ensure the credibility.

1) Measuring range: 0-1000ppm

2) Accuracy: ±1% ppm

3) Display: The output of the analyzer is connected to PLC, the detection value is displayed on the touch screen, and the alarm value can be set.

4) Control: The gas circulation system can be controlled according to the user's setting to realize the circulation drop.

5) Environment: -10℃-50℃

2. Oxygen analyzer, (imported from abroad) Brand material: American AVCRAY (according to customer use environment decision)

Non-domestic or domestic assembly, third party data to ensure credibility.

1)Measurement range can be set: 0-1000, ppm

2)Environment: -10℃-50℃

3)Accuracy: ±1% ppm

4)Installation position: oxygen sensor is installed on the box, regardless of gas circulation or not, the oxygen sensor uninterruptedly detects the atmosphere inside the box and displays the oxygen content in the glove box.

5)Sensor: electrochemical material battery, the advantages of which are accurate zero point, small drift, avoid other battery materials easily corroded; low replacement cost (only replace the oxygen cell).

6) Display: The output of the analyzer is connected to the PLC, and the detection value is displayed on the touch screen, and the alarm value can be set.

Control: Users can choose the automatic cycle function to maintain the oxygen content in the glove box within the user's specified range.

IV. Organic solvent adsorption system

  In order to prevent the influence of organic solvents on the purification column, a solvent column is connected in series to the glove box system, the medium is mainly high quality and efficient activated carbon and activated alumina to prevent the formation of hydrofluoric acid. The organic solvent adsorption system is filled with 7KG, there is KF40 interface at the top and bottom of the column for easy material change, and users can change the material by themselves. In order to prevent the formation of hydrofluoric acid, half of the solvent column tank is activated alumina.

V. Main configuration

Detailed delivery list

Remark:

1. Wooden box for export, desiccant to be placed inside the box.

2. English panel, English operating screen.

3. Power plug and equipment inside the plug board customer specified

4. Print the logo provided by the customer, the model is not written
