Name

Micro three-roll mill

Model

SD50

Roller diameter mm

50

Roller working length mm

150

Roller material

Steel roller/zirconia ceramic roller

Fast roller speed r

580

Roller speed ratio

4:2:1

Motor power w

150

Dimensions mm

350*250*300

Machine weight kg

20

Baffle material

Teflon baffle

Blade material

Stainless steel blade

Roll adjustment method

Adjust the roller gap using the equidistant knob

Characteristic:

1. The frequency conversion speed control device is used to adjust the different speed requirements of different viscosity materials.

2. The spring is tight, and the scraper seat can more effectively ensure the discharge effect

3. Adjustable scraper tightness

4. Small size, save space

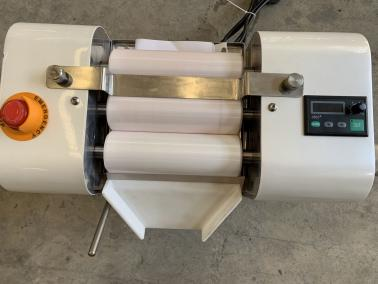

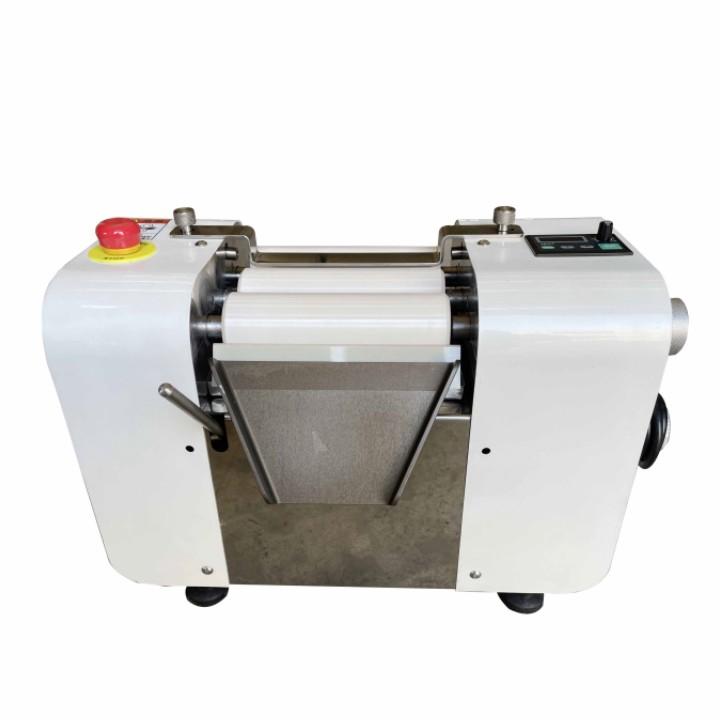

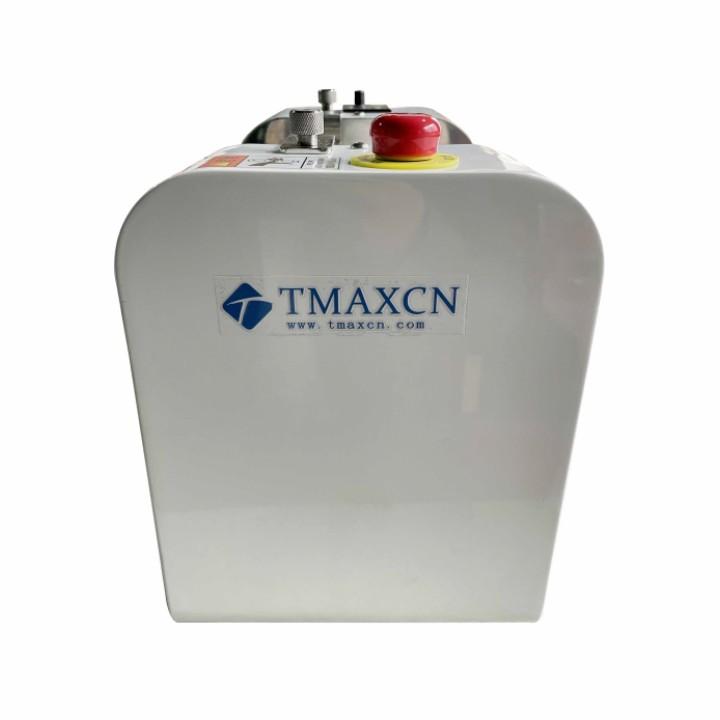

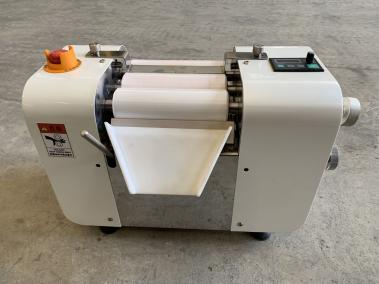

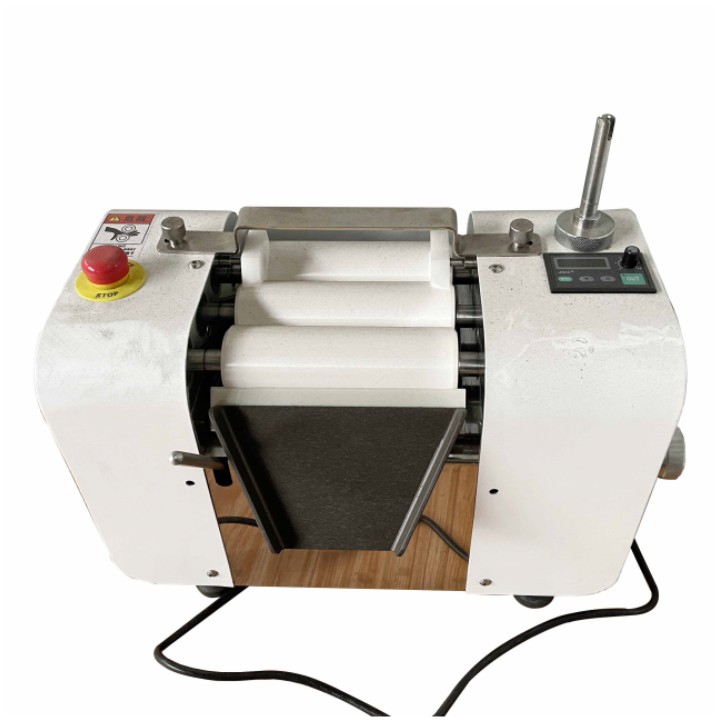

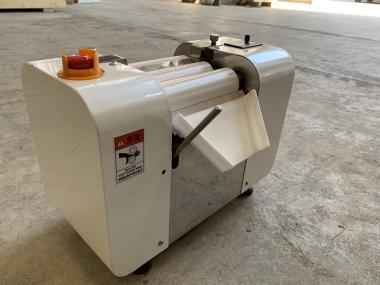

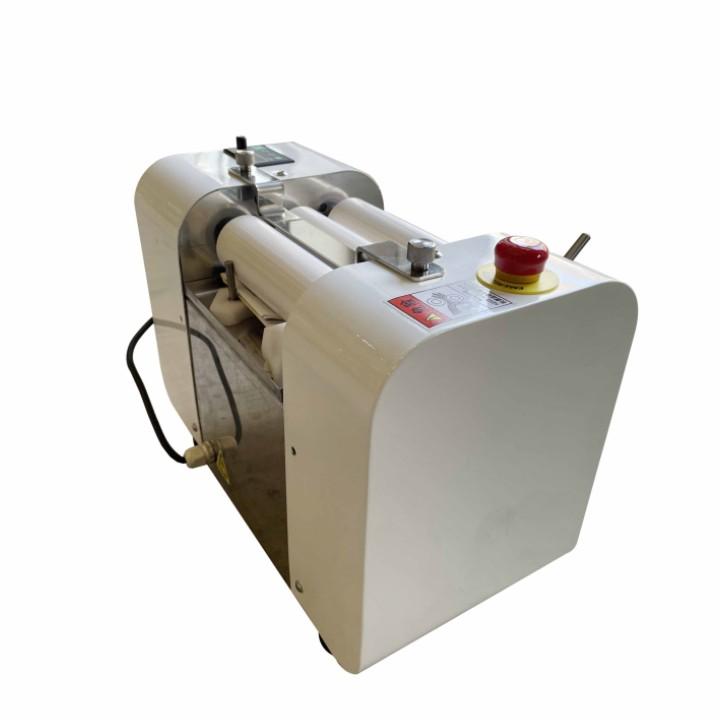

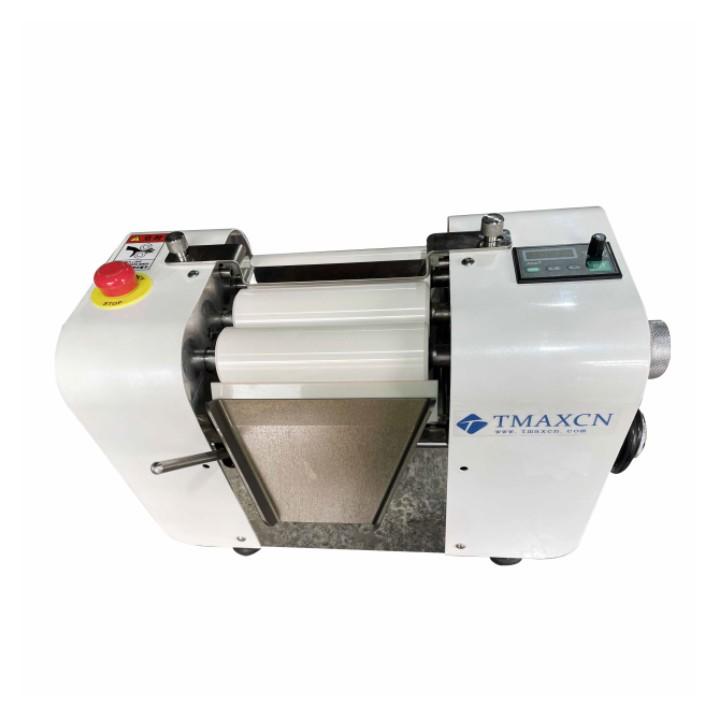

The image is only a reference
