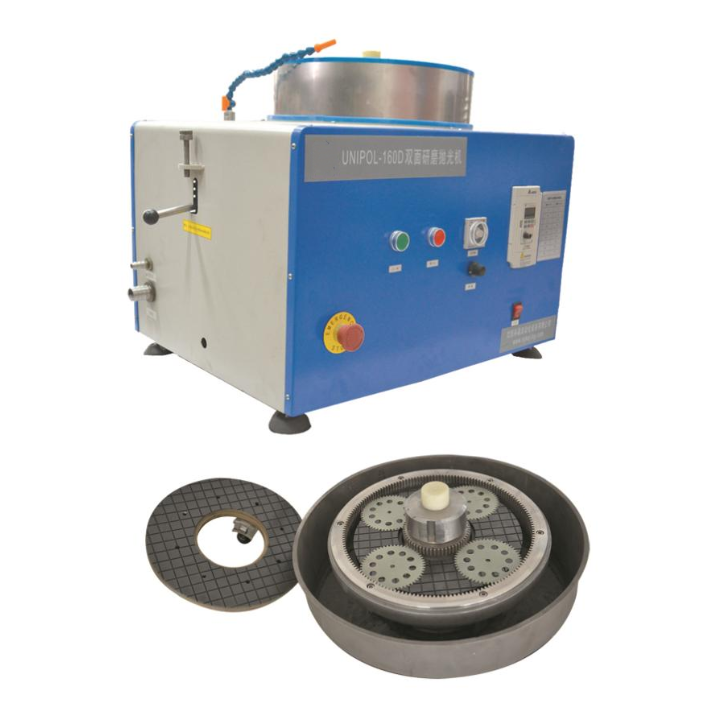

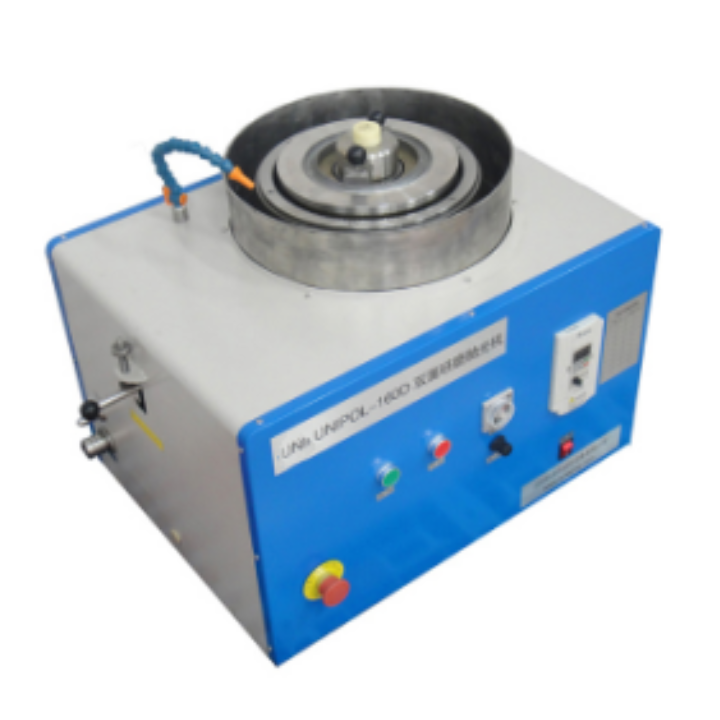

Lab Double Sides Grinding and Polishing Machine
|
|
|
|
|
|
|
|
Introduction

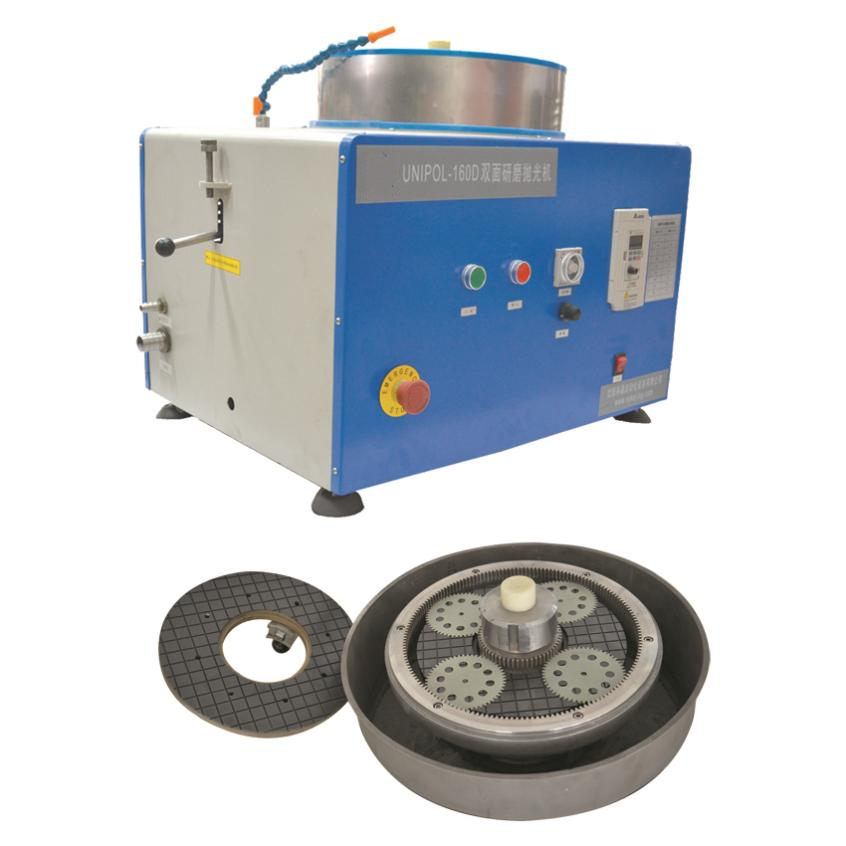

UNIPOL-160D double-sided grinding and polishing machine is mainly used for double-sided precision grinding and polishing of quartz wafers, sapphire, ceramics, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium and other crystals), glass, metal and other sheet materials. This machine adopts turbine worm gear reducer as the transmission mechanism, through the gear set to realize the upper, middle and lower three axes of different speeds and different directions of rotation, so that the upper and lower grinding and polishing discs and the middle sun wheel to produce a difference in speed as well as the relative movement, and the samples are placed in the inner hole of the sample-carrying planetary gears driven by the sun wheel, so as to carry out double-sided grinding and polishing of the samples.UNIPOL-160D Double-sided Grinding and Polishing Machine can be selected by using the grinding The UNIPOL-160D double-sided grinding and polishing machine can choose to grind the sample with a grinding disk and abrasive, or a polishing disk with sandpaper. The polishing disk with sandpaper is used to attach the sandpaper to the polishing substrate and then attach the substrate to the polishing disk for grinding and polishing. Multiple samples can be ground at the same time, grinding and polishing efficiency is high, suitable for a large number of specimens grinding or small batch production in factories.
Features
· The speed is controlled by manually adjusting the frequency of the inverter.
· Four Ø2" substrates can be simultaneously buffed and polished on both sides.
· Both sides of the sheet can be thinned.
· Ideal tool for double-sided grinding and polishing Si, Ge, oxide single crystal substrates.
Technical parameter
|
Product Name |
UNIPOL-160D Double-sided grinding and polishing machine |
|
|
Product Model |
UNIPOL-160D |
|
|
Installation conditions |
This equipment is required to be used at an altitude of 1000m or less, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh. 1.Water: the equipment is equipped with upper and lower water ports, you need to connect your own tap water and drainage. 2.Electricity: AC220V 50Hz, must have a good grounding 3.Gas：No 4.Bench: size 800mm×600mm×700mm, load-bearing 200kg or above 5.Ventilation device: not required |
|
|
Main Parameters |
1.Power supply: 220V 50Hz |
|
|
2.Power：550W |
||
|
3.Grinding and polishing disk: Ø225mm |
||
|
4.Grinding and polishing disk speed: 0-72rpm stepless adjustable |
||
|
5.Maximum sample size: Ø50mm (max), thickness ≤15mm |
||
|
6.Weight of upper grinding and polishing disk: 3.5kg |
||
|

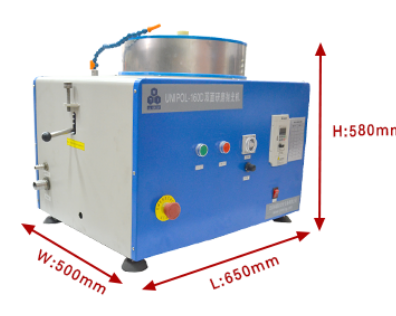

7.Product specifications: -Size: 650mm x 500mm x 580mm; -Weight: 80kg. |
|
|
Standard accessories
|
No. |
Name |
Amount |

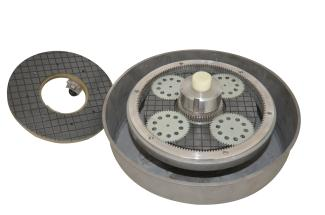

Pictures |
|
1 |
Grinding disks |
1 set |
|
|
2 |
Polishing discs |
1 set |
|
|
3 |
Planetary wheels for dressing disks |
4 pcs |
- |
|
4 |
Planetary wheels for sample carriers (Bakelite) |
8 pcs |
- |
|
5 |
Counterweight rings |
3 pcs |
|
|
6 |
Magnetic discs |
4 pcs |
|
|
7 |
Polishing pads |
4 pcs |
|
|
8 |
Polishing pads (abrasive leather, synthetic leather, polyurethane) |
2 pcs for each |
|
|
9 |
Diamond polishing paste (W2.5) |
1 pcs |
|
Optional accessories
|
No. |
Name |
Functional category |
|
1 |
Load sample gears with different openings can be made according to your needs. |
(Optional) |
