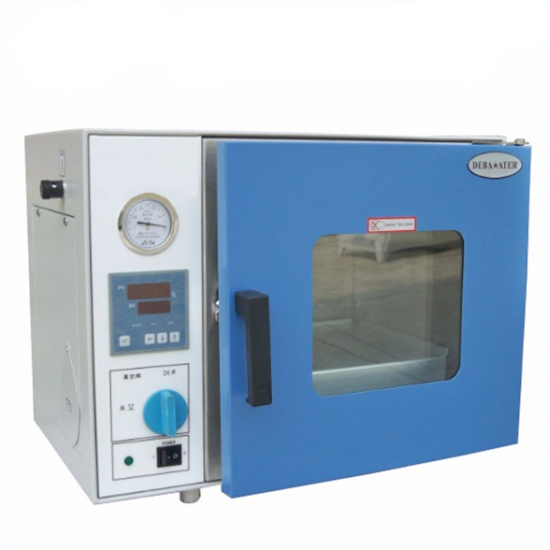

Lab 25L 200C Vacuum Oven with Digital Temperature Controller

JK-DZF-6020 is a middle size vacuum oven with max working temperature 200°C and 25 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

SPECIFICATIONS:

Model	6052	6210	6090	6250	6050		6051	6021	6020	6030A Special for chemistriy	6030B/6050B Special for chemistriy
Electrical Requirements		220V 50Hz		380V 50Hz	220V 50Hz
Input Power		2100W	1400W	3000W	1400W		1400W	500W	500W	500W	400W/700W
Temperature Range	RT	RT+10~250℃					RT+10~200℃		RT+10~250℃		RT+10~65℃
Temperature Control/Stability		0.1℃/±0.5℃
Vacuum Degree	133Pa
Ambient Temperature	+5~40℃
Interior Dimension (mm)W*D*H	415*370*345	560*640*600	450*450*450	700*600*600		415*370*345		300*300*275		320*320*300	320*320*300 415*370*345
Overall Dimension	720*525*535	720*820*1750	615*590*1470	1050*760*910		720*525*535		580*450*450		630*510*460	610*510*490 710*560*550
shelves	2(pcs)	3(pcs)	2(pcs)	3(pcs)		2(pcs)		1(pcs)		1(pcs)	1/2 (pcs)
Chamber Material	Stainless						Rolled sheet		Stainless
