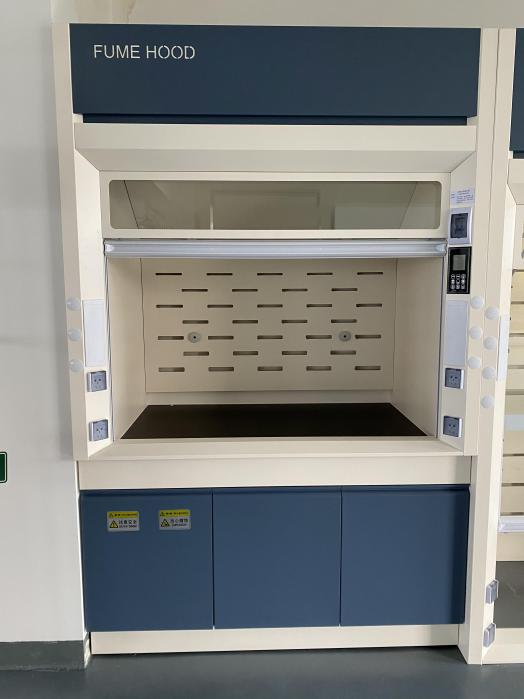

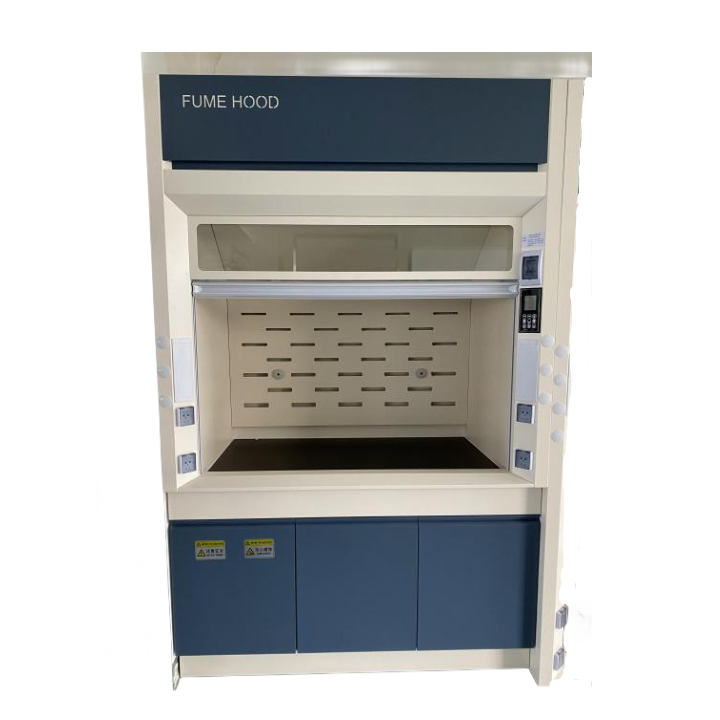

Benchtop Desktop Fume Hood Ventilation Cabinet with LED Lighting

Appearance

Dimension W1200\1500\1800*D850*H2350mm

Material

The main body left and right side panels, front steel plate, back plate, top plate, lower cabinet can be 1.0~1.2mm thick steel plate, imported from Germany 2000W fully automatic CNC laser cutting machine, bending using automatic CNC bending machine one-time one-piece bending molding, the surface of the epoxy powder coating and high temperature curing through the automatic epoxy powder coating in line. The surface is automatically sprayed and cured at high temperature by an electrostatic line.

The inner liner and deflector plate are made of 5mm thick solid-core resistant sheet with good anti-corrosion and chemical resistance. Deflector plate fixing parts are made of PP High-quality material for one-piece molding.

PP folder wrapped on both sides of the mobile window glass, handle PP integrated molding, embedded in 5mm toughened glass, the door opening height of 760mm, free lifting, sliding door up and down the sliding device adopts the pulley steel wire rope structure, stepless arbitrary stay, the sliding door guiding device is made of corrosion-resistant polyethylene chloride material. The sliding door guiding device is made of corrosion-resistant polyethylene chloride material.

The fixed window frame is made of steel plate with epoxy resin spraying, and 5mm thick tempered glass is embedded in the frame.

The countertop is made of (domestic) solid-core physicochemical board (12.7mm thick) resistant to acid and alkali, impact and corrosion, with formaldehyde up to E1 level.

Connections All internal connections need to be hidden and corrosion-resistant, no exposed screws, external connections are chemical-resistant stainless steel parts with non-metallic corrosion resistant parts. External connections are made of chemically resistant stainless steel components and non-metallic materials.

The exhaust outlet is made of a collector hood molded into the roof panel, with a 250mm diameter round hole and a casing connection to minimize gas turbulence.

Accessories

The water line is equipped with an imported disposable molded PP small cup sink, which is resistant to acid, alkali and corrosion. The single-port faucet is made of brass and installed on the countertop of the fume hood. Cabinet on the countertop (water is optional, the default desktop single-port faucet, can be changed to other water according to demand).

circuit control panel adopts liquid crystal display panel (can be set to adjust the speed freely, can be adapted to most of the similar products on the market, supports Motorized damper 6 seconds fast open) 8 keys power, setup, OK, lighting, standby, fan, damper +\- key.

Lighting LED white light quick start type, mounted on the top of the fume hood, long service life.

Sockets are equipped with four 10A 220V five-hole multifunctional sockets. The wiring is made of Astronergy 2.5 square copper wire.

The hinges of the lower cabinet door adopt "DTC brand" 110 degree straight bend hinges, with high service life and easy to disassemble and install.

Other lower cabinet back panel is reserved for maintenance window, which is convenient for troubleshooting, and the left and right side panels are reserved for 4 holes each, which is convenient for installing koak and other facilities.

According to the customer's account of the use of high-temperature furnace operation inside the fume hood glass explosion-proof can be, the countertop for high-temperature ceramic countertops, the Explosion-proof lamps, explosion-proof socket can be used or not. Fan in addition, you can use explosion-proof fan, or not.
