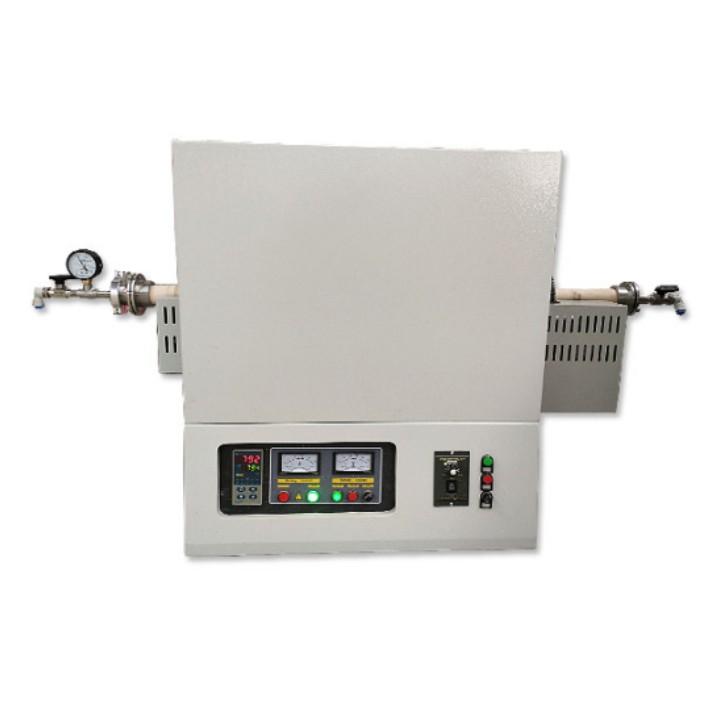

Main parameter

PN: SK2-9-17TPR2

Max.Temp: 1700℃（≤1600℃ Continuous working temp）

Suggested heating rate:5℃/min

Speed: 1-10 r/min

Power supply: AC 220V

Max.power: 9kw

Heating zone: 350mm Corundum tube(Dia 100mm)

1700℃ tube furnace is not split type.

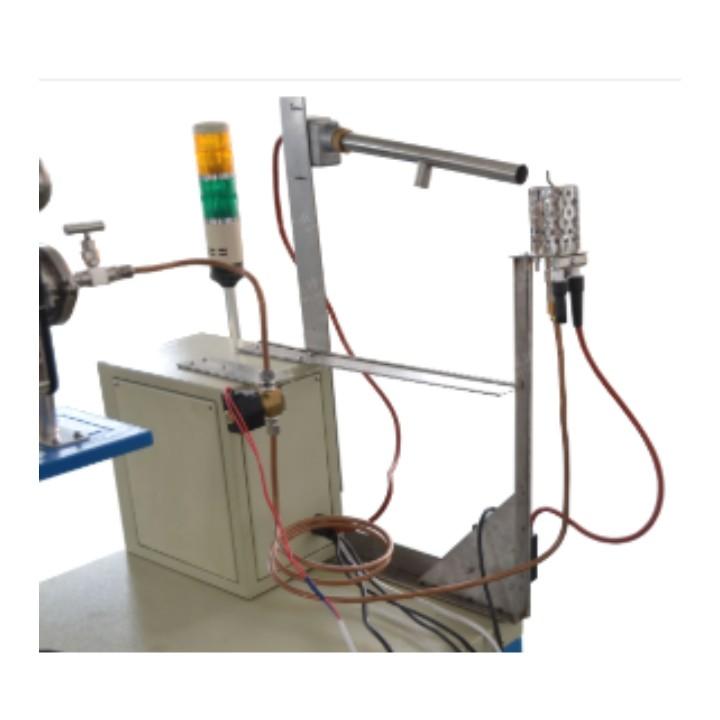

Hydrogen device

Hydrogen content 30%, need to add safety explosion-proof device, including ignition device, flame detection, hydrogen solenoid valve, control cabinet, etc

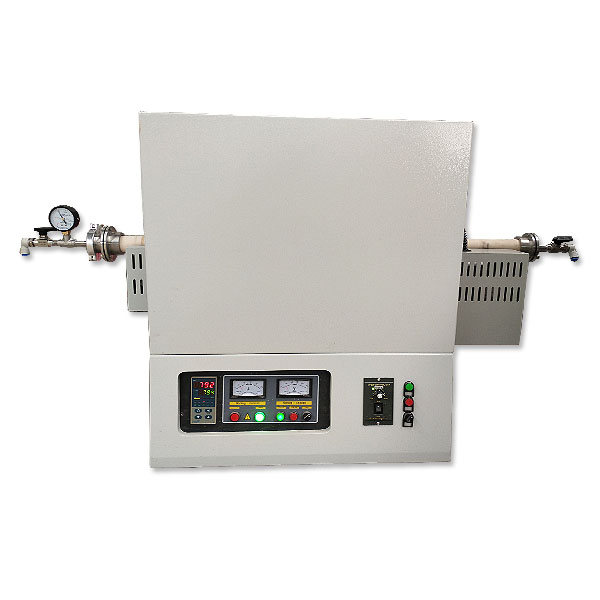

Furnace structure

1.Double layers forced air cooling structure,the temperature is less than 60℃.

2.The furnace material is made of high purity alumina fiber, which can minimize energy loss.

3.All inert gas,mixed gas,nitrogen,carbon dioxide,water vapor,argon gas and oxygen etc.

4.Can be set up one or more air inlet end,each air inlet are equipped with needle valve,flow meter,connect the vacuum table,vent connected air flow,all with needle valve hole.

Installation mode of furnace tube: horizontal, motor can rotate 360 degrees. 0-30RPM( adjustable)

Heating element:

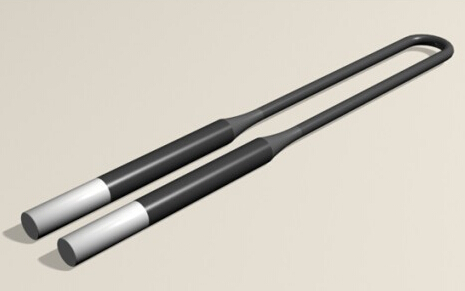

Mosi2 heating element

Thermocouple

B type(overheating and couple breaking protection)

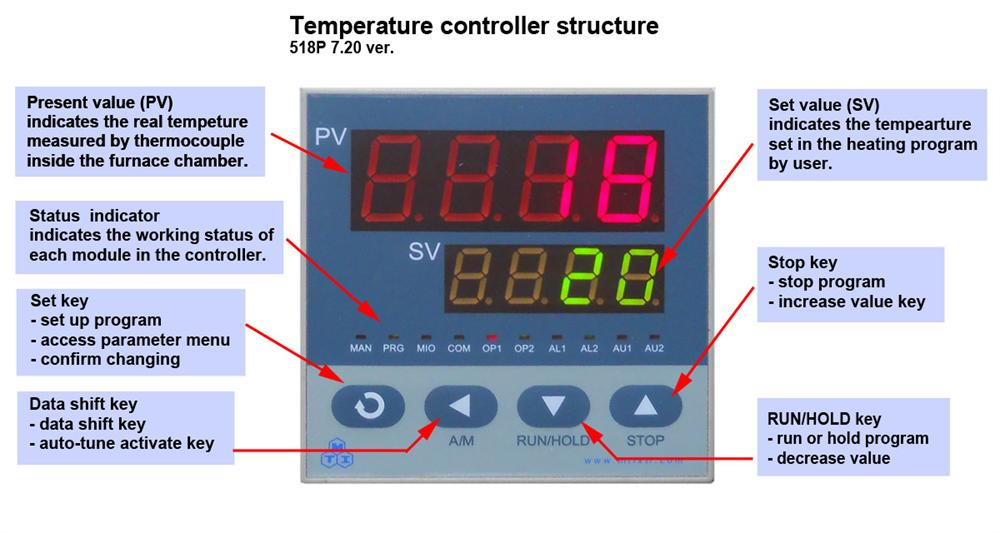

Temperature controlling

PID automatic control via SCR(silicon controlled rectifier)power control with phase angle fired,current limiting resistor.

30 segments “time-temperature curve”can be set arbitrarily.

Pre-stored 8 temperature curve(can increase more curve)

Temperature accuracy: ±1℃

It has the function of indicating over temperature and breaking the couple.

Warm Tips

1.The air pressure in furnace tube should not be higher than 0.02mpa

2.Because of the high air pressure inside the cylinder, the pressure relief valve must be installed on the cylinder when the gas is pumped into the furnace tube. The pressure relief valve range is 0.01mpa-0.1mpa. it will be more accurate and safe in use.

3.The flow of gas into the furnace tube should be less than 200 sccm to avoid the shock of the large cold air flow on the heated alumina tube.

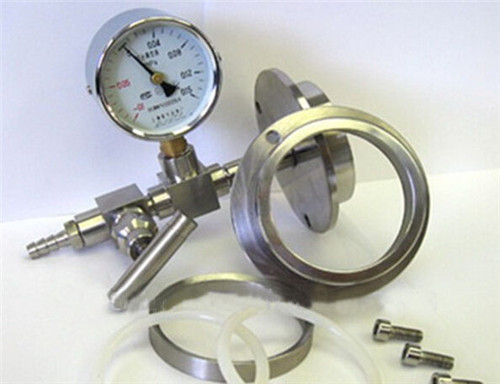

Vacuum flange

Two stainless steel vacuum flanges (mechanical pressure gauges installed on top)

In order to obtain higher vacuum faster, stainless steel bellows are recommended.

In order to obtain a higher air outlet rate a higher vacuum degree is obtained，our standard is KF Flange.

Vacuum gauge

Standard: mechanical vacuum pressure gauge.measuring range: o-0.1Mpa

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard accessories in Package below:

Electric Furnace

1 set

High temperature gloves

1 pair

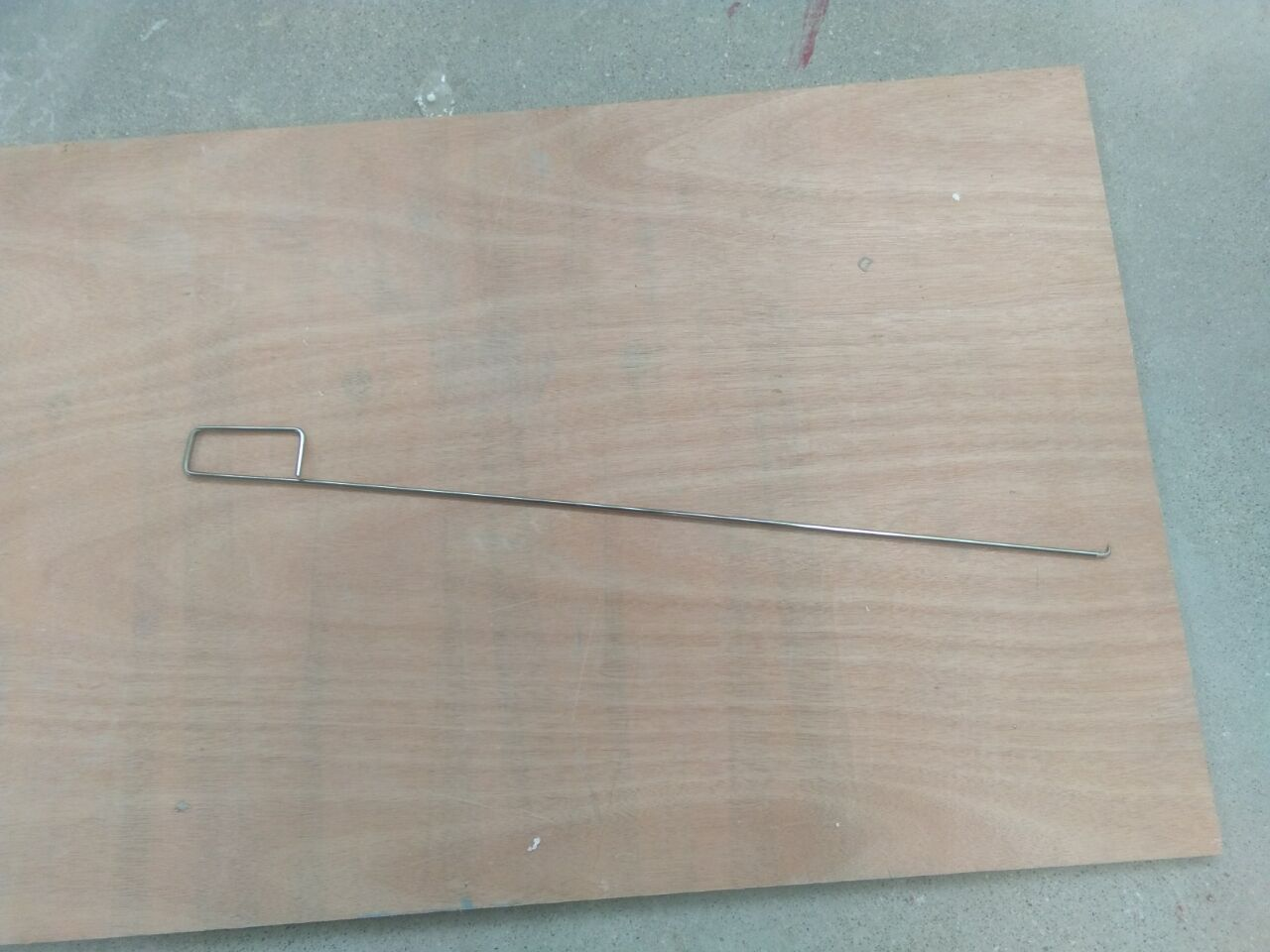

Furnace hook

1 pc

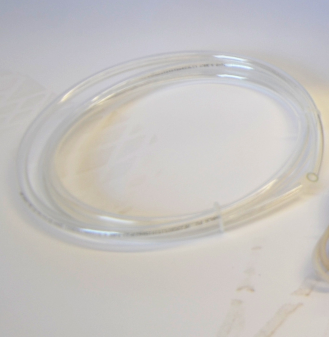

Vent pipe

1 pc

Vacuum pump

1 set

Flange

2 pc

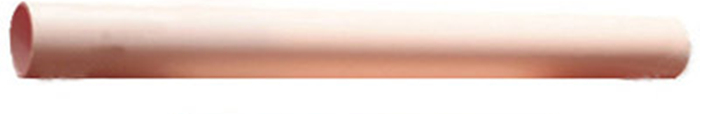

Alumina Tube

1 pc

Tube Plugs

2 pc

Silicon rubber sealing ring

2 pc

Mosi2 heater

2 pc

User manual

1 book
